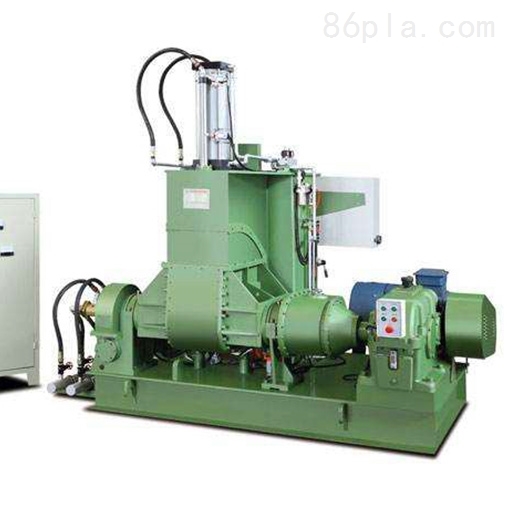

Brief Description:During the operation of an industrial mixing and compounding machine, the two rotors rotate relatively, gripping the material from the feed port and bringing it into the roll gap where it is subjected to squeezing and shearing by the rotors. After passing through the roll gap, the material hits the sharp edge of the bottom plunger and is divided into two parts, which then return to the top of the roll gap along the gaps between the front and rear chamber walls and the rotors.
Industrial Mixing and Compounding MachineFeatures:
The temperature control during the mixing process is the most precise. All the internal mixer components that come into contact with the material are supplied with cooling water, and the flow rate and volume are precisely controlled by the temperature control system, ensuring that the temperature variation is within ±3℃.
2. The leakage prevention effect during the mixing process in the mixing chamber is the best in the country, with a powder leakage prevention effect 2-3 times better than domestic products. It uses an alloy ring and sealing ring for sealing, which can automatically compensate and also be manually adjusted, completely preventing any powder leakage. The Taiwan Gaoshan sealing ring has a semi-circular structure, making it easy to replace.
3. The mixing chamber and mixing shaft are made of wear-resistant alloy materials processed through multiple treatments, making them resistant to wear and breakage.
4. The gearbox is manufactured by a domestic gearbox manufacturing Co., Ltd., specifically designed as a hard-faced reducer for the internal mixer, featuring low vibration, low noise, and smooth transmission.
5. The electrical control system is humanely designed with increased electrical capacity for easy operation and incorporates various maintenance systems.
Industrial Mixing and Masticating MachineOperation:
1. Turn on the power sequentially. If heating is required, set the temperature and observe whether the heating is normal. If water cooling is used, open the inlet and outlet water valves to ensure normal water flow.
2. Clean the internal mixer chamber, and do not leave any hard objects such as wire. Check the oil levels and lubrication status of all gears, engine oil, and grease. Pay special attention to the oil level in the three-in-one oil cup, which should not be less than half full, and regularly observe changes in the oil level. No oil consumption or rapid oil consumption are both abnormal (adjust the knob on the three-in-one unit). The gear oil for a new machine should be replaced after six months. Moving parts should be lubricated at least once a week, and when adding oil, it should not exceed half the height of the oil gauge, otherwise, it may cause oil leakage.
3. Prepare the materials and turn on the power and air pressure. Raise the pressure cover to the upper limit position, then start the main motor. After the main motor has been running for half a minute, add the prepared materials, then lower the pressure cover to begin the mastication of the materials.
4. If a color change is needed, please pour in cleaning material or raw material cleaner, then use a broom or wire to clean the old material from the gaps between the rotor shafts in the mixing chamber.
5. During the mastication process, the automatic or manual mode can be selected based on the physical properties of the material. Materials that are too hard should not be processed in excessive amounts or sizes, as this could cause the machine to lock up or damage the main motor.
6. After the material is well mixed, first raise the pressure cover, then flip the mixing chamber. Once in position, pour out the material, then return the mixing chamber to its original position, and add new material for the next mixing cycle.
7. When stopping production, first turn off the power for each function in sequence, then shut down the main power supply, and subsequently clean the mixing chamber quickly, as well as sweep and clean off any dust.
