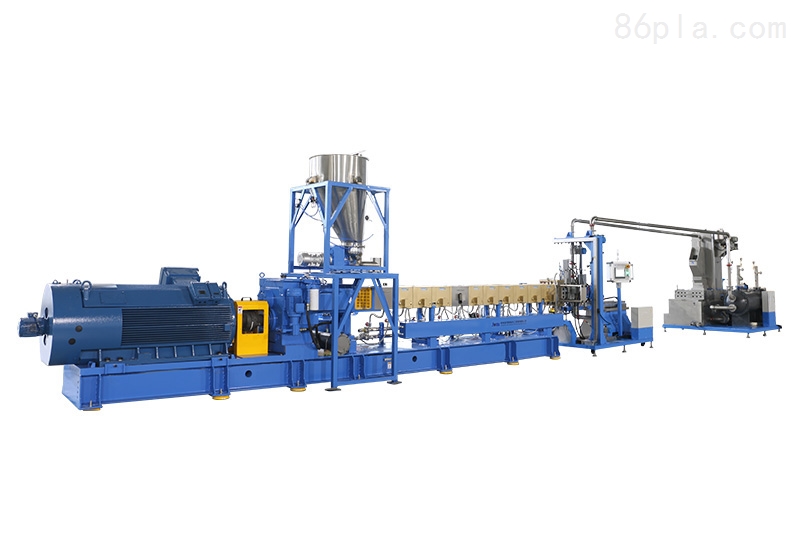

Brief Description:Industrial degradable extrusion pelletizing equipment is mainly used for coloring polymer materials, primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid color masterbatch.
All lubrication points should be injected with clean lubricating oil at the specified intervals and in the specified quantities.
2. Equipment maintenance: Regular cleaning, adequate lubrication, proper use, and reasonable maintenance are essential for maintaining long-term stability of the equipment.
3. At the end of each shift, the dust, oil, water, and adhered materials on the surface of the equipment should be wiped clean (e.g., chains, yarn cutting knives, pressure rollers, and feed hoppers).
4. Regularly check the working condition of each air line, ensuring that the air lines are unobstructed and the air pressure is stable (adjusted within the set pressure range), and promptly address any leaks or pressure drops.
5. Electrical equipment should be inspected regularly, paying attention to the operational reliability of all interlock and safety mechanisms, and checking for any loose connections at the wiring terminals. Before inspecting the electrical equipment, the main power supply to the equipment should be turned off. The grounding of the electrical equipment must be in good condition. Electric motors should always be kept clean and dry, and dust should be removed periodically.
First, during the use of this equipment, we must check the material being poured in. The material should not contain any iron impurities, as these can cause damage to the machinery or excessive wear.
2, Idle Adhesive Shaft
Secondly, when using the equipment, we must also prevent the machinery from running idle without any load, as idling can cause the shaft to heat up, leading to clumping and adhesion of various materials. During operation, we need to inspect and select the materials being fed in, constantly monitor whether the machinery is in an idle state, and promptly remove any impurities mixed in the materials. This way, we can extend the service life of the machinery.
After the temperature stabilizes, the machine can be started. Before starting, the bolts of the die head and the extruder flange should be tightened again to eliminate the difference in thermal expansion between the bolts and the die head. The bolts of the die head should be tightened diagonally and with even force. When tightening the nuts around the die head flange, ensure they are uniformly tight; otherwise, material leakage may occur. During operation, select the "Prepare to Start" button, then press the "Start" button, and gradually adjust the screw speed by turning the speed control knob, slowly initiating the screw rotation. Gradually increase the speed while feeding a small amount of material. While feeding, closely monitor the changes in the main motor's current meter and various indicator gauges, ensuring that the screw torque does not exceed the red mark. No one should stand in front of the die before the plastic profile is extruded, to avoid injury due to bolt breakage or initial moist foaming. After the plastic is extruded from the die, it needs to be cooled slowly, and these devices along with the sizing mold should be moved, then adjusted according to the readings on the control instruments.
Precautions for Use:
1. Always pay attention to the changes in the body temperature. When the strands no longer stick to a clean hand, the temperature should be increased immediately until the strands stick to the hand, which is considered normal.
2. If the bearing part of the gearbox feels hot or is accompanied by noise, stop the machine for timely maintenance and add lubricating oil.
3. If the bearing areas at both ends of the main unit's bearing housing become hot to the touch or produce unusual noises, stop the machine for inspection and apply grease. During normal operation, grease should be added to the bearing housing every 5-6 days.
4. Pay attention to understanding the operating patterns of the machine; for example, the temperature and rotational speed. Adjustments should be made promptly according to the situation.
5. When the machine body is operating unstably, attention should be paid to checking whether the coupling fit clearance is too tight, and it should be adjusted to be looser in time.
