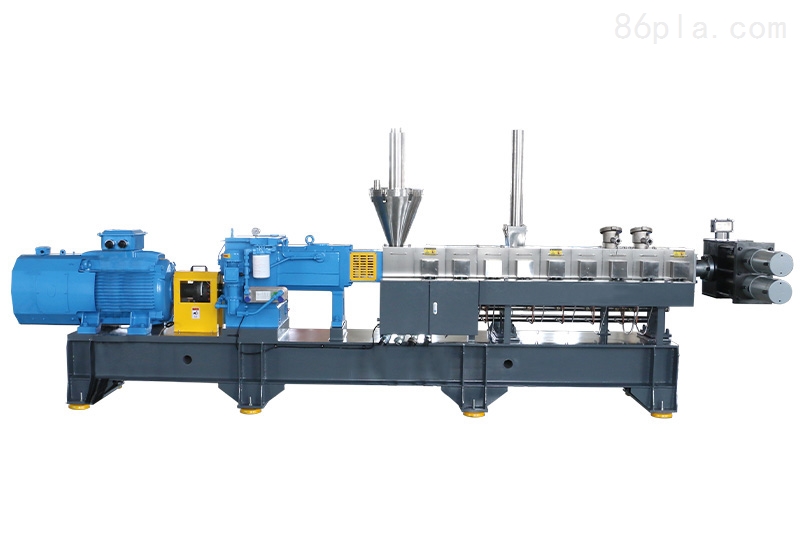

Brief description:Industrial color masterbatch granulators are mainly used for coloring polymer materials, primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid masterbatch.
Industrial color masterbatch pelletizing machinePrecautions
1. Before starting, first heat for about 40 to 50 minutes until the temperature rises to a point where it is easier to pull the motor V-belt by hand. Pull in the normal working direction 8 to 10 times, and continue heating for about 10 more minutes; heating should be continued at this time because additional heat is needed for normal production. Adjust the temperature according to the different properties of the plastic.
2. Before the equipment is put into normal operation, the stability of the mechanical temperature should be maintained, and it should not be kept at a high or low level.
3. If the feeding is uniform, the machine's feeding speed should match the conveying speed; otherwise, it will directly affect the quality and output of the plastic pellets.
4. Before stopping, all the plastic inside the granulator screw must be emptied and cleaned.
5. When the main unit is shut down, the power should be disconnected, and before the next use, the head wire plug must be disassembled and preheated separately.
Industrial color masterbatch pelletizing machineMaintenance:
1. The plastic pelletizing machine should first be placed in a well-ventilated area to ensure that the heat generated by the motor can dissipate, thereby extending its lifespan.
2. Observe the gear oil of the reducer daily, and the oil level should be maintained at the midline of the oil window. Lubricating oil should be regularly added to the bearings to ensure lubrication between them; check the cooling water of the reducer daily, and during operation, the cooling water of the reducer should be in a slow flowing state (the flow rate and pressure must not be too high to avoid detaching the copper weld of the cooling tubes inside the box).
3. Regularly check the screws; after using a new plastic pelletizing machine for 1 hour, use tools to tighten the screws of the moving and fixed blades to enhance the fixation between the blades and the blade holder.
4. To ensure the sharpness of the cutting edge, the blade should be regularly checked and maintained to keep it sharp, thereby reducing unnecessary damage to other components caused by a dull or chipped blade.
5. When replacing the blades, the gap between the moving blade and the fixed blade: for 20HP and above, the gap can be appropriately increased as the recycled material gets thinner.
6. Before the second start, the remaining debris in the machine room should be cleared to reduce the starting resistance;
7. The inertia cover and pulley cover should be opened regularly to clean the dust outlet below the flange, as the powder discharged from the plastic pelletizing machine room can enter the shaft bearings.
8. The plastic pelletizing machine should be kept well grounded.
