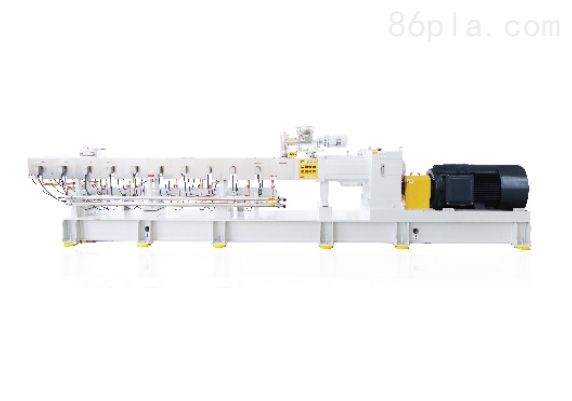

Brief description:The industrial co-rotating twin-screw extruder consists of several parts including the drive unit, feeding device, barrel, and screws. The functions of these components are similar to those in a single-screw extruder, as shown in Figure 1. The difference from a single-screw extruder is that the twin-screw extruder has two parallel screws placed within a barrel with an "∞" shaped cross-section.
Co-rotating Twin-screw ExtruderComposition: Transmission section and extrusion section.
1. The transmission part provides torque to the screw, and a strong torque output is the guarantee for the efficient operation of the twin-screw extruder; the extrusion part mainly consists of the barrel, screw elements, and core shaft, where the material completes plastification, mixing, and extrusion.
All of its technological advancements are also concentrated in these two parts, serving as the hallmark of the updates and iterations of the twin-screw extruder.
Compared to other models, one of its major features is the difference in the transmission system. It requires evenly distributing power to two screws within a confined space, which is known as torque distribution technology. Different torque distribution technologies determine the load capacity of the gearbox and even directly affect the lifespan and performance of the entire machine.
The extrusion section is mainly composed of the barrel, screw elements, and core shaft, serving as the functional area for plasticization and mixing in a twin-screw extruder. The screw clearance, volumetric capacity, rotational speed, strength of the core shaft, and the lifespan of the screw elements are key indicators for evaluating the performance of the extrusion section of a twin-screw extruder.
Common Issues with Industrial Co-rotating Twin-screw Extruders:
The main motor cannot start
1. Cause of occurrence:
Start-up procedure error.
(2) There is an issue with the main motor thread, communication failure
(3) The interlock device associated with the main motor is activated.
2. Treatment methods:
(1) Check the procedure and restart the machine in the correct sequence.
(2) Check the main motor circuit.
(3) Check if the lubricating oil pump has started, and inspect the status of the interlock devices related to the main motor; the motor cannot be started if the oil pump is not on.
(4) Check if the emergency button has been reset.
II. Unstable main motor current
1. Cause of occurrence:
Feeding is uneven.
(2) A certain heater has malfunctioned and is not heating.
(3) The screw adjustment shim is incorrect, or the phase is wrong, causing component interference.
2. Treatment Methods:
(1) Check the feeder and troubleshoot.
(2) Check if all heaters are working properly, and replace them if necessary.
(3) Check the adjustment pad, pull out the screw to inspect for any interference.
III. The starting current of the main motor is too high
1. Cause of occurrence:
Insufficient heating time, high torque.
(2) A certain heater is not working.
2. Treatment methods:
Before starting, manually turn the machine. If it does not turn easily, extend the heating time or check if each section of the heaters is working properly.
