Brief description:Industrial plastic black masterbatch granulator is mainly used for coloring polymer materials, and it is primarily categorized into black masterbatch, white masterbatch, color masterbatch, and liquid masterbatch.

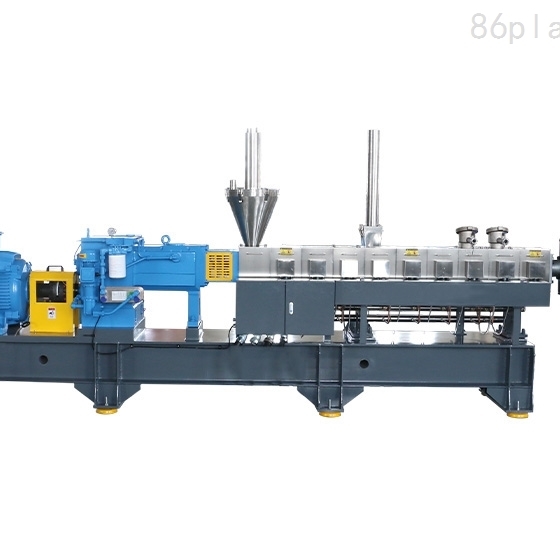

Industrial plastic black masterbatch pelletizing machineFeatures:
This production line integrates mixing, conveying, feeding, and extrusion into one, achieving automated continuous operation with high production efficiency.
2. Compact structure, small footprint and space, can be installed flat.
3. The production process is divided into segments with closed-loop temperature control, where the internal mixer, feeder, and extruder each have their own heating and cooling systems, controlling their respective temperatures according to the process requirements.
4. The feeding mechanism adopts a dual-propeller design, featuring strong material intake capability. It is particularly suitable for extruding and pelletizing chunky materials directly from the internal mixer.
5. The barrel and screw are both made of high-quality 38CrMoAIA alloy steel, which has undergone nitriding treatment, resulting in high hardness, wear resistance, and corrosion resistance.
6. The die head adopts a manual screen changing or quick non-stop screen changing mechanism to improve production efficiency.
7. The electrical control system adopts advanced PLC control technology, consisting of multiple inverters, enabling high-precision, wide-range speed adjustment for feeding, extrusion, cutting, and other multi-machine operations according to process requirements. It also features comprehensive process interlocks and audio-visual fault alarms, ensuring a complete and reliable control system.
Industrial plastic black masterbatch pelletizing machinePrecautions:
1. Before starting, heat for about 40 to 50 minutes first, raising the temperature to a state where it is easier to pull the motor's V-belt by hand. Pull in the normal working direction 8 to 10 times, and continue heating for about 10 more minutes; at this time, continue heating because normal production requires continuous heat supplementation; adjust to different temperatures according to the varying properties of the plastic.
2. Before the equipment is put into normal operation, the mechanical temperature should be kept stable and should not be maintained at either a high or low level.
3. If the feeding is uniform, the machine's feeding speed should match the conveying speed; otherwise, it will directly affect the quality and output of the plastic pellets.
4. Before stopping, all the plastic inside the granulator screw must be emptied and cleaned.
5. When shutting down the main unit, the power should be disconnected, and before the next use, the head wire plug must be disassembled and preheated separately.
Maintenance:
Implementing Equipment Management Systems: Many workers are not very conscientious about the maintenance and upkeep of the equipment, as these devices do not belong to them personally. Therefore, there aren't many people who take it seriously. Thus, the company must strengthen its equipment management systems, as regulating behavior through policies is highly effective.
2. Strengthen the production management system: This is very important, as the production management system has a significant impact on a company. Clearly defining the responsible parties and ensuring accountability at all levels are the prerequisites and foundations for fundamentally addressing the difficulties in implementing equipment maintenance and upkeep systems. However, this relies on the implementation by each grassroots team.
3. It is necessary to improve the quality of employees: The quality of employees is also very important for equipment maintenance and upkeep. Some equipment is highly specialized, with complex structures and high technical requirements. Operators without the corresponding professional knowledge and skills are not competent for the job.
