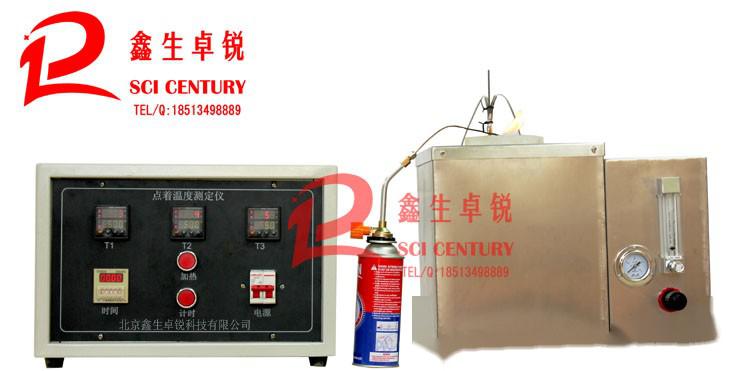

DW-04 typeignition temperature testerGB/T4610-2008GB/T9343-2008
Product introduction:
The new standard ignition temperature tester is developed and produced by Beijing Xinsheng Zhuorui Technology Co., Ltd. Designed and made according to the technical indicators and requirements specified in the national standard GB/T 4610-2008. The device releases combustible gas decomposed from the material under specified test conditions, ignited by an external flame and burned for a certain period of time, thereby measuring the low temperature of the material.
It is one of the methods specified by national standards to assess the combustion performance of materials. The test results are applicable for relative comparison between materials.
Technical parameters:
The surface of the instrument is sprayed with paint, beautiful and generous;
Furnace tube inner diameter100mm±5mm,length240mm ±20mm,ceramic tube with temperature resistance not less than750℃;
Inner tube inner diameter75mm±2mm,length240mm ±20mm,temperature resistance not less than750℃;
Stainless steel container size: inner diameter9mm, height48mm;
1, butane ignition device inner diameter0.8mm±0.1mmnozzle, flame height10mm-20mmcan be adjusted arbitrarily;
2, the copper ingot furnace can be kept constant at any temperature between150-450℃;
3, equipped with built-in fan to provide air source, and equipped with imported flow meter to accurately control gas flow;
4, the insulation layer is composed of mineral wool with thickness greater than60mm, wrapped in stainless steel;
5,3 imported thermocouples detect the temperature inside the furnace and the temperature of the sample;
6, the sample container is made of stainless steel;
7, timer accuracy0.1s;
8, automatic heating program;
9, ambient temperature:room temperature to40℃;
10, ambient humidity: ≤75%;
11, working voltage:AC 220 V±10V 50HZ; power consumption:600W;
12, temperature control accuracy: ±2℃, can be adjusted only between150℃~450℃;
13, display accuracy: ±0.5℃;
14, equipment dimensions: test furnace (0.4×0.4×0.5)m;
15, equipment weight:20 Kg;
Compliance with standards: For more specific technical and after-sales issues, please contact Q-2028696743/ 18513498889
GB/T 4610-2008 Plastics - Determination of the ignition temperature using a hot air furnace
GB/T 9343-2008 Plastics - Test methods for combustion performance - Determination of flash ignition temperature and spontaneous ignition temperature
ASTM D 1929-1996 Test method for ignition performance of plastics
