Horizontal Vertical Burning Tester PMSC-3 Type Foam Horizontal Vertical Burning Tester

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
```html

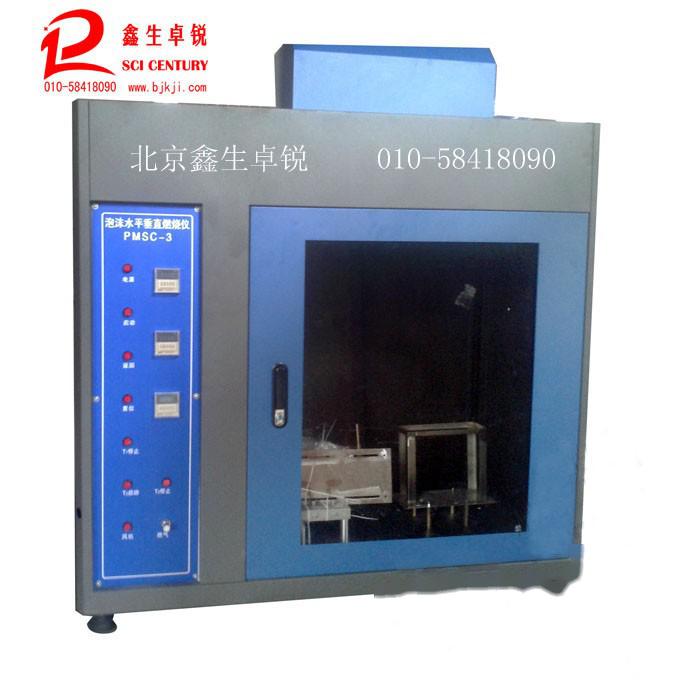

PMSC-3 Foam Horizontal and Vertical Combustion Tester

I. Scope of Application

Applicable for evaluating the horizontal combustion performance of small foam plastic samples with a density of less than 250kg/m3 under a small flame according to ISO 845:1985. Produced by Beijing Xingsheng Zhuorui Instrument Equipment Co., Ltd.

II. Main Technical Parameters

1. Ambient Temperature: -10℃ to 30

2. Relative Humidity: ≤85

3. Power Supply Voltage and Power: Beijing Xingsheng Zhuorui Instrument Equipment Co., Ltd. 220V±10 50HZ Power less than 100W

4. Microcontroller control, automatic timing reading.

5. Bunsen burner inner diameter: 9.5mm±0.3mm The Bunsen burner can tilt within a range of 0-45°

6. Blue flame height of the Bunsen burner: 15mm-100mm adjustable, equipped with a flame height ruler

7. Vertical adjustment distance of the sample holder: ≤100mm Horizontal adjustment distance of the sample holder: ≤70mm

8. The horizontal sample holder can be adjusted to 90° to hold textile samples (optional)

9. Automatic ignition time of the Bunsen burner: freely set

10. Gas Source: Liquefied Petroleum Gas

11. Dimensions: 1160mm*600mm*1300mm

III. Packing List

Beijing Xingsheng Zhuorui Instrument Equipment Co., Ltd.
Phone: 18513498889
QQ: 2028696743
Phone: 010-58418090
Fax: 010-58043777
Website: www.bjkji.com
Address: No. 158, Science and Technology Park, Haidian District, Beijing
Main Projects: Oxygen index testers / horizontal vertical combustion testers / combustible material testing furnaces / non-combustible material testing furnaces / smoke density testers for building materials / large plate fireproof coating testers / initial drying crack resistance testing devices / electronic testing machines / high and low temperature test chambers / low temperature freeze-thaw test chambers / constant temperature and humidity chambers / cigarette paper smoldering performance testers, hardness testers, thickness gauges, concrete instruments, cement testing instruments, mortar testing instruments, slurry testing instruments, geotechnical testing instruments, asphalt testing instruments, highway aggregate instruments, waterproof material instruments, highway rock instruments, pavement testing instruments, pressure testing machine maintenance room instruments, and laboratory consumables, etc.

```
Product Consultation
Supplier
Beijing Xinsheng Zhuorui Technology Co., Ltd.
location
China Beijing
Main products
Oil fuel calorific value tester, comprehensive combustion tester for toys, thermal conductivity meter, safety net flame retardant performance tester, horizontal and vertical combustion test instrument, oxygen sensor, building materials combustion calorific value tester, biomass fuel calorific value tester, initial drying cracking resistance tester, 45-degree combustion test instrument, tracking test for leakage current, building materials combustion calorific value test instrument, oxygen bomb combustion test device, microcomputer flash point tester, smoke density tester, glowing wire test instrument, electrical conduit flame retardant testing instrument, building materials non-combustibility test furnace, combustion performance testing equipment, flame retardant wood combustion test device, oxygen index tester, fireproof coating testing instrument, vertical combustion tester for wires and cables, vertical combustion tester for textiles, flooring materials combustion test device, alcohol lamp combustion test instrument, ash melting point tester, needle flame tester, ignition temperature tester, petroleum trace moisture meter, building materials difficult-to-burn test furnace, building materials combustibility test furnace.
About Us
Beijing Xinsheng Zhuorui Technology Co., Ltd. (short for Zhuorui Technology), formerly known as Beijing Zhuorui Instrument Equipment Factory, is a professional manufacturing entity integrating scientific research, development, manufacturing, sales, and service. With a strong technical foundation and emphasis on independent development, the company actively adopts advanced domestic and international technology standards, seeking to promote collaboration and complementarity with universities, colleges, and research institutions to achieve a high starting point in new product development. Under the guidance of relevant authorities and experts from research institutes, the company's products are continuously improved and updated. To facilitate purchases and sales across the country, a production base has also been established in Nanjing, creating a north-south synergy. The company is a specialized manufacturer of combustion performance testing instruments, with an experienced professional technical team. Through cooperation with multiple research units and universities in Beijing, it has developed into a composite company primarily producing combustion and flame retardant instruments. The company's business philosophy is to provide accurate and reliable testing instruments and equipment for China's scientific research, industrial manufacturing, geological exploration, and road construction. With an international team and leading European and American technologies, as well as excellent product quality, reasonable prices, and superior after-sales service, the company has won praise from many new and old customers, providing professional and reliable instruments, equipment, and solutions, and establishing extensive and friendly cooperative relationships. Its products are not only sold domestically but also exported to regions such as the United States, Japan, the Philippines, Tanzania, Thailand, Hong Kong, and Taiwan. To meet the needs of future development, the company maintains long-term strategic partnerships with universities such as the University of Science and Technology of China, Beijing Institute of Technology, Nanjing Tech University, and Southeast University, regularly organizing learning exchanges and sharing research results. The company has a professional team with long-term experience in combustion control technology research and practical experience, fully mastering core proprietary technologies. In particular, the company leads the industry in intelligent oxygen index instrument automatic computer control, single burning item test apparatus for building materials, cable and optical cable combustion test apparatus, building component test furnace, infrared smoke concentration measurement, surface burning of building materials, and combustion performance testing and control technology for soft furniture and components. Some instruments can completely replace imported equipment. The company has a complete R&D center, processing and testing base, a fast marketing network, and an after-sales service system. The company's business division produces, sells, and operates concrete instruments, cement testing instruments, mortar testing instruments, mud testing instruments, soil testing instruments, asphalt testing instruments, highway aggregate instruments, waterproof material instruments, highway rock instruments, pavement testing instruments, pressure testing machine curing room instruments, and laboratory consumables, among hundreds of other products. These have been widely used in quality inspections in the fields of building materials production, construction, road and bridge construction, water conservancy projects, machinery, transportation, petroleum, and chemicals. Zhuorui Technology is committed to providing professional and precise instrument products for universities, enterprises, and organizations, and offers one-stop services including installation, commissioning, function improvement, and maintenance of instruments and equipment. The customer base covers various fields such as manufacturing, research, education, building materials, energy, and communications. The company has established long-term cooperative relationships with domestic and foreign testing instrument manufacturers, acting as an agent for instruments and equipment from manufacturers in Beijing, Tianjin, Shanghai, Wuxi, and Jinan, strictly controlling quality and offering more favorable prices! New Zhuorui! New journey! We warmly welcome friends from all walks of life, both old and new, to visit and guide us. We are willing to work hand in hand with users, leveraging cutting-edge technology, high-quality products, and comprehensive after-sales service to create a glorious future together. We strive to build a powerful brand enterprise!
