Horizontal Pipe Shredder

Plastic Auxiliary Machinery-Crusher/Shredder/Grinder/Pulverizer-Single-Shaft Shredder
Expand

Product Content

Category
Plastic Auxiliary Machinery-Crusher/Shredder/Grinder/Pulverizer-Single-Shaft Shredder

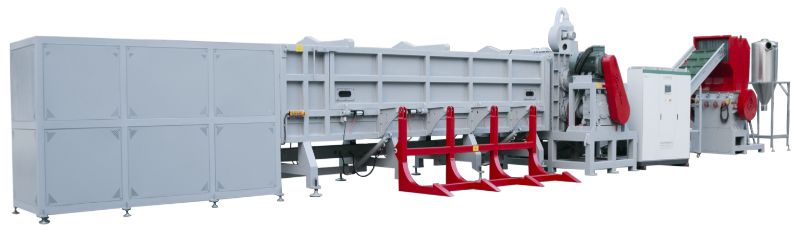

卧式管道撕碎机组

卧式撕碎机

卧式撕碎机


Horizontal pipe shredder video

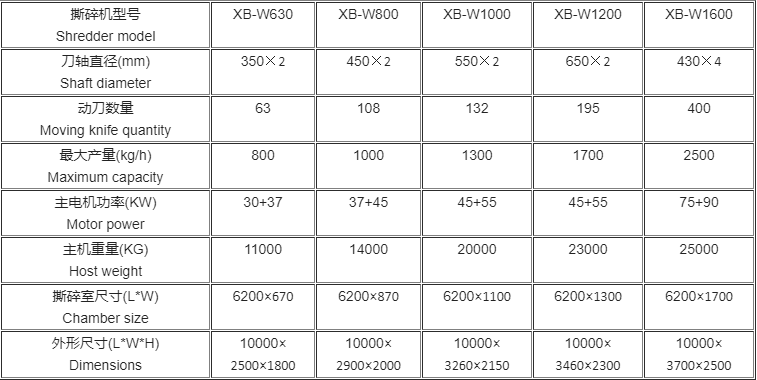

Horizontal Pipe Shredder Parameters

卧式管道撕碎机参数

Shredder model

Shredder model

XB-W630

XB-W800

XB-W1000

XB-W1200

XB-W1600

Knife shaft diameter (mm)

Shaft diameter

350×2

450×2

550×2

650×2

430×4

Number of moving blades

Moving knife quantity

63

108

132

195

400

Maximum Output (kg/h)

Maximum capacity

800

1000

1300

1700

2500

Main motor power (KW)

Motor power

30+37

37+45

45+55

45+55

75+90

Host weight (KG)

Host weight

11000

14000

20000

23000

25000

Shredding chamber size (L*W)

Chamber size

6200×670

6200×870

6200×1100

6200×1300

6200×1700

Overall dimensions (L*W*H)

Dimensions

10000×
2500×1800

10000×
2900×2000

10000×
3260×2150

10000×
3460×2300

10000×
3700×2500

Horizontal pipe shredder purpose

  • Large Diameter PE/PVC Pipes
  • Large-sized PP/PC sheets

Characteristics of Horizontal Pipe Shredder

  • The horizontal shredder adopts a dual-shaft drive system, with both shafts operating synchronously. Compared to a single-shaft system at the same power, this significantly improves production capacity and shredding efficiency.
  • The built-in hydraulic system pushes the material towards the main shaft for shredding, working in conjunction with a high-precision system and a feed hopper balancing system to ensure a smooth shredding process, reducing vibration and noise.
  • The electrical control system, based on safety and ease of operation, is equipped with protective functions such as one-button start, emergency stop, and overload protection to ensure the stability of machine operation and maintain high efficiency.

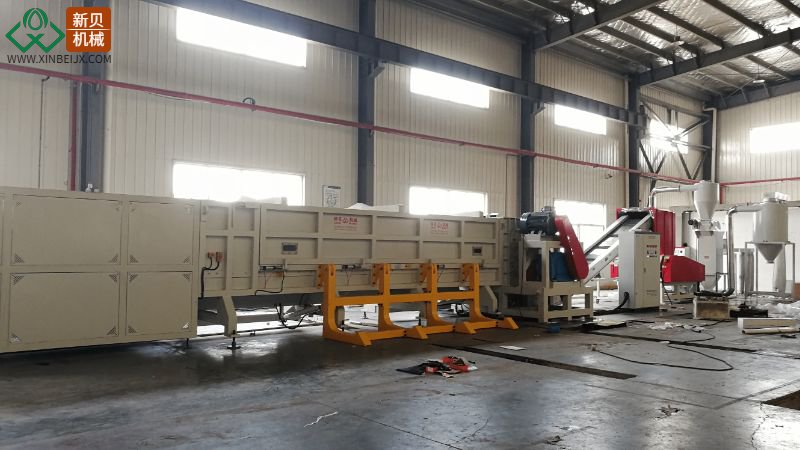

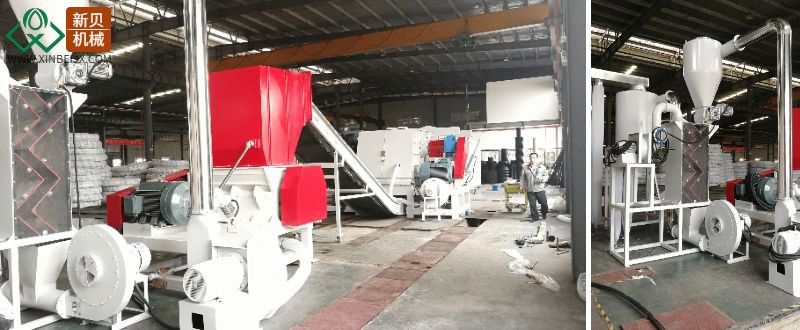

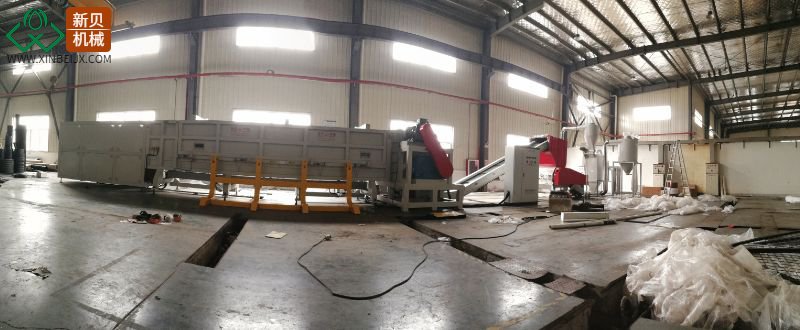

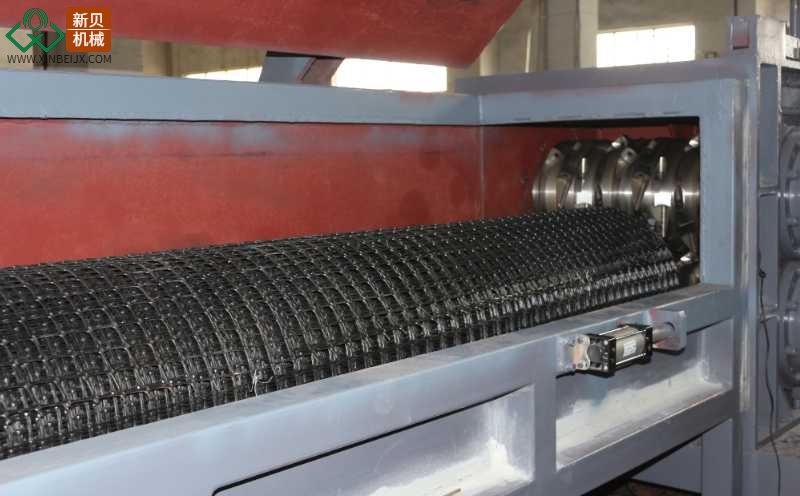

Horizontal pipe shredder actual photo

卧式管道撕碎机组

卧式管道撕碎机组

卧式管道撕碎机组

卧式管道撕碎机组
