【High Pressure Pump】Introduction
Product Overview:
Two-phase flow pulp pump, utilizes the principles of “relative suction and relative blockage” from two-phase flow theory for hydraulic design, ensuring that the hydraulic performance of the pump's flow components conforms to the laws of solid-liquid two-phase flow. This reduces the erosion and wear of the pulp on the flow components, greatly improving the pump's operational efficiency and service life. This series of pumps has the following significant features:
1, High efficiency and energy-saving: Operating efficiency is on average3-10 percentage points higher than that of ordinary pulp pumps, achieving energy savings and consumption reduction of15-30%
2, Good cavitation performance and long service life: Actual service life can be improved by2-3 times compared to ordinary pulp pumps;
3, High concentration and no blockage: Can transport pulp with a concentration of up to6%;
4, Reasonable structure and easy maintenance: The pump head has a front and rear opening structure, allowing for maintenance without disassembling the piping; simply move the motor backward to disassemble and maintain the pump.
This series of pumps is particularly suitable for the following industries:
1, Papermaking industry: Used for circulating transport, lifting, and pressurizing media in processes with pulp concentrations below6%;
2, Sugar industry: Used for transporting syrup with concentrations below4% and viscosity below150mm2/s;
3, Urban wastewater industry: Used for circulating transport, lifting, and pressurizing media in wastewater treatment processes.
3DP series high pressure reciprocating pumps are widely used in environmental protection, food, pharmaceuticals, chemicals, petroleum, papermaking, mining, and other fields. They are key equipment for urban cleaning, engineering cleaning, chemical process dosing, carbon dioxide dosing, carbon dioxide transport, drying, oilfield water injection, oil transport, seawater desalination, water treatment, and other engineering needs. This product features advanced technical performance, compact structure, small size, and high efficiency. It is easy to maintain, safe and reliable to use, and aesthetically pleasing.

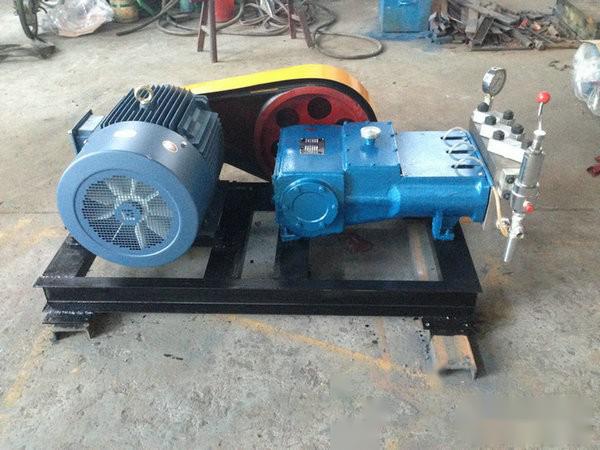

Model: Horizontal three-cylinder high pressure pump Power: Greater than101kW
Pressure: High70MPa Flow rate:17-789L/min
★Application:
The pump is suitable for oil, chemical, and fertilizer industries as a process pump; high pressure water dephosphorization in metallurgy and steel mills; high pressure water cleaning and descaling in construction, shipbuilding, sugar, papermaking, and chemical industries; oilfield water injection, boiler feed water, power source for hydraulic machinery; as well as departments requiring high-pressure fluids in food and pharmaceutical industries. The medium to be transported is fluid without solid particles.
【High Pressure Pump】Inquiry http://www.jdyqx.com/ShowProducts/?24-1.html
Wuxi Jindayuan Cleaning Equipment Factory specializes in the production and processing of high pressure cleaners, high pressure pumps, high pressure plunger pumps, high pressure reciprocating pumps, high pressure cleaning pumps, pressure testing pumps, injection pumps, metallurgical dephosphorization pumps, desulfurization pumps, ammonium carbamate pumps, dock cleaning pumps, marine fire pumps, piston high pressure diaphragm pumps, liquid carbon dioxide filling pumps, and ammonia pumps, and has a complete and scientific quality management system.
Wuxi Jindayuan Cleaning Equipment Factory's integrity, strength, and product quality are recognized by the industry. Friends from all walks of life are welcome to visit, guide, and negotiate business.
