High Pressure Pump http://www.jdyqx.com/ShowProducts/?24-1.html
【High Pressure Pump】Introduction
Product Overview:
The two-phase flow pulp pump, adopts the principle of "relative suction, relative blockage" in the two-phase flow theory for the hydraulic design of the pump, making the hydraulic performance of the pump's flow components conform to the laws of solid-liquid two-phase flow, thus reducing the erosion and wear of the pulp on the flow components, greatly improving the pump's working efficiency and service life. This series of pumps has the following significant features:
1, High efficiency, energy-saving: The operating efficiency is on average3-10 percentage points higher than that of ordinary pulp pumps, achieving energy savings and consumption reduction of15-30%
2, Good cavitation performance and long service life: The actual service life is2-3 times longer than that of ordinary pulp pumps;
3, High concentration and no blockage: The pulp concentration can reach6%;
4, Reasonable structure and convenient maintenance: The pump head adopts a front and rear door structure, and during maintenance, the pipeline does not need to be disassembled; simply moving the motor backward allows for disassembly and maintenance of the pump.
This series of pumps is particularly suitable for the following industries:
1, Papermaking industry: Used for transporting pulp with a concentration below6% and for circulating, lifting, and pressurizing media in the alkali recovery industrial process;
2, Sugar industry: Used for transporting syrup with a concentration below4% and viscosity below150mm2/s;
3, Urban sewage industry: Used for circulating, lifting, and pressurizing media in wastewater treatment processes.
3DP series high pressure reciprocating pumps are widely used in environmental protection, food, pharmaceuticals, chemicals, petroleum, papermaking, mining, and other fields. They are key equipment for urban cleaning, engineering cleaning, chemical process dosing, carbon dioxide dosing, carbon dioxide transport, drying, oilfield water injection, oil transport, seawater desalination, and water treatment. This product has advanced technical performance, compact structure, small volume, and high efficiency. It is easy to maintain, safe and reliable to use, and has an attractive appearance.

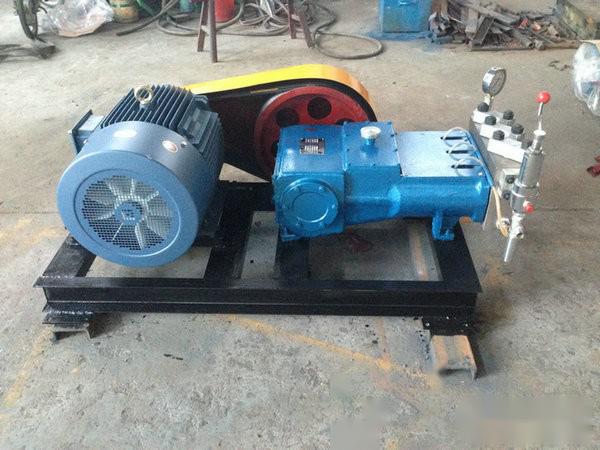

Model: Horizontal three-cylinder high pressure pump Power: Greater than101kW
Pressure: High70MPa Flow rate:17-789L/min
★Applications:
The pump is suitable for use as a process pump in the petroleum, chemical, and fertilizer industries; for high-pressure water dephosphorization in metallurgy and steel rolling mills; for high-pressure water cleaning and descaling in construction, shipbuilding, sugar, papermaking, and chemical industries; for oilfield water injection, boiler feed water, and power source for hydraulic machinery; as well as in food, pharmaceuticals, and other sectors that require high-pressure fluids. The medium transported is fluid without solid particles.
【High Pressure Pump】Inquiry http://www.jdyqx.com/ShowProducts/?24-1.html
Wuxi Jindayuan Cleaning Equipment Factory is a professional manufacturer of high-pressure cleaning machines, high-pressure pumps, high-pressure plunger pumps, high-pressure reciprocating pumps, high-pressure cleaning pumps, pressure testing pumps, water injection pumps, metallurgical dephosphorization pumps, desulfurization pumps, ammonium carbamate pumps, dock cleaning pumps, marine fire pumps, piston-type high-pressure diaphragm pumps, liquid carbon dioxide filling pumps, ammonium phosphate pumps, and other products, with a complete and scientific quality management system.
Wuxi Jindayuan Cleaning Equipment Factory's integrity, strength, and product quality have been recognized by the industry. Friends from all walks of life are welcome to visit, guide, and discuss business.
