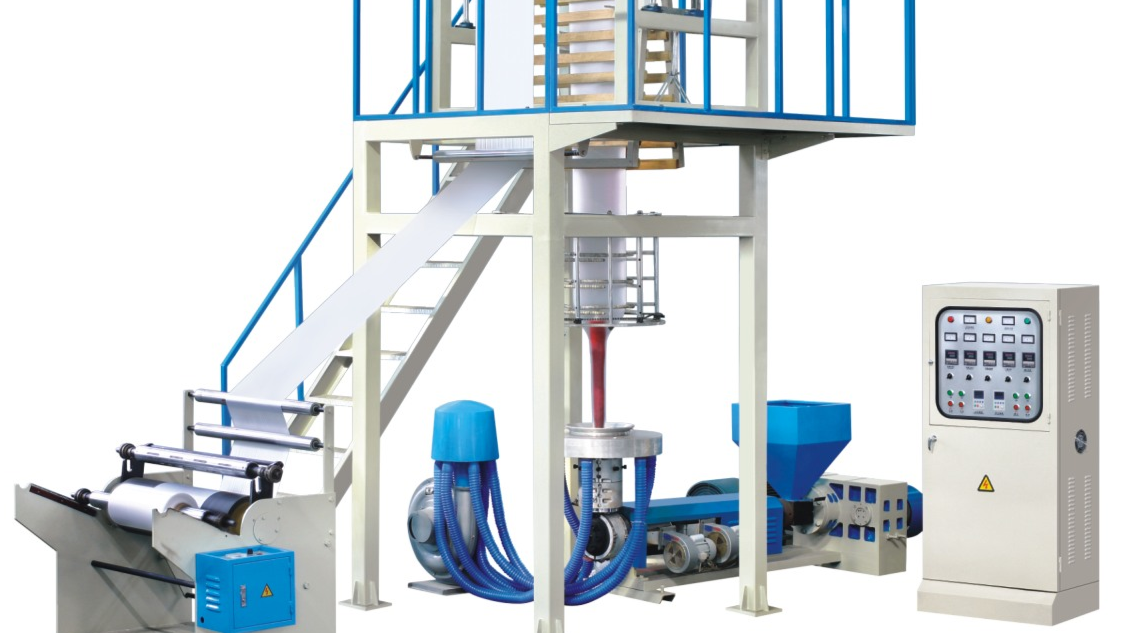

High-Low Pressure Blown Film Machine

Technical Specifications:

Suitable Materials: HDPE, LDPE, LLDPE

Blown Film Width: 100-600MM   Blown Film Thickness: 0.01-0.1mm  Output: 35KG/H

I. Main Unit:

1. Screw Diameter: 50mm, Length-Diameter Ratio 28:1

     Material: 38 Chromium Molybdenum Aluminum, Nitrided Treatment,

2. Each Screw Heated in 3 Zones, Heating Power 10KW,

3. Main Motor: 11KW (Inverter Controlled)

1. National Standard Hard Tooth Surface Gearbox 133#, with Oil Pump Cooling;

2. Equipped with 60MM and 120MM Die Heads.

3. Cooling Fans: 250W * 2 Units

4. Single Air Outlet Air Ring: 620MM

II. Traction Section:

1. Traction Motor: 1.5KW (Inverter Controlled)

2. Traction Roller Length: 650MM

3. Chevron Clamp Plate: Wooden Strip Style

4. Clamping Method: Pneumatic Clamping

III. Winding Section:

1. Winding Method: Passive, Single Winding,

2. Winding Motor: 10N/M * 1 Torque Motor Control

3. Winding: 2 Winding Shafts

IV. Electrical Section:

1. Zhengtai Low Voltage Electrical Components

2. Yuyao High Precision Temperature Controller

3. Jiangsu Nengshi Inverter
