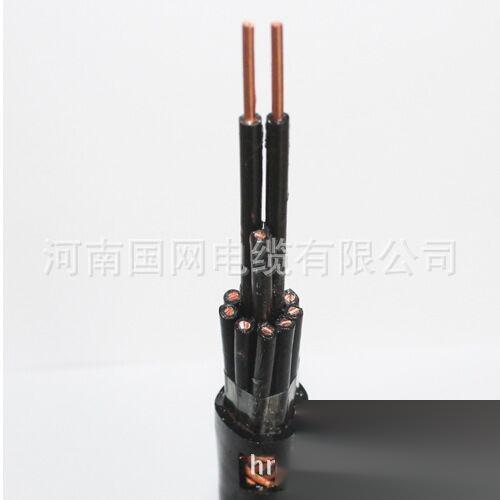

Henan Cable, NH-KVV22 Control Cable:
Rated voltage 0.45/0.75kV Solid copper conductor Polyvinyl chloride insulation Extruded PVC inner sheath Double steel tape armor Black PVC outer sheath Long-term allowable working temperature of the conductor is 70℃ Fire-resistant Control cable Technical standards comply with GB/T9330-2008 and GB/T19666-2005 specifications
Code Explanation
| Item Name | Code | Code Explanation |
|---|---|---|
| Fire Resistance | N | Fire-resistant |
| Series Code | K | Control cable |
| Insulation Material | V | Polyvinyl chloride |
| Inner Sheath/Sheath Material | V | Polyvinyl chloride |
| Armor Material | 2 | Double steel tape |
| Outer Sheath Material | 2 | Polyvinyl chloride |
| Temperature Rating | 70 | Long-term allowable working temperature of the conductor is 70℃ |
| Conductor Type | A | Solid conductor |
| Conductor Material | T | Copper |
| Rated Voltage | 0.45/0.75kV | Rated voltage 0.45/0.75kV |
| Outer Sheath Color | BK | Black |
| Inner Sheath Process Method | J | Extruded |
| Implementation Standard | GB/T 9330-2008 | GB/T 9330-2008 standard |
| Additional Standard | GB/T 19666-2005 |
GB/T 19666-2005 Standard |
Henan State Grid Cable, Henan Cable Manufacturer.
