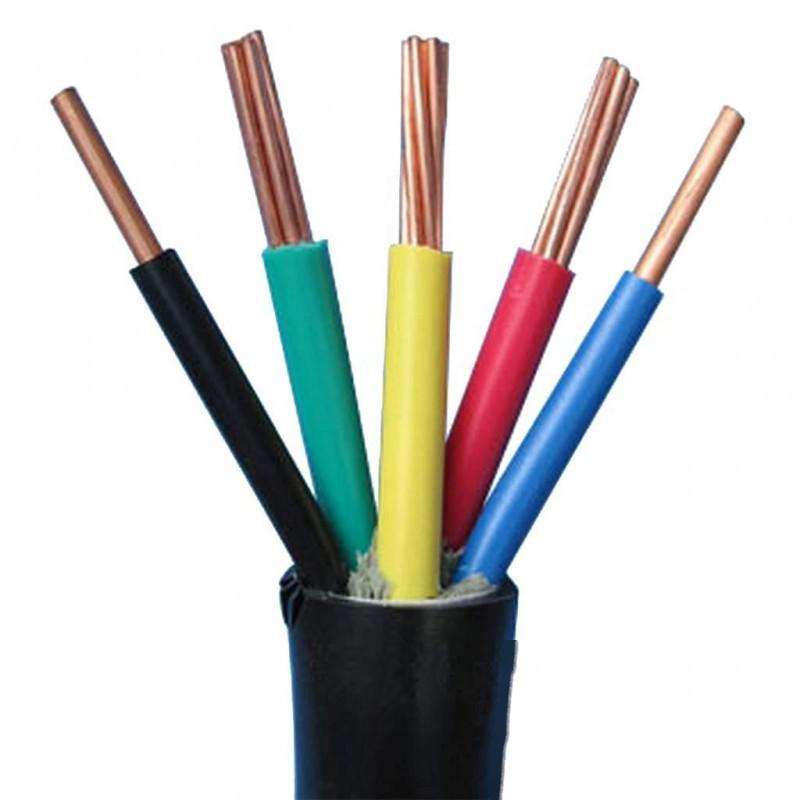

Henan Cable, KVV Control Cable:
Product Usage Characteristics:
1. AC rated voltage: U0/U 450/750KV
2. High operating temperature: Polyvinyl chloride (polyethylene) insulation does not exceed 70℃, cross-linked polyethylene insulation 90℃, low smoke halogen-free flame-retardant polyolefin 70℃. Low smoke halogen-free flame-retardant cross-linked polyolefin is available in two types: 90℃ and 125℃.
3. Low environmental temperature: Polyvinyl chloride sheath: fixed installation -40℃, non-fixed installation -15℃
4. The temperature for cable installation and laying should not be less than 0℃.
5. Minimum allowable bending radius of the cable: for non-armored cables, it is 6 times the outer diameter of the cable; for copper tape shielded or steel tape armored cables, it is 12 times the outer diameter of the cable.
Basic Model and Name of the Product
1. Polyvinyl chloride insulated and sheathed control cable
KVV |
Copper core polyvinyl chloride insulated polyvinyl chloride sheathed control cable |
KVVP |
Copper core polyvinyl chloride insulated polyvinyl chloride sheathed copper wire braided shield control cable |
KVVP2 |
Copper core polyvinyl chloride insulated polyvinyl chloride sheathed copper tape shield control cable |
KVV22 |
Copper core polyvinyl chloride insulated polyvinyl chloride sheathed steel tape armored control cable |
