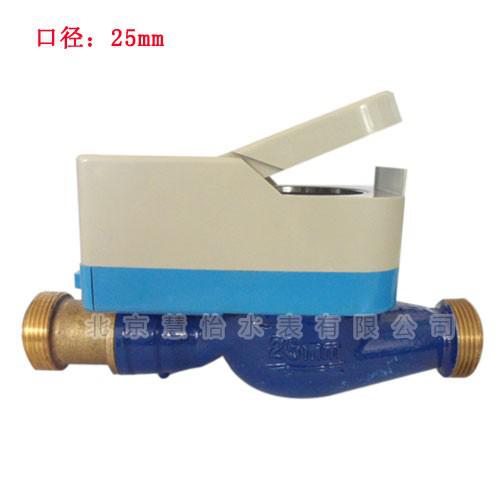

As a respected group enterprise, we provide comprehensive services and products to our clients, maximizing the value for customers, shareholders, employees, and society. 1. Overview of the Hebei IC Card Water Meter Management System The research project on Hebei IC card water meters and the automated control and management system was proposed in response to the rapid development of information technology in China, the ongoing advancement of urban information construction, and the need for efficiency in management across various industries, considering the current state of water management in the country. This project focuses on transforming the traditional water management model by utilizing a layered approach to water control and management that combines information technology, smart card technology, and on-site control. 2. Key Features of the Project The first key feature is the application of smart cards, especially those based on IC card technology equipped with banking keys, which involves organizations and server rooms in water management and services. The IC card serves as electronic currency for water bill payments, reducing cash circulation and alleviating the burden on companies. The second key feature is the transition from door-to-door billing to prepayment, which establishes water as a special commodity and enhances awareness of water conservation, thus playing a significant role in resource protection. The third key feature completely changes the traditional water management model, eliminating human factors in billing management, increasing work efficiency, and more importantly, guiding the water management industry toward a technology-driven development path, which will inevitably have a positive impact on existing management methods, personnel composition, and the development of enterprises. Baoding Card-In Water Meter Trial Co., Ltd. has developed a new product with independent intellectual property rights, suitable for measuring and controlling residential tap water, with a base meter measurement level of class B. It employs advanced microprocessor technology and uniquely designed composite control valves, utilizing radio frequency for logical encrypted cards, achieving multiple functions such as measurement, prepaid billing, LCD display, and control alarms. The product features low power consumption, high precision, strong anti-interference capability, reliable performance, complete functionality, attractive appearance, and ease of installation and use. All technical indicators meet the requirements of the CJ/T133—2007 industry standard and GB/T778-2007 national standard. Baoding Card-In Water Meter Trial Co., Ltd. produces both hot water meters and cold water meters, incorporating advanced components and concepts from abroad, designed and manufactured according to GB/T778.1.2.3 and CJ/T133 standards, complying with national electromagnetic compatibility testing standards. This Baoding card-in water meter trial employs a contact-based Baoding card (hereinafter referred to as Baoding card) as the medium, within the water sale management system and the Baoding card-in water meter trial. 1. The Baoding card-in water meter core features more accurate error measurement; 2. The electric ball valve is fully sealed and can work submerged in water; 3. The dual reed switch sampling effectively prevents interference from external magnetic fields. 1. Usage Conditions: Purpose: To measure and control the total amount of drinking water flowing through the tap water pipeline. Usage conditions: Hot water 0.3℃~40℃, working pressure ≤1 MPa, pressure loss ≤0.1 MPa. 2. Main Technical Parameters: Measurement Error: Maximum allowable error for hot water: The maximum allowable error in the lower range including QT is ±5%. The maximum allowable error in the upper range including QT is ±2%. 3. Characteristics: 1. Valve System: The torque generated by the valve drive system is more than three times the torque required by the valve itself, with an insurance factor over 300% to prevent loss of control due to scaling, prolonged disuse, or excessive impurities. a. Copper ball valve is used. b. High working temperature of the valve: 100℃. c. Technical parameters of the valve system: Testing conditions: Water pressure P=1.0 MPa, flow rate Q=2 m³/hour, supply voltage V=3V (can be powered by a 18505 lithium battery). The valve switching time is 11 seconds, and the motor current does not exceed 60mA. d. When the water source pressure is between 0.2 MPa and 0.9 MPa, after 1000 valve switch actions, the valve should remain in the closed state with leakage less than the specified value. 2. Flow Characteristics: Utilizing an E-type B-class wet core, its flow parameters meet or exceed national standards, particularly due to the use of a ball valve system, which significantly reduces pressure loss compared to other structural valves, making it highly favored by tap water companies. 4. Signal Acquisition System: It should use dual reed switches and alternating working modes to prevent measurement errors caused by vibrations and backflow, while also detecting external magnetic field interference to ensure consistency between the mechanical and electronic counting. In the presence of external magnetic field interference, both reed switches will activate simultaneously, prompting the control system to close the valve, preventing unauthorized water theft. 5. Transportation and Storage: 1. The meter base is fixed with foam to ensure the goods are not damaged by impact. 2. The water meter should be stored in its original packaging in an environment with a temperature range of -5℃ to 55℃, free from corrosive gases. 3. When stored on shelves, the stacking height of the entire box should not exceed 5 boxes. Accessories: Each water meter is supplied with a set of copper pipe joints, nuts, and rubber sealing rings. 6. Other Applications and Installation: Scope of Application: Compatible with various Baoding card-in water meters. 1. The diameter of the Baoding card-in water meter trial should be determined based on the diameter of the installation pipeline, and the installation location should avoid exposure to sunlight, flooding, freezing, and contamination, ensuring ease of disassembly and Baoding card insertion. 2. The Baoding card-in water meter trial should be installed horizontally (with the display facing upwards). 3. Prior to installation, the pipeline should be cleared of sand, stones, and other debris to avoid water meter malfunctions. 4. The direction indicated by the arrow on the Baoding card-in water meter trial should align with the direction of water flow in the pipeline. Performance and Features: 1. True flow meter with integrated ball valve structure, eliminating concerns about leakage at joint points; 2. Uses low-power ball valves for prepaid control, with reliable valve operation, accurate positioning, and low-pressure loss; 3. The calculator unit can be installed on the base meter or in other easily observable locations as needed; 4. Equipped with customer-replaceable alkaline batteries to ensure the longevity of the internal lithium battery; 5. The temperature measurement resolution of the integrator is 0.01℃; 6. Utilizes non-contact radio frequency for data exchange, facilitating data transfer between neighborhoods, allowing the Qiongshan neighborhood water meter to effectively control water usage based on users' prepaid water volume - automatically opening the valve to supply water according to the input water volume, and when the remaining water volume is insufficient, the valve will automatically shut off once and prompt the user to purchase water. When the water is exhausted, the valve will automatically close and provide a backlight prompt, realizing the prepaid function of "pay before use." Our company employs highly reliable, large-scale, low-power CPU integrated circuit design, and is equipped with multiple AD composite protection circuits, giving the water meter body anti-interference, anti-tampering, moisture-proof, and damp-proof advantages. The entire product features advanced structure, accurate measurement, convenient maintenance, strong anti-interference capability, and all technical indicators meet standard requirements.
