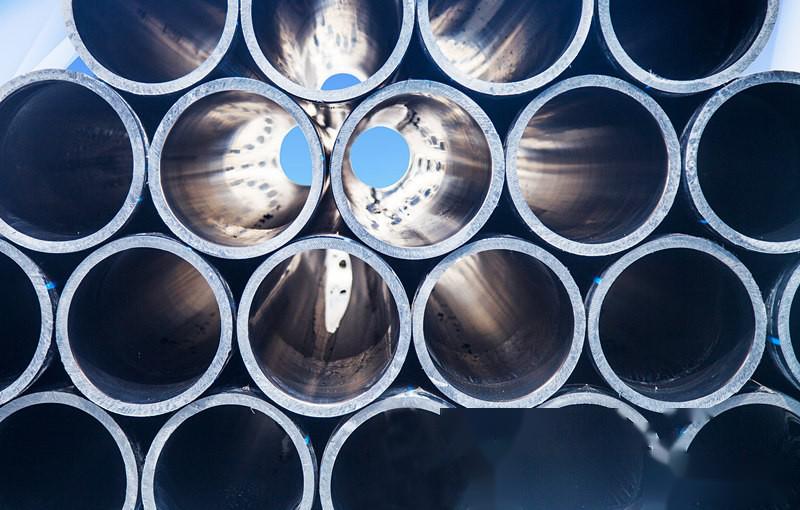

HDPE Water Supply Pipe, Full Size 560*50.8
Construction Materials-Other Building Materials
Expand
Product Content
Category
Construction Materials-Other Building Materials
Model Specifications: Φ90, Φ110, Φ160, Φ180, Φ200, Φ250, Φ315, Φ400, Φ500, Φ630
PE water supply pipes are widely used in water supply engineering due to their high strength, high temperature resistance, corrosion resistance, and non-toxicity. PE water supply pipes have unique flexibility and excellent scratch resistance. The installation and connection of polyethylene pipelines are convenient and reliable, with good rapid crack growth fracture toughness. The polyethylene water supply pipe system is produced from PE80 or PE100 raw materials, and the product complies with the GB/T13663-2000 standard. The product has good weldability, environmental stress resistance, and rapid stress cracking resistance.

Advantages Comparison


Peida Brand: peWater Supply Pipe

1. Raw Materials: Produced from 100% new PE100 raw materials, no recycled materials added

2. Wall Thickness: All specifications of pipes are produced with positive tolerances



Product Parameters

No.
Item
Requirement
1
Break elongation %
≥350
2
Longitudinal shrinkage rate (110℃) %
≤3
3
Oxidation induction time (200℃) min
≥20
4
Weather-resistant pipes after receiving ≥3.5GJ㎡ aging energy
80℃ static pressure strength (165h)
No rupture, no leakage
Break elongation %
≥350
Oxidation induction time (200℃) min
≥10

Product Features

1. Long service life---Under rated temperature and pressure conditions, PE pipes can be safely used for over 50 years;

2. Excellent corrosion resistance---Can withstand corrosion from various chemical media except for a few strong oxidants, with no electrochemical corrosion;

3. Excellent wear resistance---When conveying mineral sand slurry, the abrasion resistance of PE pipes is more than four times that of steel pipes;

4. Good sanitary performance---No heavy metal salt stabilizers are added during the processing of PE pipes, the material is non-toxic, has no fouling layer, does not breed bacteria, effectively solving the secondary pollution of urban water;

5. Good impact resistance---PE pipes have good toughness and high impact strength, and will not rupture when heavy objects are directly pressed over the pipes;

6. Reliable connection performance---The strength of the heat fusion and electro-fusion joints of PE pipes is higher than that of the pipe body, and the joints will not disconnect due to soil movement or live load;

7. Good construction performance---The pipes are lightweight, welding technology is simple, construction is convenient, and overall project cost is low;


Construction Fields

1. Gas, synthetic fibers, food, liquefied gas, natural gas, transmission and distribution pipelines

2. Chemical, forestry, dyeing, pharmaceutical, and other industrial fluid conveying pipelines

3. Agricultural irrigation pipelines

4. Postal and telecommunications lines, electric cable protection pipes

Construction Cases

Zhangjiagang Xifeng Road Project
Kunshan Zhujiang Road Project
Zhangjiagang Xiashicun Project
Kunshan Huaxi Road Project
Zhangjiagang Ganghua Road Project
Zhangjiagang Changjing Road Project
Zhangjiagang Hexi Road Project
Zhangjiagang Changan Road Project
Zhangjiagang Changjiang Road Project
Zhangjiagang Guotai Road Project
National Highway 204 Zhangjiagang Section Project
Zhangjiagang Yulan Road Project
Zhangjiagang Yonggang Avenue Expansion Project
Kunshan Huangpu River Road Project
Zhangjiagang Jiyang Lake Ecological Park Project
Kunshan Huaqiao Green Space Avenue Project


PE water supply pipe performance characteristics: over 50 years of service life, extremely low permeability, good sanitation, solving secondary pollution of applied water, sanitation meets GB/T17219-1998 safety evaluation standards, resistant to various chemical media, no point chemical corrosion, smooth inner wall, low friction coefficient, corresponding improvement in medium flow capacity, and excellent wear resistance, flexibility, high impact strength, resistance to strong shocks and twists, lightweight, convenient for transportation and installation, unique electric hot melt welding and hot melt butt welding technology, with joint strength higher than the strength of the pipe body, ensuring the safety and reliability of the joints, simple welding process, convenient construction, low overall project cost, green and environmentally friendly, color: black with blue co-extruded stripes, fittings are black, pipe length: small diameter is usually coiled, each coil length is 50M or 100M. Large diameter pipe lengths are 6M, 9M, or 12M, and other lengths can also be provided according to user requirements, connection method: pipes with an outer diameter below 50mm use hot melt fittings for socket welding connections, while pipes above 50mm use electro-fusion fittings or electro-fusion butt welding connections.

PE water supply pipe application range: Widely used in urban and rural water supply, pressure drainage and sewage, industrial fluid transportation, chemical and non-excavation old pipe renovation projects, etc.

Jiangsu Peida Plastic Co., Ltd. was established in 1992, located in the national civilized city of Zhangjiagang, Jiangsu Province, Fenghuang Town, Fenghuang Avenue. As early as 2003, it was recognized as one of the "Top Ten" enterprises in the industry by the Jiangsu Provincial Building Materials Industry Association, and is now also a key enterprise in the chemical building materials system of Jiangsu Province. The company covers an area of 33,000 square meters, with a building area of 30,000 square meters, producing approximately 20,000 tons of various plastic pipes and fittings annually. Guided by a people-oriented management philosophy, the company adopts the business philosophy of "seeking development for employees, for the enterprise, and contributing to society," and insists on solving various challenges faced by the company with the wisdom of all employees, enabling Peida to achieve rapid development. The seven series of pipes produced by Peida are: 1. Drainage and sewage pipes series; 2. Irrigation pipes series; 3. Underground communication pipes series; 4. Electric cable protection pipes series; 5. Water supply pipes series; 6. Construction pipes and fittings series; 7. Decorative pipes and fittings series. The products sell well nationwide and have received widespread praise from customers.
