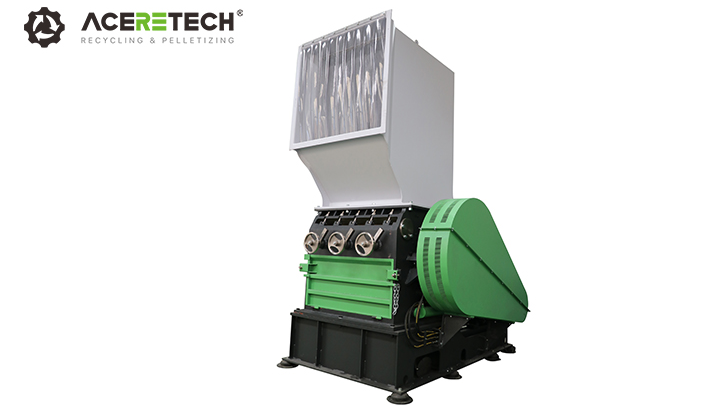

GH Heavy-Duty Plastic Recycling Crusher

The GH heavy-duty crusher is specifically designed for crushing tough materials. It features an integrated steel welded structure to meet high grinding requirements. The GH crusher has a robust crushing chamber and is equipped with various types of rotors. The rotor diameter ranges from 700mm to 1100mm, while the rotor length ranges from 700mm to 2400mm. The GH crusher is equipped with large rotor bearings and a "V" shaped rotor, which improves cutting efficiency and reduces dust in the thin slices. By adding removable skewed wedges (a third fixed blade), the GH crusher can granulate a wider variety of materials and quickly increase production. The wear-resistant plates in the crushing chamber and external bearings help reduce the risk of contaminants entering the crushing chamber.

[Applications]

The GH heavy-duty crusher is widely used for the crushing of profiles, pipes, films, sheets, large hard blocks, etc.

[Product Specifications]

Parameter	Unit	GH700/700	GH700/1000	GH700/1200	GH800/1400	GH800/1600	GH800/2000	GH1100/1200	GH1100/2400
Rotor Diameter	mm	700	700	700	800	800	800	1100	1100
Rotor Width	mm	700	1000	1200	1400	1600	2000	1200	2400
Number of Rotor Blades	pcs	7*2/5*2	7*2/9*2	7*2/9*2	3*2/5*2	7*4/9*4	7*4/9*4	7*2/9*2/11*2	7*2/9*2/11*2
Number of Stator Blades	row	2/3	2/3	2/3	2/3	2/3	2/3	2*55/2*75	2*55/2*75
Chamber Size	mm	690*690	985*800	1150*815	1360*910	1570*915	1960*915	144	144
Motor Power	kw	55	90	110	132	160	160*2	200	200*2
Machine Length	mm	2250	2815	2815	3100	3100	2755	3115	3060
Machine Width	mm	1900	2060	2360	2660	2860	4655	2440	3830
Machine Height	mm	2950	3420	3770	3820	4085 Related Products ACS-PRO Single Screw Plastic Compacting and Pelletizing Recycling Equipment with Dust Extraction System Jiangsu Aisrite Machinery Co., Ltd. ACS-H CE/ISO Certified Single Screw Plastic Recycling Pelletizing Machine Jiangsu Aisrite Machinery Co., Ltd. ACSS Two-Stage Single-Screw Plastic Recycling Compacting Pelletizing Equipment Jiangsu Aisrite Machinery Co., Ltd. ASE High-Efficiency Single-Screw Rigid Plastic Recycling Extrusion Pelletizing Equipment Jiangsu Aisrite Machinery Co., Ltd. Product Consultation Products Product Details * Contact Person * Company Name Business Role Country Email * Phone Number Submit Supplier view Jiangsu Aisrite Machinery Co., Ltd. JiangsuProvince Main products Compaction and Cutting Recycling Pelletizing System Single Screw Extruder Pelletizing System Twin Screw Extruder Compounding and Recycling System Shredding and Extrusion Recycling Pelletizing System Crusher/Shredder Washing and Pelletizing Recycling Turnkey Solution Wastewater Treatment System Grinder PET Recycling Equipment Auxiliary Machinery for Plastic Recycling About Us Estrite products have been sold to 93 countries and have 669 global clients. The factory covers an area of 15,000 square meters and has over 90 employees. The company has obtained ISO/CSA/SGS/CE/TUV/UKCA certifications and holds 27 patents. Featured Companies Refresh Xiangxing Paper & Plastic Color Printing Co., Ltd. Finished Product Manufacturers Tianjin Zhongshuo Polymer Materials Co., Ltd. Finished Product Manufacturers Guangdong Lino New Materials Technology Co., Ltd. Finished Product Distributors Shanghai Langyue International Trade Co., Ltd. Finished Product Manufacturers Guangzhou Jinyunda Plastic Mold Co., Ltd. Finished Product Manufacturers
