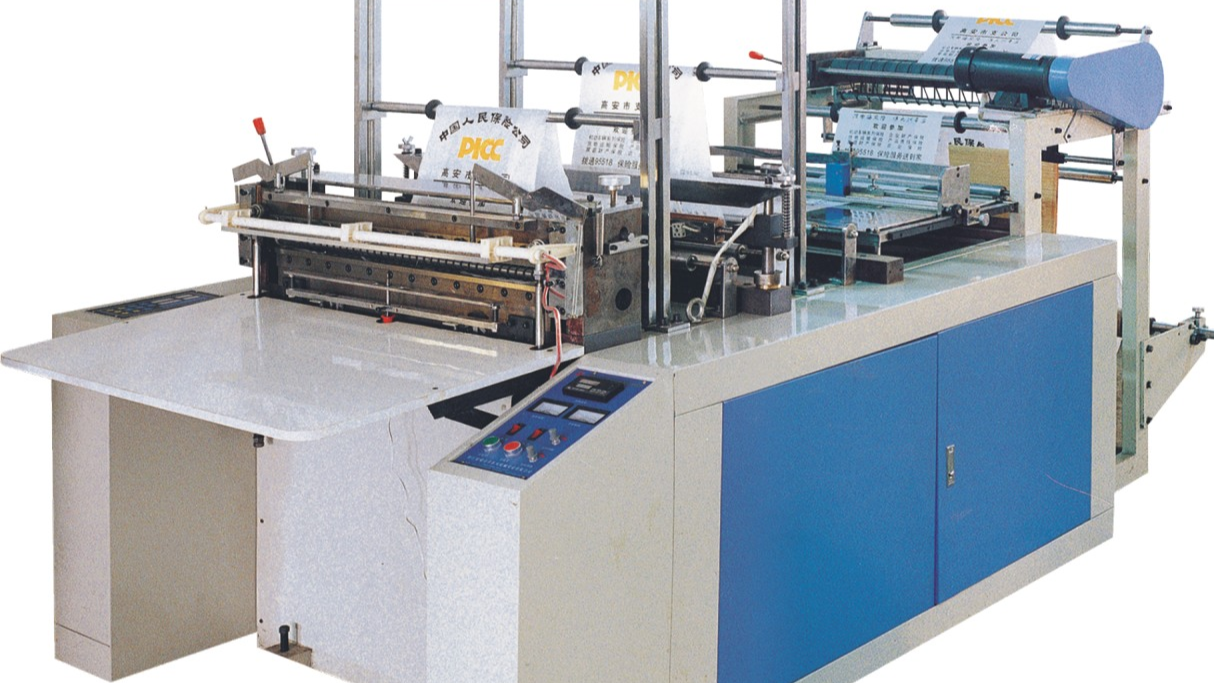

GFQ-800 Heat-Sealing and Cold-Cutting Bag Making Machine
This machine produces flat-bottom bags. The main motor uses a variable frequency motor, which saves electricity and allows for smoother speed adjustment. It is equipped with a high-performance color mark tracker that ensures more accurate sealing and cutting lengths with minimal error. Advanced computer control makes length adjustments convenient and precise.
| Model | 800 |
| Maximum Width (mm) | 800 |
| Maximum Length (mm) | 1000 |
| Maximum Speed (pc/min) | 30-130 |
| Power (kw) | 1.5 |
| Weight (kg) | 800 |
| Dimensions (LxWxH) mm | 2900x1500x1600 |
Main Components:
| No. | Component | Origin | Model/Power |
| 1 | Computer Control Microcontroller | Rui'an, Zhejiang | Computer |
| 2 | Stepper Motor | Wujin, Jiangsu | 130BYG350C |
| 3 | Stepper Motor Driver | Huanda, Wuxi | |
| 4 | Temperature Controller | Yuyao, Zhejiang | |
| 5 | Heating Plate | Rui'an, Zhejiang | 3kw |
| 6 | Discharge Motor | Wuhu, Anhui | 0.3kw |
| 7 | Feeding Motor | Rui'an, Zhejiang | 0.3kw |
| 8 | Discharge and Feeding Motor Speed Controller | Rui'an, Zhejiang | |
| 9 | Main Motor | Shanghai | 1.1kw |
| 10 | Main Motor Variable Frequency Drive | Kewei, Shenzhen | 1.1kw |
| 11 | Cutting Blade | Ma'anshan |
