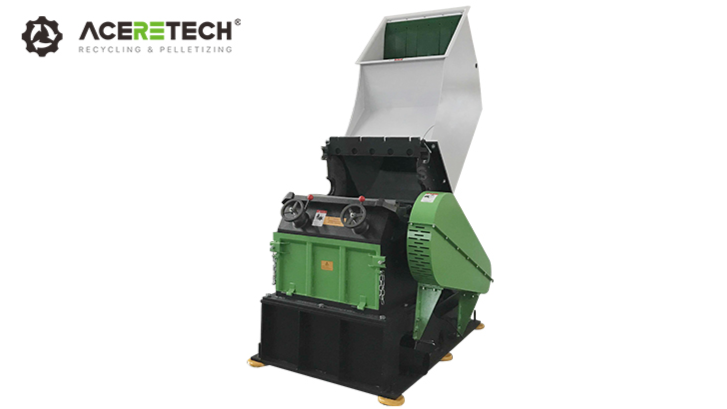

GE Series Economical Waste Plastic Crusher

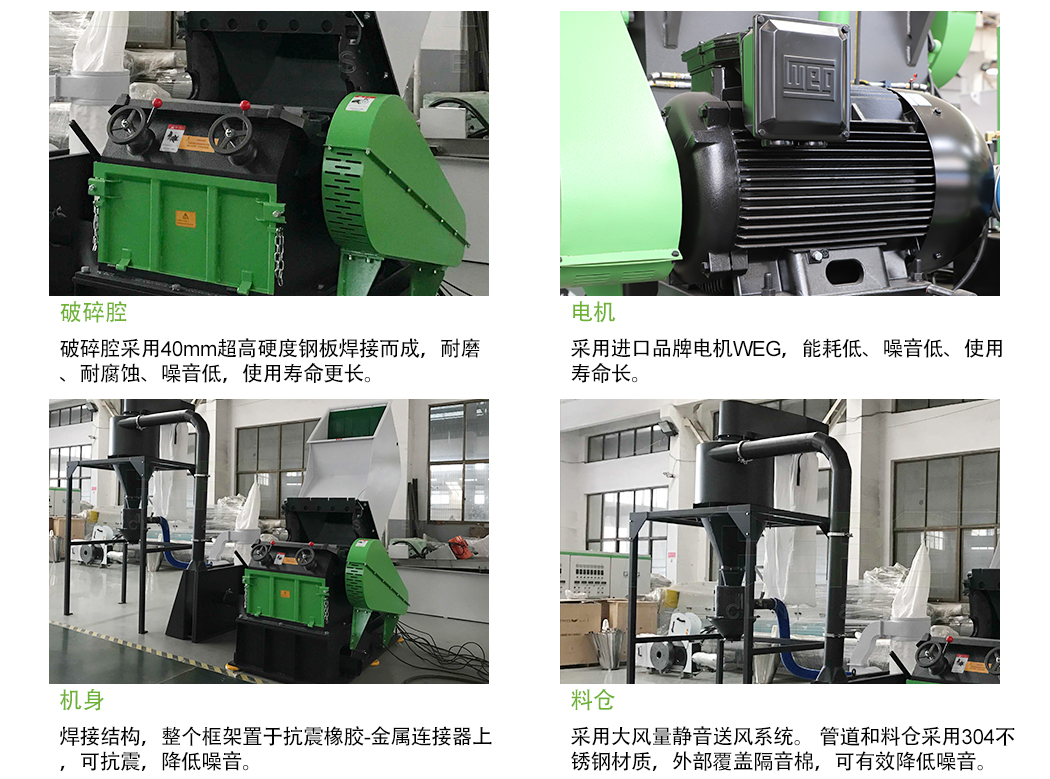

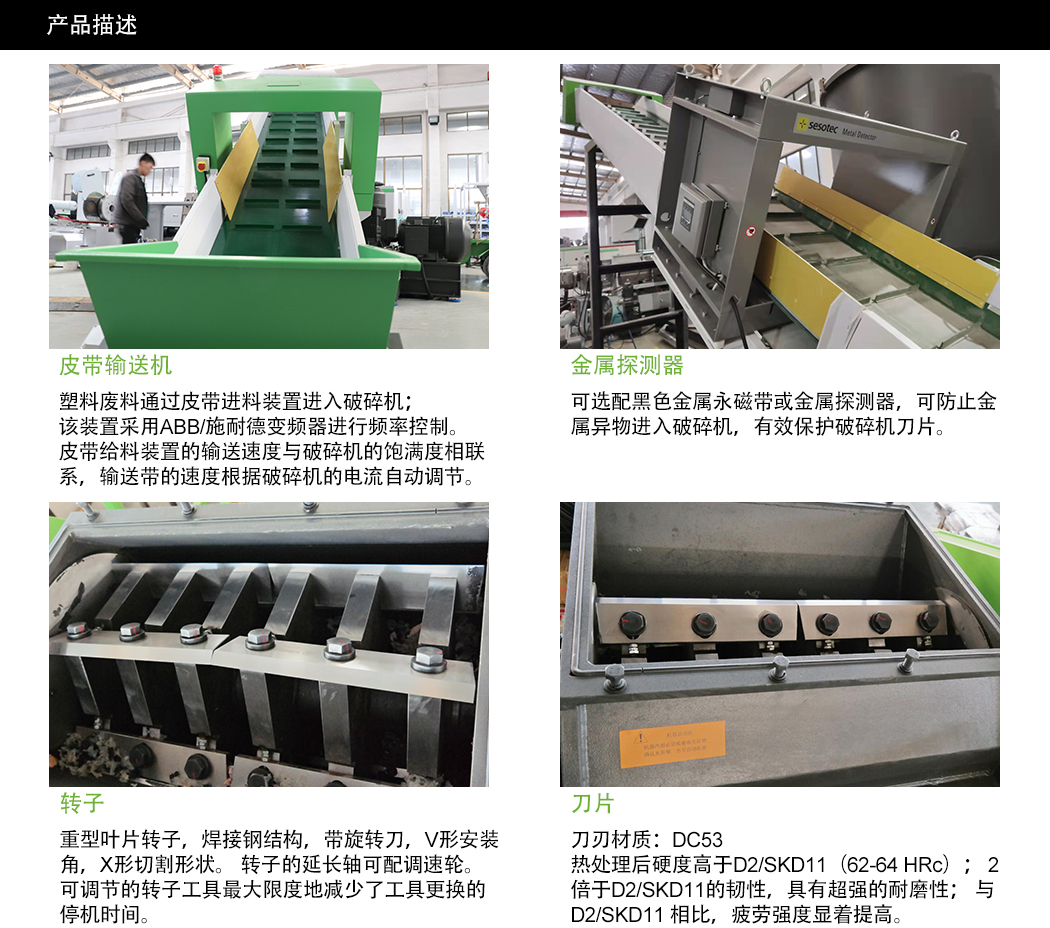

The GE series of crushers are cost-effective and offer various rotor designs with rotor widths ranging from 500mm to 1400mm. The rotors utilize efficient dual-shear technology. The entire machine features a welded steel structure combined with a V-shaped rotor, ensuring stable operation and reliable performance. The compact design facilitates easy maintenance of the chamber, quick cleaning, and convenient replacement of rotating knives, fixed knives, and screens.
[Applications]

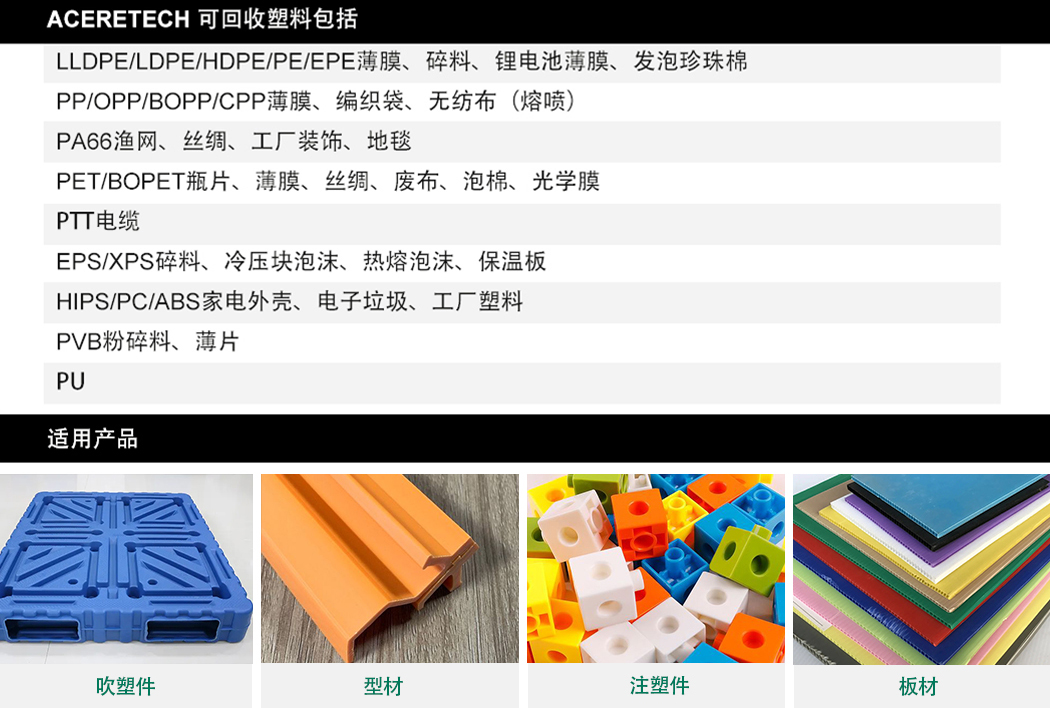

The GE series economical crusher is suitable for online recycling in plastic production lines. It features special cutting technology that can recycle various small hollow materials, including injection molding parts, blow molding parts, profiles, sheets, films, etc., producing uniformly sized flakes.
[Product Specifications]
Parameter | Unit | GE500/500 | GE500/700 | GE500/1000 | GE500/1400 | |
Rotor Diameter | mm | 500 | 500 | 500 | 500 | |
Rotor Width | mm | 500 | 700 | 1000 | 1400 | |
Chamber Size | mm | 540 x 540 | 540 x 700 | 540 x 990 | 540 x 1400 | |
Rotating Knives | pcs | 5 | 5 | 5 | 5 | |
Fixed Knives | pcs | 2 | 2 | 2 | 2 | |
Motor Power | kw | 30 | 37 | 55 | 75 | |
Machine Dimensions | Width A | mm | 1125 | 1330 | 1650 | 2050 |
Length B | mm | 1910 | 1910 | 1910 | 1910 | |
Height C | mm | 2310 | 2510 | 2640 | 2710 |
