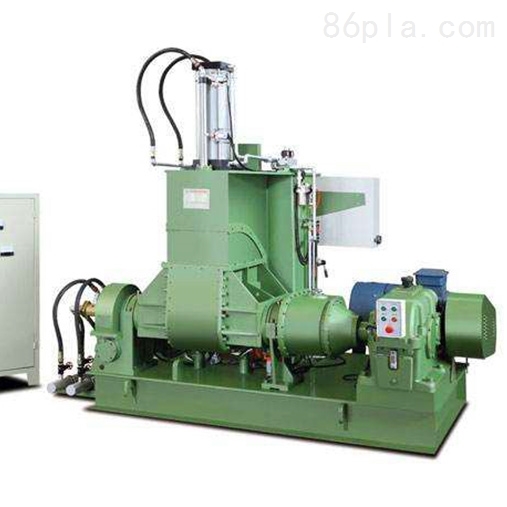

Brief Description:When the fully automatic mixing and masticating machine is in operation, the two rotors rotate relatively, gripping the material from the feed opening and bringing it into the roll gap where it is subjected to squeezing and shearing by the rotors. After passing through the roll gap, the material hits the sharp edge of the bottom plunger and is divided into two parts, which then return to the top of the roll gap along the gaps between the front and rear chamber walls and the rotors.
Fully Automatic Mixing and Compounding MachineFeatures:
The temperature control during the mixing process is the most precise. All the internal mixing components that come into contact with the material are circulated with cooling water, and the flow rate and volume are precisely controlled by the temperature control system, ensuring that the temperature variation is within ±3℃.
2. The leakage prevention effect during the mixing process in the mixing chamber is the best in China, with a powder leakage prevention effect 2-3 times better than domestic products. It uses an alloy ring and sealing ring for sealing, which can automatically compensate and also be manually adjusted. This completely prevents powder leakage. The Taiwan Gaoshan sealing ring has a semi-circular structure, making it easy to replace.
3. The mixing chamber and mixing shaft are made of wear-resistant alloy materials and undergo multiple processing treatments, making them resistant to wear and breakage.
4. The gearbox is manufactured by a domestic gearbox manufacturing Co., Ltd., and it is a dedicated hard-faced reducer for the internal mixer, featuring low vibration, low noise, and smooth transmission.
5. The electrical control system is humanely designed with increased electrical capacity for easy operation and incorporates various maintenance systems.
Fully automatic mixing and masticating machine operation:
1. Turn on the power sequentially. If heating is required, set the temperature and observe whether the heating is normal. If water cooling is used, open the inlet and outlet valves to ensure normal water flow.
2. Clean the internal mixer, and do not leave hard objects such as wire inside. Check the oil levels and lubrication status of all gears, engine oil, and grease. Pay special attention to the oil level in the triplet oil cup, which should not be less than half full, and regularly observe changes in the oil level of the triplet. No oil consumption or rapid oil consumption are both abnormal (adjust the knob of the triplet). The gear oil for a new machine should be replaced after six months. Moving parts should be lubricated at least once a week, and when adding oil, it should not exceed half the level of the oil sight glass, otherwise, it may cause oil leakage.
3. Prepare the materials and turn on the power and air pressure. Raise the pressurizing cover to its upper limit position, then start the main motor. After the main motor has been running for half a minute, add the prepared materials, then lower the pressurizing cover to begin the mastication of the materials.
4. If a color change is needed, please pour in cleaning material or raw material cleaner, then use a broom or wire to clean the old material from the gaps between the rotor shafts in the mixing chamber.
5. During the mastication process, the operation can be adjusted to automatic or manual mode based on the material properties. Materials that are too hard should not be processed in excessive amounts or sizes, as this may cause the machine to lock up or damage the main motor.
6. After the material is well-mixed, first raise the pneumatic cover, then flip the mixing chamber. Once it is in position, pour out the material, then return the mixing chamber to its original position, and add new material for the next mixing cycle.
7. When stopping production, first turn off the power for each function in sequence, then shut down the main power, and subsequently quickly clean the mixing chamber and thoroughly remove any dust.
