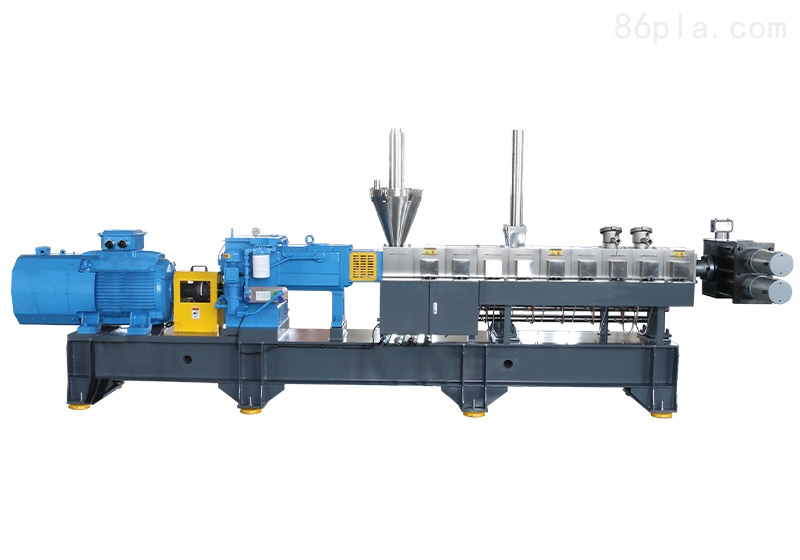

Brief description:The fully automatic black masterbatch pelletizing machine is mainly used for coloring polymer materials, and it is primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid masterbatch.
Fully automatic black masterbatch pelletizing machineFeatures:
This production line integrates mixing, conveying, feeding, and extrusion, achieving automated continuous operation with high production efficiency.
2. Compact structure, small footprint and space, can be installed flat.
3. The production process employs segmented closed-loop temperature control, with the internal mixer, feeder, and extruder each having their own heating and cooling systems, controlling their respective temperatures according to the process requirements.
4. The feeding mechanism adopts a dual-paddle screw design, featuring strong material intake capability. It is particularly suitable for extruding and pelletizing block materials directly from the internal mixer.
5. The barrel and screw are made of high-quality 38CrMoAIA alloy steel, which has been nitrided for high hardness, wear resistance, and corrosion resistance.
6. The die head adopts a manual screen changing or quick non-stop screen changing mechanism to improve production efficiency.
7. The electrical control system adopts advanced PLC control technology, combined with multiple inverters, enabling high-precision and wide-range speed adjustment for feeding, extrusion, cutting, and other multi-machine operations according to process requirements. It also features comprehensive process interlocks, audio-visual fault alarms, and other control functions, ensuring a complete and reliable system.
Fully automatic black masterbatch pelletizing machineMaintenance:
The equipment should be placed in a well-ventilated area to ensure that the heat generated by the motor can dissipate, thus prolonging its lifespan.
2. Lubricating oil should be regularly applied to the bearings to ensure lubrication between them.
3. Regularly check the tool screws; after 1 hour of use, tighten the screws of the moving and fixed blades with a tool to enhance the fixation between the blades and the blade holder.
4. To ensure the sharpness of the cutting edge, the tool should be regularly inspected to maintain its sharpness, thereby reducing unnecessary damage to other components caused by a dull or defective blade.
5. When replacing the blades, the gap between the moving blade and the fixed blade: for 20HP and above, the thinner the recycled material, the larger the gap can be appropriately adjusted.
6. Before the second start, the remaining debris in the machine room should be cleared to reduce the starting resistance.
7. The inertia cover and pulley cover should be opened regularly to clean the dust outlet below the flange, as the powder discharged from the pelletizing chamber can enter the shaft bearings.
8. The old stock resin pelletizing machine should be kept well grounded.
