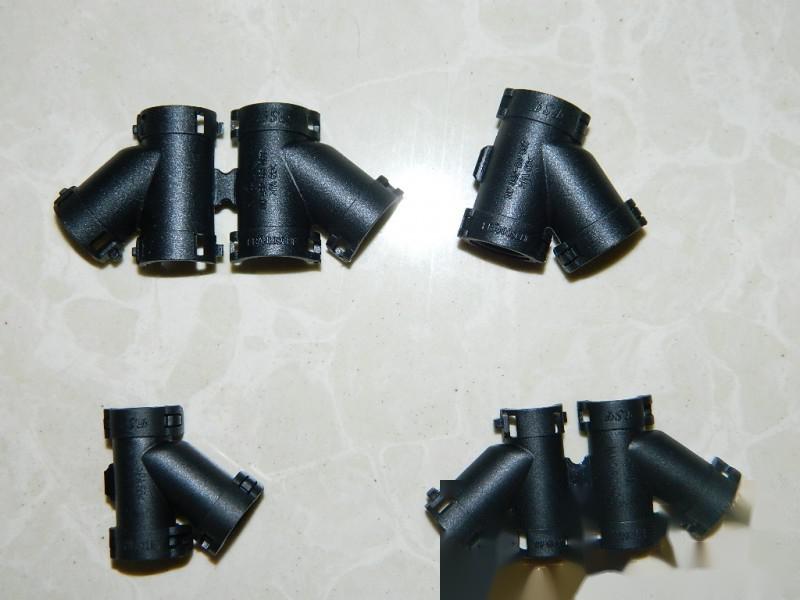

Fulaitong specializes in the production of open-type three-way connectors, Y-type nylon hose distributors, and wiring tube connectors.
Material: Nylon PA
Temperature Range: -40℃~115℃, short-term up to 150℃
Color: Black
Flame Retardant Rating: V0
Features: Oil-resistant, acid and alkali resistant, waterproof, UV resistant, insulating, halogen-free, flame retardant.
Applications: Machine tools, machinery manufacturing, power equipment, electrical control systems, automotive wiring harnesses, engineering installations.
Usage Method: Y-type, T-type, or V-type three-way connector, open it, connect the corrugated pipe, and directly fit the pipeline.
Model Part No.
T/Y/V
Hose Specification
AD1
Hose Specification
AD2
Hose Specification
AD3
Length A
(mm)
Width B
(mm)
Packaging Quantity
(pcs/pack)
7-7-7 AD7.0 AD7.0 AD7.0 25.6 27.4 100
10-7-7 AD10.0 AD7.0 AD7.0 25.6 28.2 100
10-7-10 AD10.0 AD7.0 AD10.0 25.6 31.3 100
10-10-10 AD10.0 AD10.0 AD10.0 30.8 33.5 100
13-10-13 AD13.0 AD10.0 AD13.0 32.5 36.6 100
13-13-13 AD13.0 AD13.0 AD13.0 32.5 36.4 100
16-10-10 AD15.8 AD10.0 AD10.0 32.5 37.4 100
16-10-13 AD15.8 AD10.0 AD13.0 32.5 37.4 100
16-13-13 AD15.8 AD13.0 AD13.0 32.5 37.4 100
16-13-16 AD15.8 AD13.0 AD15.8 38.0 39.6 100
16-16-16 AD15.8 AD15.8 AD15.8 40.0 43.0 100
21-13-13 AD21.2 AD13.0 AD13.0 33.0 40.4 100
21-13-16 AD21.2 AD13.0 AD15.8 33.0 40.4 100
21-13-21 AD21.2 AD13.0 AD21.2 37.0 46.1 100
21-16-13 AD21.2 AD15.8 AD13.0 36.0 49.0 100
21-16-16 AD21.2 AD15.8 AD15.8 37.0 42.0 100
21-16-21 AD21.2 AD15.8 AD21.2 39.0 47.7 100
21-21-10 AD21.2 AD21.2 AD10.0 41.0 41.6 100
21-21-13 AD21.2 AD21.2 AD13.0 38.0 41.5 100
21-21-21 AD21.2 AD21.2 AD21.2 44.0 51.3 100
25-10-25 AD25.0 AD10.0 AD25.0 33.0 48.3 100
25-13-21 AD25.0 AD13.0 AD21.2 32.0 46.0 100
25-13-25 AD25.0 AD13.0 AD25.0 35.0 50.5 100
25-16-21 AD25.0 AD15.8 AD21.2 40.0 47.5 100
25-16-25 AD25.0 AD15.8 AD25.0 37.0 52.4 100
25-21-21 AD25.0 AD21.2 AD21.2 44.0 51.3 100
25-25-25 AD25.0 AD25.0 AD25.0 49.0 58.5 100
