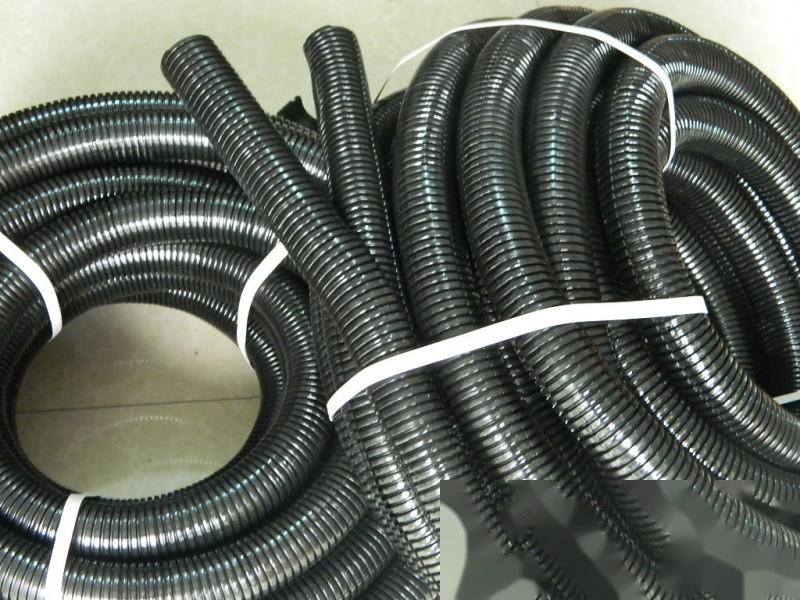

Fulaitong specializes in manufacturing double-opening nylon flexible conduits AD31.4 for power plants, which are easy to install.
Material: Polyamide (PA6)
Temperature Range: -40℃ to +120℃; short term up to 150℃
Color: Black, Gray
Flame Retardant Rating: Vo, HB (UL94)
Protection Level: IP68
Characteristics: Good flexibility, glossy surface, high mechanical strength, torsion resistance, wear resistance, oil and acid resistance, UV resistance, non-toxic, halogen-free, phosphorus-free, and cadmium-free.
Applications: Machine tools, machinery manufacturing, electrical insulation protection, electrical automation control systems, public transportation equipment, subways, electric locomotives, air conditioning and refrigeration equipment, etc.
Double-opening cable conduits are mainly used in low-waterproof and inconveniently removable cable areas. During installation, there is no need to disassemble the cable; simply strip the conduit, place the cable inside, and utilize its double-layer self-locking ability to protect the cable, compatible with openable connectors.
|
ModelPart No. TPA/TPP/TPE |
Inner DiameterI.D. (mm) |
Outer DiameterO.D. (mm) |
Min. Bend RadiusMin. Bend Radius (mm) |
|
AD13.8 |
8.9 |
13.8 |
55 |
|
AD18.7 |
12.8 |
18.7 |
75 |
|
AD25.8 |
20.0. |
25.8 |
105 |
|
AD31.4 |
24.8 |
31.4 |
125 |
|
AD41.9 |
31.4 |
41.9 |
170 |
|
AD54.5 |
43.3 |
54.5 |
190 |
