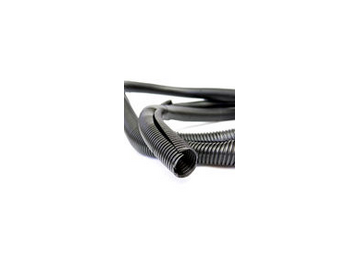

Fulaitong Single-Opening Plastic Corrugated Pipe for Electrical Wiring - Split-Type Nylon Hose Production
Split-Type Nylon Hose
Material: Polyamide (PA6)
Temperature Range: -40℃ to +120℃
Features: Good flexibility, glossy surface, high mechanical strength, anti-twisting, wear-resistant, oil, acid, and alkali resistant, UV resistant, insulated, halogen-free, phosphorus-free, and cadmium-free.
Color: Black, Gray
Applicable Situations: Split type, no need for threading, suitable for cable protection of prefabricated connectors, applicable to machine tools, mechanical manufacturing, electrical insulation protection, electrical automation control systems, public transportation equipment, subways, electric locomotives, air conditioning and refrigeration equipment, etc.
|
Model Part No. PA/PP/PE |
Inner Diameter I.D. (mm) |
Outer Diameter O.D. (mm) |
Bend Radius Min. Bend Radius (mm) |
|
AD7.0 |
4.5 |
7.0 |
25 |
|
AD10.0 |
6.5 |
10.0 |
35 |
|
AD11.6 |
8 |
11.6 |
40 |
|
AD13.0 |
10.0 |
13.0 |
45 |
|
AD15.8 |
12.0 |
15.8 |
55 |
|
AD18.5 |
14.3 |
18.5 |
65 |
|
AD21.2 |
17.0 |
21.2 |
75 |
|
AD25.0 |
20 |
25.0 |
90 |
|
AD28.5 |
23 |
28.5 |
100 |
|
AD34.5 |
29.0 |
34.5 |
120 |
|
AD42.5 |
36 |
42.5 |
150 |
|
AD54.5 |
48 |
54.5 |
190 |
