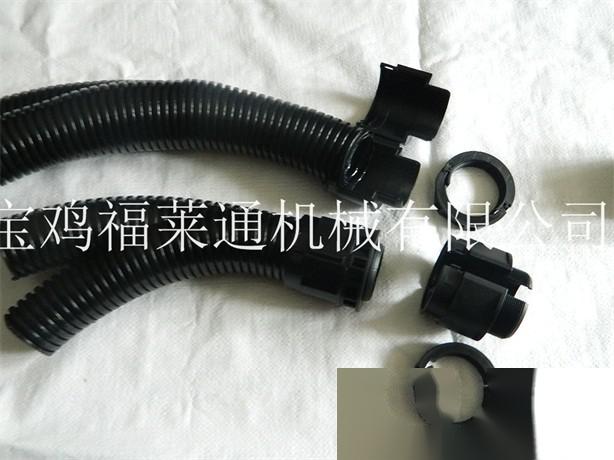

Fulaite Double-Splice Corrugated Pipe Connector Dual-Opening Soft Hose Connector, Easy to Open, Simple Installation
Material: Nylon PA;
Color: Black;
Temperature Range: -40~+110℃ at normal temperature, can reach up to 150℃ for a short time;
Application: Machine tools, machinery manufacturing, power equipment, electrical control systems, automotive wiring harnesses, engineering installations;
Usage: The open corrugated pipe connector is a professional matching connection product for nylon double-splice corrugated pipes. All structural parts can be opened, making it suitable for situations where cable heads have been installed. The product is particularly suitable for post-protection of pre-installed cables or for updating existing cable protection hoses.
Product Model and Specifications Overview:
|
ModelPart No. |
Thread Specification Thread Type |
Compatible HoseConduit Size |
Packaging （Only/Pack） |
|
NY-KPA13 |
PG9 |
AD13.8 |
100 |
|
NY-KPA18 |
PG13.5 |
AD18.7 |
100 |
|
NY-KPA25 |
PG21 |
AD25.8 |
100 |
|
NY-KPA32 |
PG29 |
AD31.4 |
50 |
|
NY-KPA42 |
PG36 |
AD41.9 |
25 |
|
NY-KPA54 |
M50*1.5 |
AD54.5 |
25 |
|
NY-KPA80 |
M80*1.5 |
AD79.8 |
25 |
|
NY-KPA106 |
M106*1.5 |
AD106.0 |
- |
The open-type connector system produced by Fulaite does not require tools for installation and disassembly, significantly reducing the time for these processes. The connection is simple, quick, reliable, and safe. Just open the connector, insert the pipe, and fasten the clasp to complete the installation, achieving a certain level of protection. For disassembly, simply pull the locking clasp to easily remove the hose. Fulaite's plastic corrugated pipes and open-type connectors are widely used in various fields due to their advantages of simplicity, speed, reliability, and safety. However, different occasions require selecting the appropriate hose and connector based on factors such as temperature, corrosion resistance, flame resistance level, protective level, and flexibility, which may necessitate using hoses made of different materials. The specific hose size can be determined according to the outer diameter of the harness that needs to be installed inside the hose, generally suggesting a 10% surplus space. Some connector selections also depend on the thread specifications of the equipment or steel pipes they connect to. These are general selection criteria for the products, and for special cases, it is advisable for users to consult professionals. Fulaite welcomes customers to contact us for inquiries, and we will provide you with professional answers and products.
