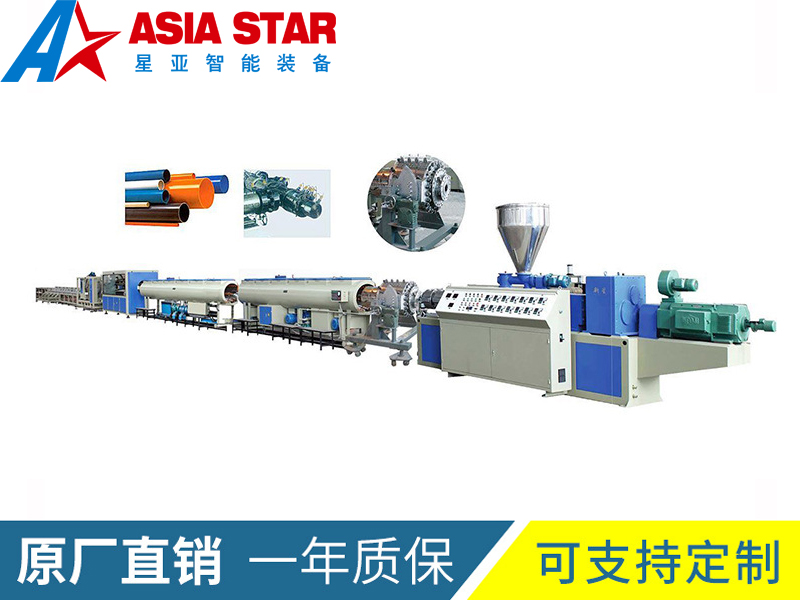

### Product Description This production line is primarily used for manufacturing U-PVC electrical conduit, wire conduit, and water supply pipes. It can simultaneously produce four electrical conduits, wire conduits, or water supply pipes, significantly improving production efficiency. Each pipe has independent traction and cutting mechanisms, effectively reducing the defect rate of the produced pipes. ### Product Specifications | Item | PVC63 | PVC160 | PVC250 | PVC315 | PVC450 | PVC630 | |--------------------------|---------|---------|---------|---------|---------|---------| | Pipe Size (mm) | φ16-φ63 | φ75-φ160| φ125-φ250| φ180-φ315| φ200-φ450| φ355-φ630| | Vacuum Box Length (mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 | | Vacuum Degree (Mpa) | -0.03～0.08 | -0.03～0.08 | -0.03～0.08 | -0.03～0.08 | -0.03～0.08 | -0.03～0.08 | | Maximum Traction Force (N)| 10000 | 15000 | 20000 | 25000 | 30000 | 50000 | | Traction Speed (m/min/max)| 10 | 6 | 4 | 3 | 2 | 1.4 | | Effective Traction Length (mm)| 1000 | 1500 | 1500 | 1500 | 1800 | 1600 | | Compressed Air Capacity (m³/h)| 0.4 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 | | Water Consumption (m³/h) | 5 | 6 | 7 | 8 | 9 | 12 | | Production Line Length (m)| 20 | 22 | 30 | 30 | 36 | 42 | ### Industry Applications
