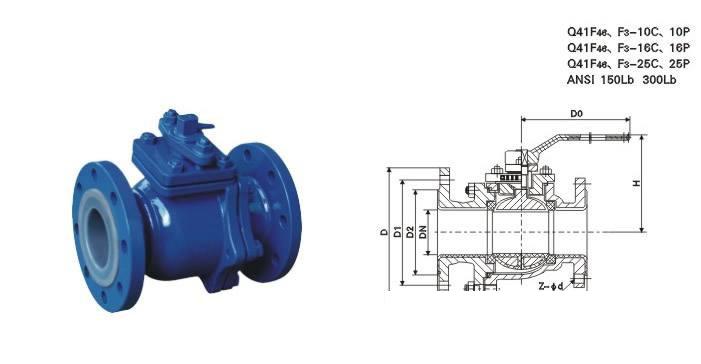

Product Name: Fluorine-lined Flanged Ball Valve
Product Model: Q41F46
Product Size: DN15-200
Product Pressure: 1.0-6.4Mpa
Fluorine-lined Flanged Ball Valve Structural Features:
Ball Valve uses a spherical body with a circular hole as the opening and closing element, the sphere rotates around the centerline of the valve body with the valve stem to achieve valve opening and closing.
This series of valves is Q41 type, designed with a double-acting two-piece structure.
1. Special molding process is used to ensure good compactness of the sealing surface, combined with V-shaped PTFE packing to achieve zero leakage of the valve.
2. The sphere and valve stem are cast as one piece, eliminating the possibility of the stem being pushed out of the pressure-bearing component due to pressure changes, fundamentally ensuring safety during use.
3. Full plastic lining technology is adopted, providing resistance to strong corrosion of the medium.
