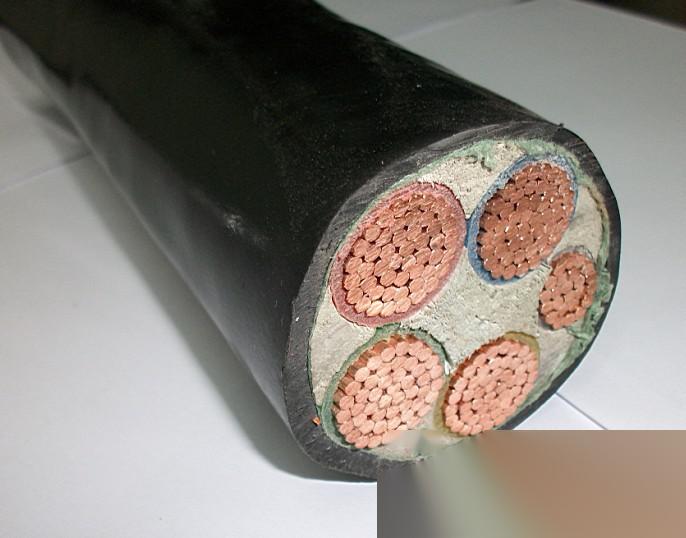

Fire-resistant NH-VV, low voltage cable from Henan
Construction Materials-Other Building Materials
Expand
Product Content
Category
Construction Materials-Other Building Materials
The product is suitable for high-rise buildings, oil fields, power stations, electric power plants, mines, chemical industries, subways, and other scenarios that require high fire protection standards. It is also used as an emergency power supply, fire pump, and elevator communication signal system's standby cable. This product has flame-retardant and fire-resistant cable capabilities. Under direct flame exposure, it does not short circuit or break within a certain period (not less than 3 hours), ensuring continued power supply to maintain lighting and signal transmission, providing personnel with sufficient time for safe evacuation, and aiding in firefighting and reducing losses. 1. Production execution standards: Adopt enterprise standards. 2. Usage conditions: 1. Rated AC voltage: U/U (V series: 600/1000V, K series: 450/750V, B series: 450/750V). 2. Long-term operating temperature of the cable: (1) Flame-retardant polyvinyl chloride insulation and sheath: two types, 70℃ and 105℃; cross-linked polyethylene insulation: 90℃; (2) Fluoroplastic insulation and sheath: two types, 220℃ and 260℃; fluoroplastic insulation and 105℃ flame-retardant polyvinyl chloride sheath: two types, 90℃ and 125℃. (3) Low-halogen low-smoke flame-retardant PVC insulation and sheath: 70℃; halogen-free low-smoke flame-retardant polyolefin insulation and sheath: two types, 90℃ and 125℃. 3. Environmental temperature: (1) Flame-retardant polyvinyl chloride insulation and sheath: fixed installation -40℃; non-fixed installation -15℃; (2) Fluoroplastic insulation and sheath: fixed installation -60℃; non-fixed installation -20℃; 4. The safe installation temperature of the cable should not be lower than 0℃. 5. Fire resistance characteristics: Complies with IEC331 regulations and GB12666.6 regulations. Flame temperature 750℃, flame temperature 950℃-1000℃, flame temperature 750℃-800℃. Burning time 3h, burning time 90min, burning time 90min. Cooling time 21h, additional voltage rated voltage, additional voltage rated voltage. Additional voltage rated voltage, additional current 3A, additional current 3A. Additional current 3A, Class A, Class B. Recommended allowable bending radius for installation: Non-armored, braided shield cables should not be less than 6 times the outer diameter of the cable; Steel tape armored cables should not be less than 12 times the outer diameter of the cable; Fluoroplastic insulated and sheathed cables should not be less than 8 times the outer diameter of the cable.
Product Consultation
Supplier
Henan State Grid Cable Co., Ltd.
location
HenanProvince
About Us
Henan State Grid Cable Co., Ltd. is a professional manufacturer of wire and cable, integrating scientific research and production as a large-scale joint-stock enterprise with a registered capital of 110 million yuan. The company is located in the Guodian Modern Industrial Zone on Xinzhen Road, Zhengzhou, adjacent to Zhengzhou South China City and Huashanghui, enjoying a superior geographical location. The company currently has more than 1,000 employees, including over 360 technical personnel and 90 engineers. It possesses 190 sets of advanced cable production equipment, equipped with state-of-the-art process equipment and first-class process levels, along with comprehensive testing methods. The annual production capacity (output value) for wires and cables can reach 10 million kilometers. The company's main products include: cross-linked polyethylene insulated power cables up to 35kV (including fire-resistant and flame-retardant types), low-voltage 0.6/1kV polyvinyl chloride (cross-linked polyethylene) insulated power cables (including fire-resistant and flame-retardant types), control cables (including fire-resistant and flame-retardant types), 1-35kV aerial insulated cables, steel wire (steel tape) armored power cables, 1kV parallel bundled conductors, low-smoke halogen-free (low-smoke low-halogen) power cables, copper-plastic wires, pre-branch cables, aluminum stranded wires, aluminum alloy stranded wires, aluminum alloy cables, mineral insulated cables, high-temperature and cold-resistant cables, photovoltaic cables, and other products, with a full range of models and specifications. The company's products are widely used in airport construction projects, real estate development projects, urban and rural power grid transformation projects, power plants, and other enterprise renovation and expansion projects, as well as in the petroleum, chemical, municipal, large venues, civil construction, and various sectors of the national economy.
