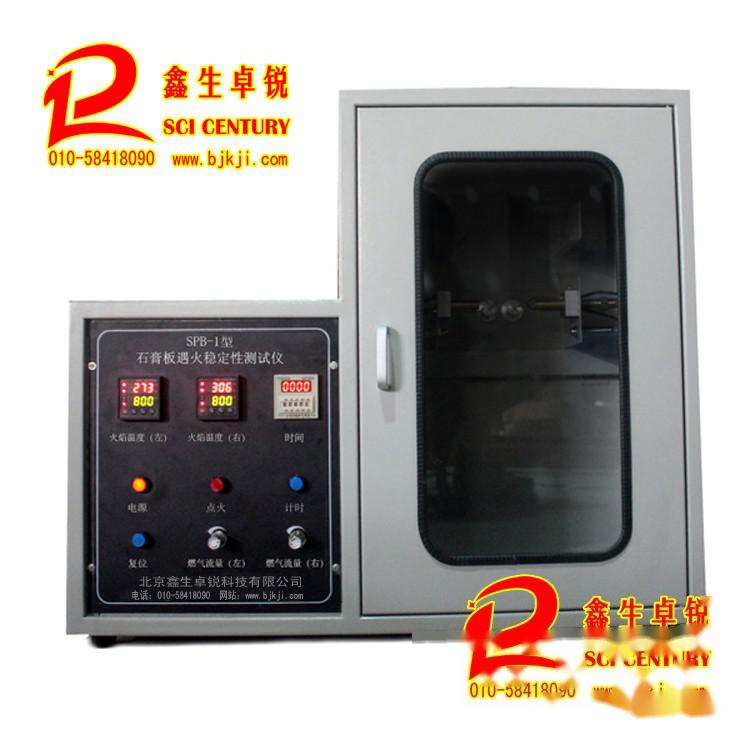

SPB-1 Fire Stability Testing Instrument for Paper-faced Gypsum Board

1. Application Scope

The SPB-1 Fire Stability Testing Instrument for Paper-faced Gypsum Board, also known as the Paper-faced Gypsum Board Fire Stability Combustion Tester, is used to determine the fire stability of fire-resistant gypsum boards and is also suitable for testing the fire performance of other building materials, decoration, and finishing materials.

2. Test Introduction: The sample is drilled and treated under specified environmental conditions. The sample is suspended between two flame outlets using a support rod, with the flame outlets positioned perpendicular to the sample surface. Liquefied petroleum gas is used as the heat source to supply gas to the two burners of the fire stability testing instrument, with the burner nozzle positioned 30mm away from the board surface. According to the standards, a load is suspended from the lower end of the sample, and the burner is ignited. A thermocouple is used to measure the temperature at a distance of 5mm from the board surface. In the initial stage of the test, the charred protective paper that falls on the thermocouple should be removed without shaking the sample. By adjusting, the temperature should be controlled within (800 ± 30) °C within 3 minutes, and this temperature should be maintained throughout the test. The timing starts from when the sample catches fire until the sample breaks. The time taken for each sample to burn through is recorded, and the minimum value among the five samples is taken as the fire stability of this group of samples, accurate to 1 minute.

Beijing Xingsheng Zhuorui Instrument Equipment Co., Ltd.
Phone: 18513498889
QQ: 2028696743
Phone: 010-58418090
Fax: 010-58043777
Website: www.bjkji.com
Address: No. 158, Science and Technology Park, Haidian District, Beijing
Main Projects: Oxygen Index Tester / Horizontal and Vertical Combustion Tester / Building Material Combustibility Test Furnace / Building Material Non-combustibility Test Furnace / Building Material Smoke Density Tester / Large Plate Fireproof Coating Tester / Initial Drying Crack Resistance Testing Device / Electronic Testing Machine / High and Low Temperature Testing Chamber / Low Temperature Freeze-thaw Testing Chamber / Constant Temperature and Humidity Chamber / Cigarette Paper Smoldering Performance Tester, Hardness Tester, Thickness Gauge, Concrete Instruments, Cement Testing Instruments, Mortar Testing Instruments, Slurry Testing Instruments, Geotechnical Testing Instruments, Asphalt Testing Instruments, Highway Aggregate Instruments, Waterproof Materials Instruments, Highway Rock Instruments, Pavement Testing Instruments, Pressure Testing Machine Curing Room Instruments, and Laboratory Consumables, etc.

3. Main Technical Parameters

1. Power Supply Voltage:220V ± 10% 50Hz Power:180W

2. Automatic Ignition Function

3. Dual Thermocouple Temperature Measurement

4. Digital Display of Temperature and Time

5. Dual Burners, Inner Diameter Φ9.5mm ± 0.5mm, Length approximately 100mm, with Air Adjustment Nut 10mm

6. Flame Length Adjustable from 20mm to 100mm

7. Flame Application Time and Burn Duration Adjustable within 0~99 minutes 99 seconds

8. Automatic Control of the Test Process.

9. Automatic Recording of Burn Time when the Sample Breaks.

10. Gas Source: The gas source for the test flame is gas or liquefied petroleum gas (recommended to use high-quality gas as much as possible)

11. Flow Adjustment Range: 100~1000mL/Min

12. Timing Accuracy (Resolution):0.1s

13. Test Temperature:800 ± 30 °C, Accuracy Level 1

14. Temperature Stabilization Time:<3min (800 ± 30) °C

15. Sample:300mm (Length) × 50mm (Width), with holes drilled 25mm from both edges

16. Suspended Load:7, 10, 12, 15, 17, 20N

17. Dimensions (mm): 700 (Width) × 300 (Depth) × 600 (Height)

18. Packaging Dimensions:(mm)800 (Width) × 420 (Depth) × 700 (Height)

4. Design Standards:GB/T9775-2008 (ISO6308: 1980) "Paper-faced Gypsum Board"

Testing Principle: The sample is drilled and treated under specified environmental conditions. The sample is suspended between two flame outlets, with the flame outlets positioned perpendicular to the sample surface. Liquefied petroleum gas is used as the heat source to supply gas to the burners, with the burner nozzle positioned 30mm away from the board surface. A weight is suspended according to regulations, and the burner is ignited. A thermocouple is used to measure the temperature at a distance of 5mm from the board surface. In the initial stage of the test, the charred protective paper that falls on the thermocouple should be removed without shaking the sample.
