Insulated Fireproof Sleeve Features and Applications
1. Safe and environmentally friendly, protecting workers' health
2. Excellent high-temperature resistance
3. Splash-proof, multiple protection
4. Thermal insulation, energy-saving and consumption-reducing, radiation-resistant
5. Moisture-proof, oil-proof, climate aging-resistant, pollution-resistant, extending equipment lifespan
6. Ozone-resistant, voltage-resistant, arc-resistant, corona-resistant properties
7. Flame-retardant, reducing fire occurrence and spread rate
Common Areas for Insulated Fireproof Sleeves:
High-temperature areas, heating areas in industries such as steel, metallurgy, shipbuilding, and chemicals; cables, fluid pipelines, rolling mill cables, oil pipes, cutting edge cables, generator sets, electrical voltage equipment, large buildings, hydraulic systems, automotive wire harnesses, and exhaust pipes, etc.

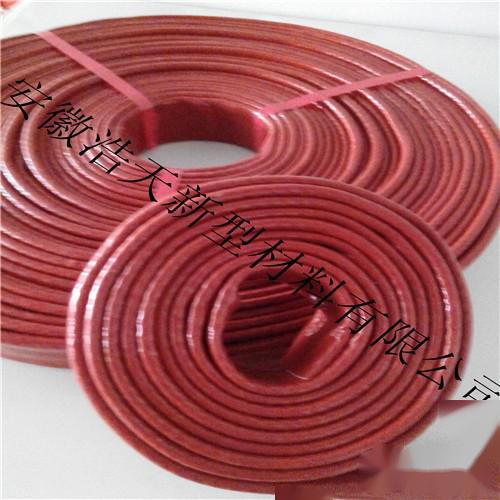

Color: Generally iron red, can be customized to different colors as per customer requirements.
Insulated Fireproof Sleeve Product Specifications
Inner Diameter (mm): Φ5mm--Φ130mm Custom sizes available
|
Inner Diameter (mm) |
Inner Diameter Tolerance (mm) |
Nominal and Tolerance (mm) |
Meters/Roll |
|
Ф5-Ф15 |
±0.20 -0.10 |
0.4 ±0.10 |
20 m |
|
Ф20 |
±0.30 -0.10 |
0.5 ±0.15 |
20m |
|
Ф25-Ф30 |
±0.40 -0.50 |
0.6 ±0.20 |
20m |
|
Ф35-Ф40 |
±0.50 -0.30 |
0.7 ±0.20 |
20m |
|
Ф45-Ф50 |
±0.80 -0.50 |
0.8 ±0.20 |
15m |
|
Ф55 |
±1.0 -1.00 |
1.0 ±0.30 |
15m |
|
Ф60-Ф65-Ф70-Ф75 |
±1.50 -1.50 |
1.5 ±0.50 |
15m. |
|
Ф80-Ф85-Ф90-Ф100 |
±2.00 -2.00 |
2.0 ±0.80 |
15m |
