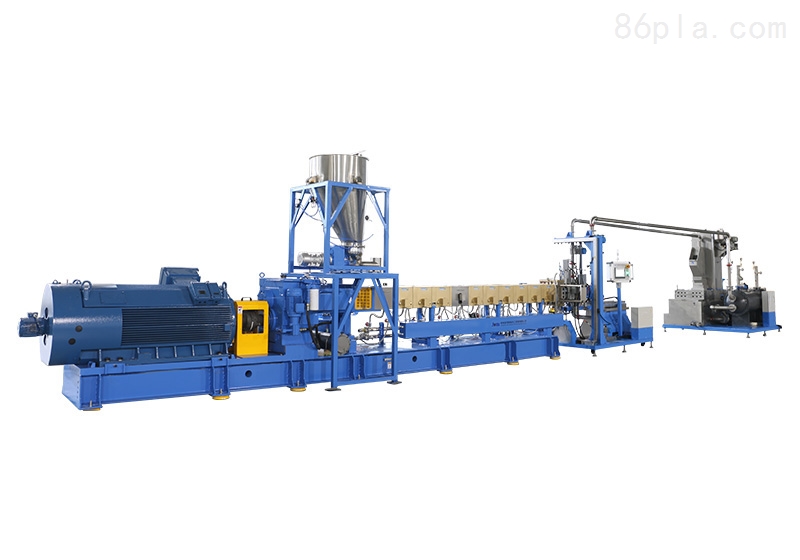

Brief Description:Energy-saving modified plastic pelletizing machines are all made of imported high-strength, high-quality carbon structural steel, ensuring durability; they fully utilize a high-pressure friction continuous heating system for automatic production, avoiding constant heating and thus saving electricity.
It has a wide range of applications and can be used for processing various materials.
2. Directly observe the wear of vulnerable parts; since it is easy to open, the wear degree of the screw elements and barrel liner can be discovered at any time, allowing for effective maintenance or replacement.
3. It possesses all the advantages of traditional equipment, achieving high output, high quality, and high efficiency.
4. Reduce production costs; when changing colors, the barrel can be quickly opened in just a few minutes for manual cleaning, thus reducing or eliminating the need for cleaning materials and saving costs.
5, High torque and high speed. Currently, the development trend of twin-screw granulation equipment is towards high torque, high speed, and low energy consumption, with high speed leading to higher productivity.
6. Improve labor efficiency. When repairing equipment, traditional machines often require the removal of the heating and cooling systems first, followed by the complete extraction of the screw. However, with the split twin-screw design, this is not necessary. Simply loosen a few bolts and turn the worm gear box handle to lift the upper half of the barrel, thus opening the entire barrel for maintenance. This not only shortens the repair time but also reduces the labor intensity.
Precautions:
1. Before starting, heat for about 40 to 50 minutes until the temperature reaches a state where it is easier to pull the motor's V-belt by hand. Pull in the normal working direction 8 to 10 times, and continue heating for about 10 more minutes; at this point, continue heating because normal production requires continuous heat supplementation; adjust the temperature according to the different properties of the plastic.
2. Before the equipment is put into normal operation, the stability of the mechanical temperature should be maintained, and the mechanical temperature should not be kept at a high or low level.
3. If the feeding is uniform, the machine's feeding speed should match the conveying speed; otherwise, it will directly affect the quality and output of the plastic pellets.
4. Before stopping, all the plastic inside the pelletizer screw must be emptied and cleaned.
5. When the main unit is shut down, the power supply should be disconnected, and before the next use, the head line plug must be disassembled and preheated separately.
Energy-saving modified plastic pelletizing machine working process:
The entire process consists of two procedures: mixing and drawing.
2. The adhesive enters the material pot from the conical hopper. After the hopper is closed, the powder rotates inside the container under the mixing paddles, while the material changes direction along the conical wall, gradually forming liquid bridges. Under the squeezing, friction, and kneading effects of the paddles and the cylinder walls on the material, the material gradually transforms into a loose substance. Then, the discharge door is opened, and the mixed granules are pushed out of the discharge hopper by the centrifugal force of the paddles.
3. The soft material with a granular structure is not formed by forced extrusion, but rather it is cut by the granulation force, where the soft material in a semi-fluid state is cut into fine and uniform particles, achieving the mutual transformation of materials.
