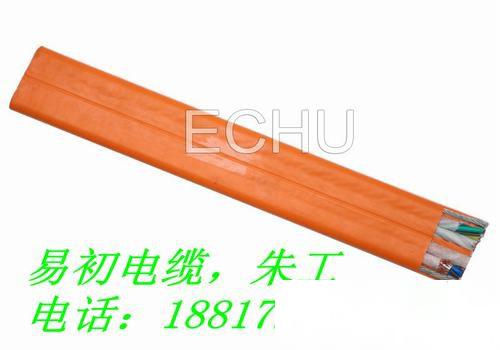

Elevator special cable, elevator video monitoring cable TVVBG
Product Summary:
Elevator accompanying control cable - Yichu cable
Product Description
Application scope:
This cable adopts special structural design, with long service life, maximizing the operational efficiency of elevator production enterprises.
Elevator control cable can provide overall electrical control under long suspension length, while bearing mechanical stress.
Elevator cable can be used for long-distance suspension occasions due to the use of steel wire core.
Adding shielding structure on the basis of ordinary elevator accompanying cable
Product features:
This cable adds a shielding structure on the basis of ordinary elevator accompanying cable, and the shielding structure has three or more functions:
For high-frequency interference - aluminum foil MAYLA wrapped shield;
Electromagnetic interference - copper mesh braided shield
Broadband interference - aluminum foil MAYLA wrapped with copper mesh braided shield
Prices rise from low to high due to different factors
Cable structure:
Conductor: multi-stranded ultra-fine high-purity oxygen-free copper wire, in compliance with VDE0295 CLASS 5 standard
Insulation: special mixed PVC insulation
Color: color representation, in compliance with GB5203.6 (yellow, white, orange, light green, pink) digital numbering
Single core line black digital white number coding, in compliance with EN50214 standard
Please specify yellow-green grounding wire
Lining layer: none
Shielding layer: available (copper mesh shield or tin-plated copper mesh shield optional)
Reinforcement: high-strength galvanized aviation steel wire (optional)
Video transmission line: high-strength military copper-clad steel conductor, low-interference special coaxial video line (optional)
Sheath: cold-resistant PVC special sheath, gray (RAL7001) or black (RAL9005)
Model representation: TVVBP, TVVBPG, TVVBP-TV, TVVBPG-TV
T: Elevator 'T' V: PVC insulation V: PVC sheath
B: Flat elevator P: Shielding structure G: Steel wire reinforcement
TV: Video transmission line
When the elevator is used as follows:
The elevator cable is generally arranged in a straight line
1. Free use length is greater than 35M
2. Running speed is greater than 1.6M/S
Consider adding load-bearing elements in the cable, which are generally galvanized soft steel wire ropes or fibers such as aramid yarn.
When the elevator cable is arranged in a clover shape
1. Free hanging length is greater than 80M
2. Running speed is 4.0M-10.0M/S
Consider adding load-bearing elements in the cable, which are generally galvanized soft steel wire ropes.
