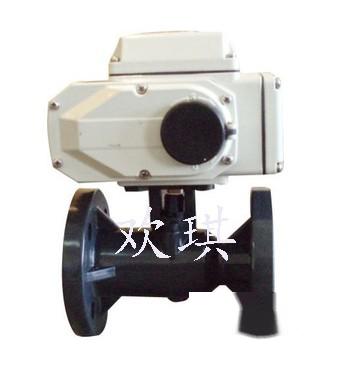

Electric UPVC ball valve is a product provided by Shanghai Huanqi for users. The electric UPVC ball valve mainly consists of HQ electric actuator and UPVC ball valve, serving as a control valve. The electric UPVC ball valve is also a new environmentally friendly product for fluid process industrial control. Among remote control valves in pipelines, the electric UPVC ball valve stands out with its unique design, excellent quality, exquisite manufacturing process, and near-reliable operation. Shanghai Huanqi offers users rich experience and unique design features in development and manufacturing. The electric UPVC ball valve is widely used in fields such as water treatment equipment, environmental engineering, power plants, steel industry, petroleum, chemical industry, textile dyeing, coal mining, electronics, automotive, heating and cooling, pharmaceuticals, municipal engineering, shipbuilding, metallurgy, and light industry.
Features of the electric UPVC ball valve:
Powerful functions: smart, proportional, and switch types are all available; compact size: volume is only about 35% of similar products.
Lightweight and user-friendly: weight is only about 30% of similar products; reliable performance: bearings and electrical components use imported products.
High strength and wear resistance: high strength, good wear resistance, safety assurance: 1500V pressure resistance, specially designed cable lock.
Simple matching: uses single-phase power supply, external wiring is particularly simple.
Convenient to use: no lubrication or inspection required, waterproof and rustproof, can be installed at any angle.
Protection devices: dual limit, overheat protection, overload protection.
Multiple speeds: full stroke time ranges from 10 to 150 seconds, meeting different working conditions.
Characteristics of the ball valve in the electric UPVC ball valve:
Wide operating temperature range: UPVC up to 55 degrees, FRPP up to 70 degrees, PPH up to 80 degrees, CPVC up to 95 degrees, PVDF up to 140 degrees.
Possesses strength and toughness, excellent chemical corrosion resistance, UPVC ball valve has flame-retardant properties of self-extinguishing, low thermal conductivity, approximately 1/200 that of steel, the content of heavy ions in the medium exceeds ultra-pure water standards, sanitary indicators meet national hygiene standards, smooth inner wall ensures minimal friction resistance and adhesion during fluid transportation, lightweight, equivalent to 1/5 of steel pipes and 1/6 of copper pipes, easy to install, can be connected by flange, threads, or other methods.
Features of HQ electric actuator:
1. Shell - made of aluminum alloy, lightweight, with both inner and outer surfaces treated with anodic oxidation, and the outer surface coated with polyester powder for strong corrosion resistance.
2. The motor uses SPG squirrel-cage motor, providing high output torque, and has an internal thermal protection switch for temperature control to prevent motor damage.
3. When not powered, the clutch handle can be manually operated; when powered, the clutch automatically resets.
4. The position indicator is installed on the central shaft, allowing observation of the valve position, with an optional indicator light (SLU).
5. The dryer controls temperature to prevent moisture condensation inside the actuator, keeping internal electrical components dry.
6. Limit switches are controlled by a cam mechanism, with a simple adjustment mechanism for precise and convenient position setting.
7. The torque switch provides overload protection to prevent motor damage (set before leaving the factory, users should not change settings randomly).
8. Self-locking features prevent reverse rotation, ensuring stability and reliability of the rotating parts.
9. The mounting base dimensions conform to ISO5211 international standards, the drive shaft sleeve can be removed for processing as needed, providing strong adaptability and allowing for both vertical and horizontal installation.
10. Wiring terminal - compact and reasonable layout, terminal diameter is 2.5mm, high pressure, secure connection.
11. Shanghai Huanqi electric UPVC ball valve HQ series intelligent electric actuator worm gear - adopts a concave wheel design, large contact surface with worm, high torque transmission, smooth and wear-resistant, long service life.
12. PCU board - compact and reasonable structure, integrated within the casing.
