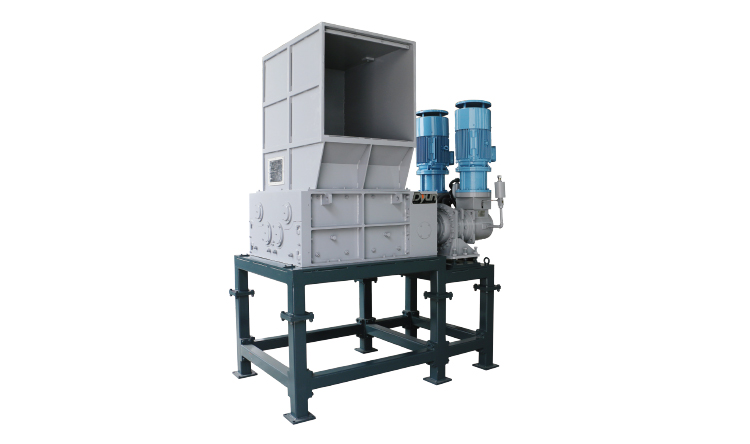

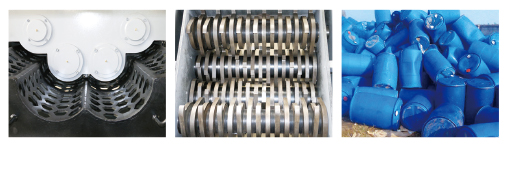

The DYFSS series four-shaft shredder is a versatile and multi-functional machine, designed with standardized and modular components. This design ensures good interchangeability of parts. The auxiliary blades are precision-forged, while the main blades are made from special alloy steel using specialized manufacturing processes, resulting in high wear resistance and strength. The drive system uses intermediate gear transmission to create a differential speed relationship. This machine is suitable for shredding materials such as plastic drums, plastic crates, woven bags, circuit boards, and cardboard boxes. The output particle size can be controlled, and the machine offers high efficiency, low speed, and low noise operation.
Model | Motor Power (kw) | Blade Thickness (mm) | Main Blade Dia. (mm) | Main Blade Quantity (pcs.) | Crushing Chamber Size Max (mm) |
|---|---|---|---|---|---|
| DYFSS-9080 | 2x18.5 | 290 | Φ25 | 32 | 900x800 |
| DYFSS-100120 | 2x22 | 320 | Φ40 | 31 | 1000x1200 |
| DYFSS-130140 | 2x15+2x30 | 430 | Φ50 | 28 | 1300x1400 |
Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements. | |||||
