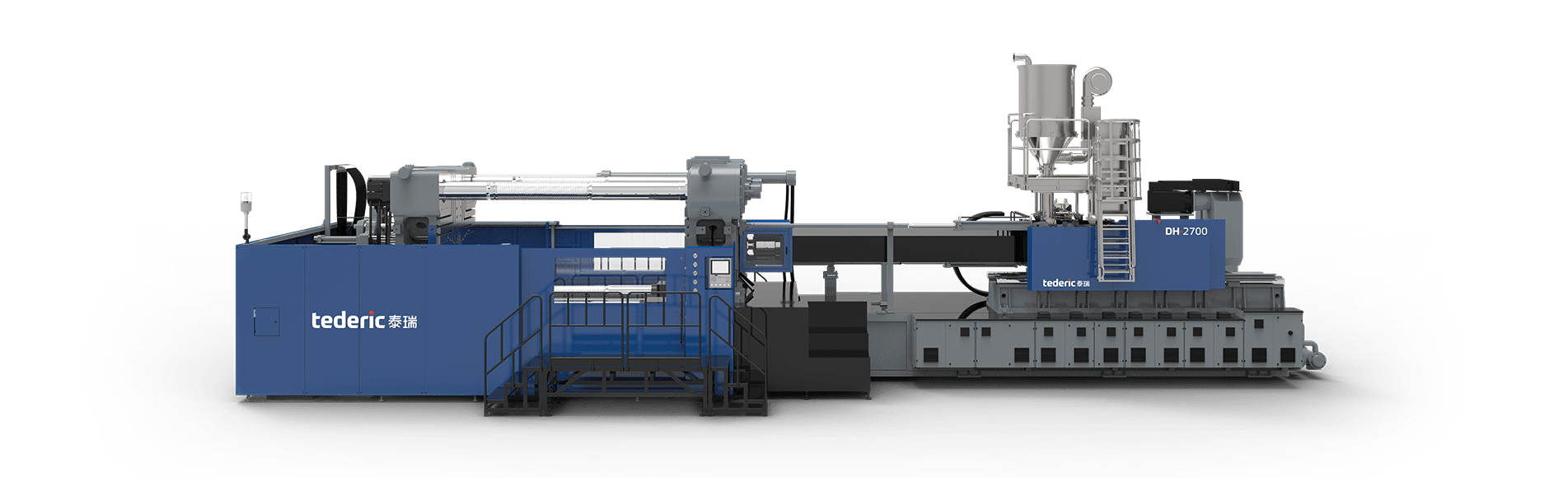

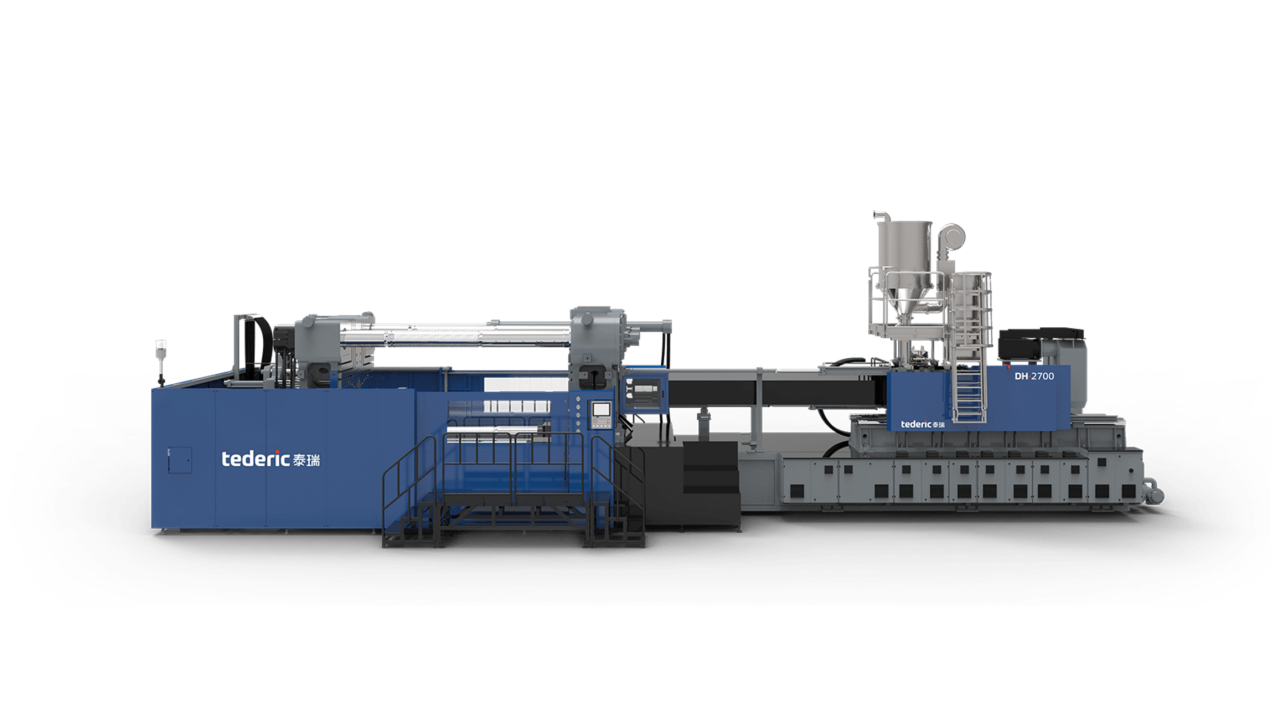

DH Two-Plate Injection Molding Machine

Component Introduction

• Stable Synchronized Clutch Structure: The clutch cylinder has a buffer, ensuring precise locking without impact; the tie bars are positioned stably and evenly loaded.

• Large Mold Capacity and Wide Mold Opening Stroke: The unique characteristics of the two-plate structure provide a large mold capacity and wide mold opening stroke, accommodating more molds;
• Diagonally Balanced Cylinder Layout: High-speed moving mold cylinders are arranged diagonally for balanced layout, ensuring smooth mold opening and closing operations, faster speeds, and effectively reducing dry cycle time.

• Injection Unit Barrel Support Structure: Additional barrel support ensures accurate and reliable injection alignment. The injection unit can rotate, making barrel maintenance easier.

• High-Strength Overall Support Structure: Ensures stable support for the entire injection structure, guaranteeing precise operation.

• Rational Oil, Water, and Electrical Layout: Centralized system layout on the rear side of the moving platen makes the oil, water, and electrical lines neater, more aesthetically pleasing, and safer.

• Modular Electrical Control Cabinet Design: The electrical control cabinet is designed with modular components, separating low-voltage, high-voltage, and servo control cabinets for a more rational and safer configuration.

• Premium Pre-plasticizing Motor Configuration: Configurable premium pre-plasticizing motors based on different injection volume requirements.

Industries and Applications
