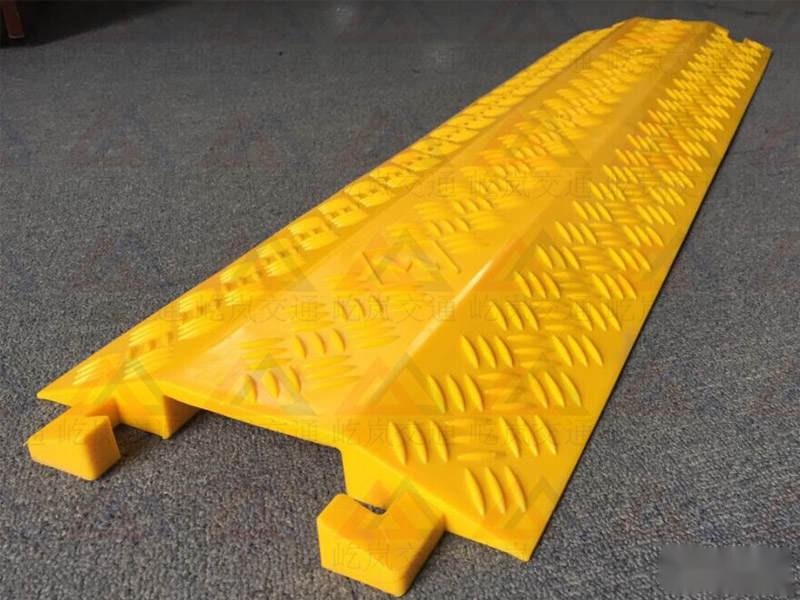

Daqing Cable Wiring Board, Xi'an Cable Wiring Board, 4-Hole Cable Wiring Board
Usage of the Wiring Board:
Place the wiring board where the wiring is needed, connect each piece together, put the wires inside, and close the cover.
Choose a flat surface for placing the wiring board, such as roads or exhibition venues.
There are single-slot, double-slot, triple-slot, four-slot, and five-slot wiring boards. For instance, if there are two wires, choose a two-hole wiring board.
Features and Uses:
Wiring boards are used for stage lighting wiring, shopping mall wiring, engineering departments, exhibition companies, and power companies for construction wiring, community road wiring, etc. They are essential safety protection equipment for many stages, studios, outdoor performance venues, cultural groups, etc., ensuring safety during wiring.
Yilan Traffic Warm Reminder: For more information about traffic facility products, please call customer service or visit the official website.
Rubber wiring channels have a very wide range of applications, such as factory workshop aisles, hotel parking lots, exhibition halls, large performance centers, sports venues, and other areas with vehicle traffic. They are also needed in garden communities, government agencies, and parking lots of telecommunications and power companies, as well as in large supermarkets, state-owned warehouses, and places where people and goods converge.
Daqing Cable Wiring Board, Xi'an Cable Wiring Board, 4-Hole Cable Wiring Board
All products from Yilan Traffic support Alipay transactions, and online remittances are free of charge. We only receive payment after you confirm satisfaction with the goods, ensuring the safety of the payment!
With excellent service and quality, Yilan Traffic is your right choice!
A Class Straight Board:
Middle Double Slot Specifications: 1000*450*70mm Slot diameter: 50*50mm Weight: 13 kg
Double Slot Specifications: 800*300*45mm Slot diameter: 30*25mm Weight: 7 kg
Middle Double Slot Specifications: 800*430*65mm Slot diameter: 50*50mm Weight: 12.5 kg
Large Double Slot Specifications: 660*580*105mm Slot diameter: 90*90mm Weight: 19 kg
Triple Slot Specifications: 1000*345*50mm Slot diameter: 30*30mm Weight: 12 kg
Triple Slot Specifications: 800*430*50mm Slot diameter: 30*30mm Weight: 12 kg
Large Triple Slot Specifications: 800*520*85mm Slot diameter: 65*65mm Weight: 14.5 kg
Double Slot Specifications: 800*500*65mm Slot diameter: 50*50mm Weight: 16.5 kg
Five Slot Specifications: 800*500*50mm Slot diameter: 30*30mm Weight: 12.5 kg
A Class Straight Boards can be equipped with 90° corners and three-way corners.
B Class Straight Board:
3-Wire Slot 1000mm*310mm*55mm (3 Wire Slot) Hole diameter: 35x35mm
3-Wire Slot 900mm*500mm*75mm (3 Wire Slot) Hole diameter: 55x65mm
4-Wire Slot 770mm*485mm*65mm (4 Wire Slot) Hole diameter: 40x40mm
5-Wire Slot 900mm*500mm*50mm (5 Wire Slot) Hole diameter: 32x35mm
2-Wire Slot 900mm*620mm*100mm (2 Wire Slot) Hole diameter: 80x90mm
Daqing Cable Wiring Board, Xi'an Cable Wiring Board, 4-Hole Cable Wiring Board
C Class Straight Board:
Small Double Slot 1000*250*50mm Slot diameter: 32*35mm Weight: 7 kg
Triple Slot 1000*300*50mm Slot diameter: 35*32mm Weight: 9 kg
Large Double Slot 900*580*90mm Slot diameter: 80*95mm Weight: 22 kg
Triple Slot 900*500*85mm Slot diameter: 70*65mm Weight: 15 kg
Four Slot 900*500*60mm Slot diameter: 40*45mm Weight: 15 kg
Five Slot 900*500*50mm Slot diameter: 30*40mm Weight: 14 kg
Middle Single Slot 1000*260*70mm Slot diameter: 50*70mm Weight: 8.5 kg
Large Single Slot 1000*580*120mm Slot diameter: 125*100mm Weight: 22 kg
Company Statement: Any faulty cable wiring board will never leave the factory; strict quality control is enforced.
