Installation steps:
1. Lay the dedicated line groove along the dedicated line.
2. Open the top cover and place the dedicated cable in the groove.
3. Close the cover and vehicles can pass freely.
Our company has developed a series of line groove products:
Class A straight plate:
Medium slot specifications: 1000*450*70mm Slot diameter: 50*50mm Weight: 13 kg
Second slot specifications: 800*300*45mm Slot diameter: 30*25mm Weight: 7 kg
Medium second slot specifications: 800*430*65mm Slot diameter: 50*50mm Weight: 12.5 kg
Large second slot specifications: 660*580*105mm Slot diameter: 90*90mm Weight: 19 kg
Third slot specifications: 1000*345*50mm Slot diameter: 30*30mm Weight: 12 kg
Third slot specifications: 800*430*50mm Slot diameter: 30*30mm Weight: 12 kg
Large third slot specifications: 800*520*85mm Slot diameter: 65*65mm Weight: 14.5 kg
Fourth slot specifications: 800*500*65mm Slot diameter: 50*50mm Weight: 16.5 kg
Fifth slot specifications: 800*500*50mm Slot diameter: 30*30mm Weight: 12.5 kg
All class A straight plates can be equipped with 90° corners and three-way corners.
Daqing Cable Protection Board Xi'an Cable Protection Board 3-hole Cable Protection Board
Product features:
1. The product is made of high-strength rubber,
2. Strong and durable, pressure-resistant, long service life, no noise, good shock absorption, good pressure resistance;
3. Special process ensures lasting color, bright colors, not easy to fade;
4. Clear colors, clear markings, high visibility in both day and night;
5. Mainly used for cable crossing on roads, temporary construction or stage use, good pressure resistance, safety and convenience, and beautiful appearance;
6. Easy to install, can be used repeatedly;
7. Excellent wear resistance
8. Surface with anti-slip surface texture
9. Oil and many solvent resistant
10. Working temperature range: -15℃ to 65℃
11. Complete product accessories: elbows
12. Safety warning sign synthetic cover surface
13. Rubber stage cable groove plate with special bottom grip design, no need to damage the ground for installation

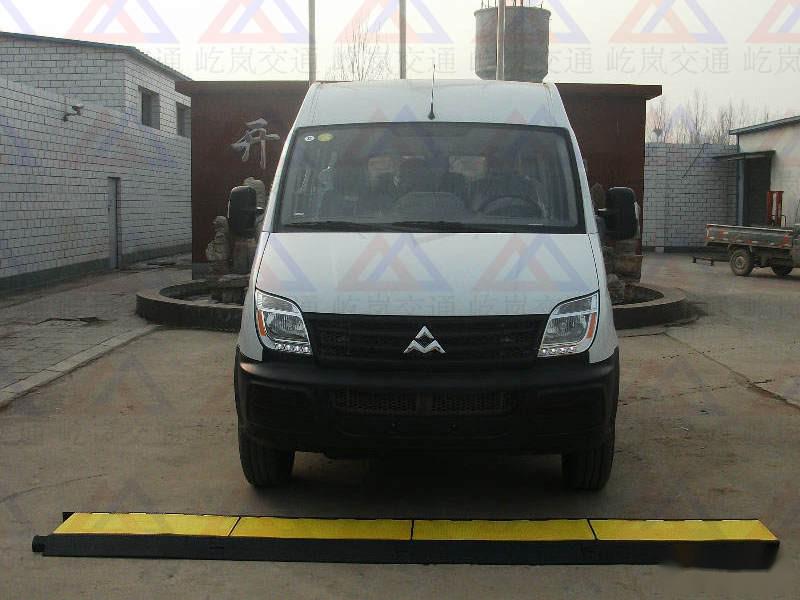

14. High pressure bearing, suitable for heavy trucks, forklifts, generators, OB vans, container trucks
