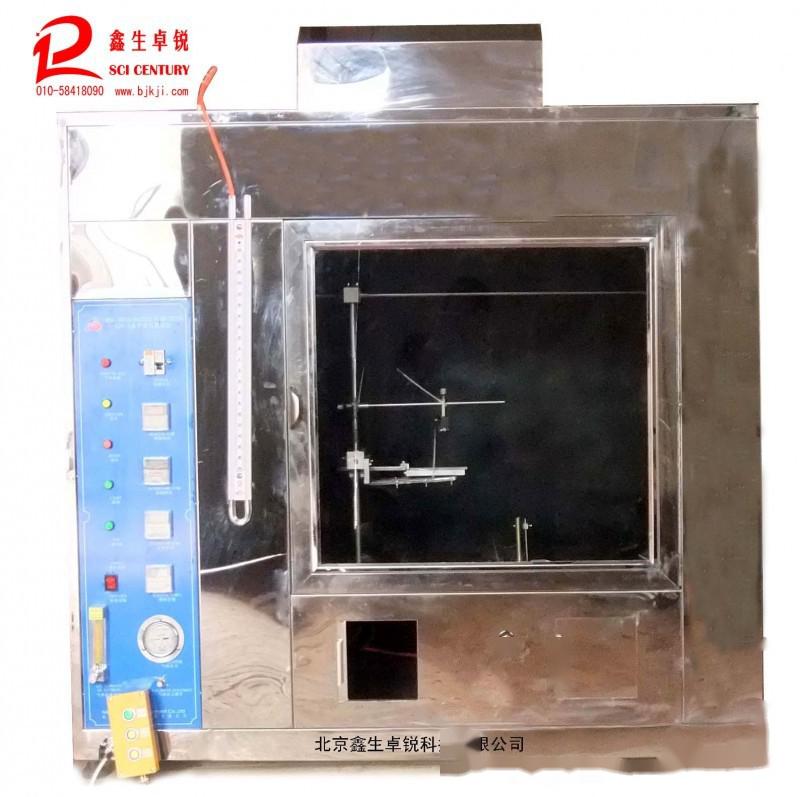

CZF-5 Horizontal and Vertical Burning Tester

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
We provide high-quality and affordable horizontal burning test instruments for several partners and direct users every working day! Welcome to become a user of Beijing Xingsheng Zhuorui Technology!

     Introduction of CZF-5 Horizontal and Vertical Burning Test Instrument:

Also known as vertical and horizontal burning test machine, this instrument is used for horizontal and vertical combustibility tests of plastic components in electrical equipment and appliances. The product's outer casing is made of steel and is equipped with a transparent observation window. The digital timer records the flame application time, after-flame time, and after-glow time. This device has an attractive appearance, is easy to use, and performs reliably. It comes with a built-in fan to safely discharge combustion smoke; the horizontal and vertical burning sample clamps are motor-controlled, eliminating the need for manual adjustment; after the flame application ends, the Bunsen burner automatically retracts, reducing cumbersome manual operations.

     The CZF-5 horizontal and vertical burning test instrument is developed according to the standards ANSI/UL94, IEC60950-1, IEC695-2-2, and GB/T2408-2008, fully meeting the technical requirements specified by the national standard GB/T2408. It can conduct both horizontal and vertical burning tests on plastics using a single instrument. Compared to similar instruments, it features high automation, accurate timing, and automatic display of test results, and can be used in conjunction with dedicated sample supports.

     The CZF-5 horizontal and vertical burning test instrument specifies that in the laboratory, a small flame source ignites samples placed in horizontal and vertical orientations, measuring the burning rate of the samples, including time for flaming combustion and non-flaming combustion.

      The burning test is a simulated safety test item as specified by standards such as IEC 60950, UL 94, IEC707, IEC 695-2-2, and ISO1210.

       The burning test uses a Bunsen burner of specified dimensions and a specific gas source (methane or natural gas), applying flame at a certain height and angle to the test samples in horizontal or vertical positions for a set duration, evaluating their combustibility based on the ignition duration and whether the underlying ignitable materials are ignited.

       The CZF-5 horizontal and vertical burning test instrument can assess the combustibility of fire protection enclosures for portable devices; fire protection enclosures for stationary devices; materials housed within fire protection enclosures; materials classified as V-0, V-1, V-2, HB, 5V, HF-1, HF-2, HBF, or foam plastics. It is suitable for research, production, and quality inspection departments of electrical and electronic products and their components, including lighting equipment, low-voltage electrical appliances, household appliances, machine tool electrical components, motors, power tools, electronic instruments, electrical measuring instruments, information technology equipment, electrical appliances, electrical connections, and accessories, as well as industries involving insulating materials, engineering plastics, or other solid combustible materials.

The application scope and standards of the CZF-5 horizontal and vertical burning test instrument

National Standard Design: GB-T2408-2008 "Testing the Burning Performance of Plastics - Horizontal and Vertical Methods"

Applicable Standards: UL94-2006, GB-T 5455, GB-T13488, GB-T5169, IEC60695-11-3, IEC60695-11-4,

IEC60950-1, IEC695-2-2
