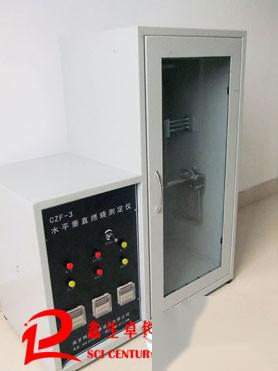

CZF-3 Horizontal and Vertical Burning Tester

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
CZF-3 Horizontal and Vertical Burning Test Instrument Professional Manufacturer!

The CZF-3 Horizontal and Vertical Burning Test Instrument, also known as the Horizontal and Vertical Burning Tester, is used to determine the flame combustion and non-flame combustion time, burning length, and burning rate of samples placed in horizontal and vertical positions when ignited by a small flame ignition source. It is used for testing the flame-retardant properties of textile fabrics.

Application Range of CZF-3 Horizontal Burning Test Instrument: Suitable for laboratory determination methods for the burning performance of plastic and non-metal material samples under a 50W flame condition, in either horizontal or vertical orientation.

Beijing Xingsheng Zhuorui Instrument Equipment Co., Ltd.
Phone: 18513498889
National Service Hotline: 400699-2150
Phone: 010-58418090
Fax: 010-58043777
Website: www.bjkji.com
Address: No. 158, Technology Park, Haidian District, Beijing
Main Projects: Combustion and flame-retardant instruments, analytical instruments, laboratory instruments, testing machines, test chambers, detection instruments, optical instruments, etc., including oxygen index testers, horizontal and vertical combustion instruments, building materials combustibility test furnaces, building materials non-combustibility test furnaces, building materials smoke density testers, large plate fire retardant coating testers, early drying crack resistance testing devices, electronic testing machines, high and low temperature test chambers, low temperature freeze-thaw test chambers, constant temperature and humidity chambers, cigarette paper smoldering performance testers, concrete instruments, cement testing instruments, mortar testing instruments, slurry testing instruments, geotechnical testing instruments, asphalt testing instruments, highway aggregate instruments, waterproof material instruments, highway rock instruments, pavement testing instruments, pressure testing machine curing room instruments, and laboratory consumables, etc.

Technical Specifications of CZF-3 Horizontal and Vertical Burning Test Instrument:

1. Ambient Temperature: -10℃ to 30℃

2. Relative Humidity: ≤85%

3. Power Supply Voltage and Power: 220V±10% 50HZ Power less than 100W

4. Microcontroller control, automatic storage of test data, automatic timing for reading.

5. Automatic ignition Bunsen burner flame application time options: 10s, 12s, 30s, accuracy ±0.2s.

6. Inner diameter of Bunsen burner: 9.5mm±0.3mm, can be tilted within a range of 0-45°

7. Height of blue flame from Bunsen burner: 15mm-45mm adjustable, equipped with a flame height ruler

8. Maximum thickness of sample clamp: ≤13mm

9. Vertical adjustment distance of sample clamp: ≤100mm, horizontal adjustment distance of sample clamp: ≤70mm

10. Horizontal sample clamp can be rotated 90° for textile samples (optional)

11. Bunsen burner automatic ignition time: arbitrarily settable

12. Inner diameter of Bunsen burner 9.5mm±0.3mm

13. Gas Source: Liquefied petroleum gas

14. Instrument weight: approximately 40kg

15. Instrument dimensions: approximately 890mm×370mm×1000mm

Combustible Gas Source for CZF-3 Horizontal Burning Test Instrument:

98% Methane, Natural Gas, Liquefied Petroleum Gas, Coal Gas

Design Standards for CZF-3 Horizontal Burning Test Instrument:

GBT2408-1996 "Testing Methods for the Burning Performance of Plastics - Horizontal and Vertical Methods"

Standards Compliance: GB/T 13488, GB/T 10707, GB/T 5455, IEC 60695-11-10
