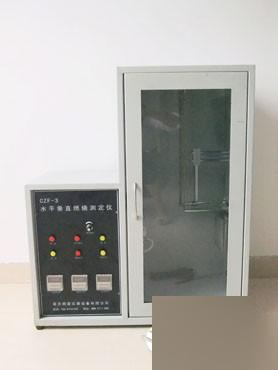

CZF-3 Horizontal and Vertical Burning Tester

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials
CZF-3 Horizontal and Vertical Combustion Testing Instrument Professional Manufacturer! CZF-3 Horizontal and Vertical Combustion Testing Instrument, also known as Horizontal and Vertical Combustion Tester, is used to determine the flame combustion and non-flame combustion time, burn length, and burning rate of samples placed in horizontal and vertical directions after igniting with a small flame ignition source, assessing the flame retardant properties of textile fabrics. Scope of Application for CZF-3 Horizontal Combustion Tester: Suitable for the laboratory determination method for the combustion performance of plastic and non-metal material samples under 50W flame conditions, either horizontally or vertically. Technical Specifications of CZF-3 Horizontal and Vertical Combustion Testing Instrument: 1. Ambient Temperature: -10℃ to 30℃ 2. Relative Humidity: ≤85% 3. Power Supply Voltage and Power: 220V ± 10% 50HZ Power less than 100W 4. Microcontroller control, automatic storage of test data, automatic timing for reading. 5. Automatic ignition of the Bunsen burner with flame application times of 10s, 12s, and 30s selectable, accuracy ±0.2s. 6. Inner diameter of the Bunsen burner: 9.5mm ± 0.3mm; the burner can tilt within a range of 0-45°. 7. Height of the blue flame of the Bunsen burner: adjustable from 15mm to 45mm, equipped with a flame height scale. 8. Maximum thickness of sample clamp: ≤13mm 9. Vertical adjustment distance of the sample clamp: ≤100mm; horizontal adjustment distance of the sample clamp: ≤70mm. 10. Horizontal sample clamp can be folded 90° for textile samples (optional). 11. Automatic ignition time of the Bunsen burner: freely settable. 12. Inner diameter of the Bunsen burner: 9.5mm ± 0.3mm. 13. Gas source: Liquefied petroleum gas. 14. Instrument weight: approximately 40kg. 15. Instrument dimensions: approximately 890mm × 370mm × 1000mm. Combustible Gas Source for CZF-3 Horizontal Combustion Tester: 98% Methane, Natural Gas, Liquefied Petroleum Gas, Coal Gas. Design Standards for CZF-3 Horizontal Combustion Testing Instrument: GBT2408-1996 "Plastic Combustion Performance Testing Methods - Horizontal and Vertical Methods" Compliant Standards: GB/T 13488, GB/T 10707, GB/T 5455, IEC 60695-11-10. Continuous technological upgrades but always at a fair price! Our prices are not the lowest, but the quality is indeed excellent! High cost-performance ratio is the long-term choice! Beijing Xingsheng Zhuorui Technology Instrument provides ready stock of Horizontal Combustion Testing Instruments, confirming orders (before 5 PM) and shipping on the same day! Orders confirmed after 5 PM will be shipped the next day! We provide high-quality and affordable Horizontal Combustion Testing Instruments for several partners and direct users every working day! Welcome to become a user of Beijing Xingsheng Zhuorui Technology Instrument! For download links, please click: GBT2408-1996 "Plastic Combustion Performance Testing Methods - Horizontal and Vertical Methods" GB/T 13488 "Determination of Rubber Combustion Performance - Vertical Burning Method" GB/T 5455 "Textiles Combustion Performance Testing - Vertical Method"
Product Consultation
Supplier
Beijing Xinsheng Zhuorui Technology Co., Ltd.
location
China Beijing
Main products
Oil fuel calorific value tester, comprehensive combustion tester for toys, thermal conductivity meter, safety net flame retardant performance tester, horizontal and vertical combustion test instrument, oxygen sensor, building materials combustion calorific value tester, biomass fuel calorific value tester, initial drying cracking resistance tester, 45-degree combustion test instrument, tracking test for leakage current, building materials combustion calorific value test instrument, oxygen bomb combustion test device, microcomputer flash point tester, smoke density tester, glowing wire test instrument, electrical conduit flame retardant testing instrument, building materials non-combustibility test furnace, combustion performance testing equipment, flame retardant wood combustion test device, oxygen index tester, fireproof coating testing instrument, vertical combustion tester for wires and cables, vertical combustion tester for textiles, flooring materials combustion test device, alcohol lamp combustion test instrument, ash melting point tester, needle flame tester, ignition temperature tester, petroleum trace moisture meter, building materials difficult-to-burn test furnace, building materials combustibility test furnace.
About Us
Beijing Xinsheng Zhuorui Technology Co., Ltd. (short for Zhuorui Technology), formerly known as Beijing Zhuorui Instrument Equipment Factory, is a professional manufacturing entity integrating scientific research, development, manufacturing, sales, and service. With a strong technical foundation and emphasis on independent development, the company actively adopts advanced domestic and international technology standards, seeking to promote collaboration and complementarity with universities, colleges, and research institutions to achieve a high starting point in new product development. Under the guidance of relevant authorities and experts from research institutes, the company's products are continuously improved and updated. To facilitate purchases and sales across the country, a production base has also been established in Nanjing, creating a north-south synergy. The company is a specialized manufacturer of combustion performance testing instruments, with an experienced professional technical team. Through cooperation with multiple research units and universities in Beijing, it has developed into a composite company primarily producing combustion and flame retardant instruments. The company's business philosophy is to provide accurate and reliable testing instruments and equipment for China's scientific research, industrial manufacturing, geological exploration, and road construction. With an international team and leading European and American technologies, as well as excellent product quality, reasonable prices, and superior after-sales service, the company has won praise from many new and old customers, providing professional and reliable instruments, equipment, and solutions, and establishing extensive and friendly cooperative relationships. Its products are not only sold domestically but also exported to regions such as the United States, Japan, the Philippines, Tanzania, Thailand, Hong Kong, and Taiwan. To meet the needs of future development, the company maintains long-term strategic partnerships with universities such as the University of Science and Technology of China, Beijing Institute of Technology, Nanjing Tech University, and Southeast University, regularly organizing learning exchanges and sharing research results. The company has a professional team with long-term experience in combustion control technology research and practical experience, fully mastering core proprietary technologies. In particular, the company leads the industry in intelligent oxygen index instrument automatic computer control, single burning item test apparatus for building materials, cable and optical cable combustion test apparatus, building component test furnace, infrared smoke concentration measurement, surface burning of building materials, and combustion performance testing and control technology for soft furniture and components. Some instruments can completely replace imported equipment. The company has a complete R&D center, processing and testing base, a fast marketing network, and an after-sales service system. The company's business division produces, sells, and operates concrete instruments, cement testing instruments, mortar testing instruments, mud testing instruments, soil testing instruments, asphalt testing instruments, highway aggregate instruments, waterproof material instruments, highway rock instruments, pavement testing instruments, pressure testing machine curing room instruments, and laboratory consumables, among hundreds of other products. These have been widely used in quality inspections in the fields of building materials production, construction, road and bridge construction, water conservancy projects, machinery, transportation, petroleum, and chemicals. Zhuorui Technology is committed to providing professional and precise instrument products for universities, enterprises, and organizations, and offers one-stop services including installation, commissioning, function improvement, and maintenance of instruments and equipment. The customer base covers various fields such as manufacturing, research, education, building materials, energy, and communications. The company has established long-term cooperative relationships with domestic and foreign testing instrument manufacturers, acting as an agent for instruments and equipment from manufacturers in Beijing, Tianjin, Shanghai, Wuxi, and Jinan, strictly controlling quality and offering more favorable prices! New Zhuorui! New journey! We warmly welcome friends from all walks of life, both old and new, to visit and guide us. We are willing to work hand in hand with users, leveraging cutting-edge technology, high-quality products, and comprehensive after-sales service to create a glorious future together. We strive to build a powerful brand enterprise!
