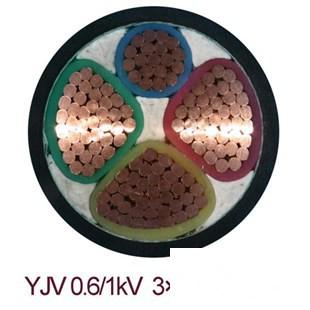

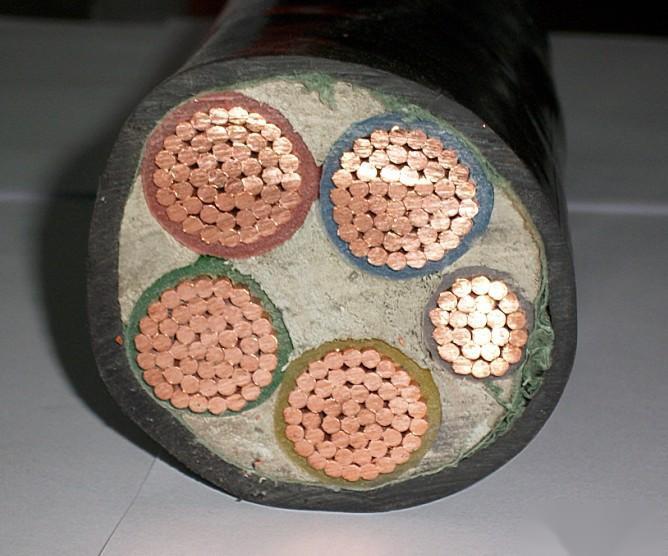

Cross-linked Polyethylene Insulated Cable, YJV Low Voltage Cable
Construction Materials-Other Building Materials
Expand
Product Content
Category
Construction Materials-Other Building Materials
Low Voltage Power Cables 1. Standards GB/T12706.2-2008 Rated voltage 1KV (Um=1.2KV) to 35KV (Um=1.2KV) extruded insulated power cables and accessories IEC60502-2:2005 Rated voltage 1~30KV extruded insulated power cables and accessories 2. Usage Requirements Operating Temperature: Rated operating temperature of the conductor 90℃ Conductor short-circuit temperature: Temperature shall not exceed 250℃, duration not more than 5 seconds. Installation laying temperature: Cable installation laying temperature not lower than 0℃ Laying in air: Ambient temperature 40℃ Laying in soil: Ambient temperature 25℃ 3. Installation and Use Selection Method: The rated voltage of the cable is expressed as U0/U(Um): U0 is the rated power frequency voltage between the conductor and ground or metal shield designed for the cable, U is the rated power frequency voltage between conductors designed for the cable, Um is the system voltage that the equipment can withstand. Select the specifications and models of the cable based on the laying environment and load conditions. Non-armored type: Suitable for overhead, indoor, tunnel, cable trench, and other occasions where it cannot withstand mechanical external forces. The armored type can be directly buried underground in addition to the conditions applicable to the non-armored type. It can withstand a certain degree of mechanical external forces. Single-core cables are not allowed to be laid in pipelines that generate magnetism. In flammable, explosive, chemically corrosive, and high or low-temperature environments, special models of cables should be selected.
Product Consultation
Supplier
Henan State Grid Cable Co., Ltd.
location
HenanProvince
About Us
Henan State Grid Cable Co., Ltd. is a professional manufacturer of wire and cable, integrating scientific research and production as a large-scale joint-stock enterprise with a registered capital of 110 million yuan. The company is located in the Guodian Modern Industrial Zone on Xinzhen Road, Zhengzhou, adjacent to Zhengzhou South China City and Huashanghui, enjoying a superior geographical location. The company currently has more than 1,000 employees, including over 360 technical personnel and 90 engineers. It possesses 190 sets of advanced cable production equipment, equipped with state-of-the-art process equipment and first-class process levels, along with comprehensive testing methods. The annual production capacity (output value) for wires and cables can reach 10 million kilometers. The company's main products include: cross-linked polyethylene insulated power cables up to 35kV (including fire-resistant and flame-retardant types), low-voltage 0.6/1kV polyvinyl chloride (cross-linked polyethylene) insulated power cables (including fire-resistant and flame-retardant types), control cables (including fire-resistant and flame-retardant types), 1-35kV aerial insulated cables, steel wire (steel tape) armored power cables, 1kV parallel bundled conductors, low-smoke halogen-free (low-smoke low-halogen) power cables, copper-plastic wires, pre-branch cables, aluminum stranded wires, aluminum alloy stranded wires, aluminum alloy cables, mineral insulated cables, high-temperature and cold-resistant cables, photovoltaic cables, and other products, with a full range of models and specifications. The company's products are widely used in airport construction projects, real estate development projects, urban and rural power grid transformation projects, power plants, and other enterprise renovation and expansion projects, as well as in the petroleum, chemical, municipal, large venues, civil construction, and various sectors of the national economy.
