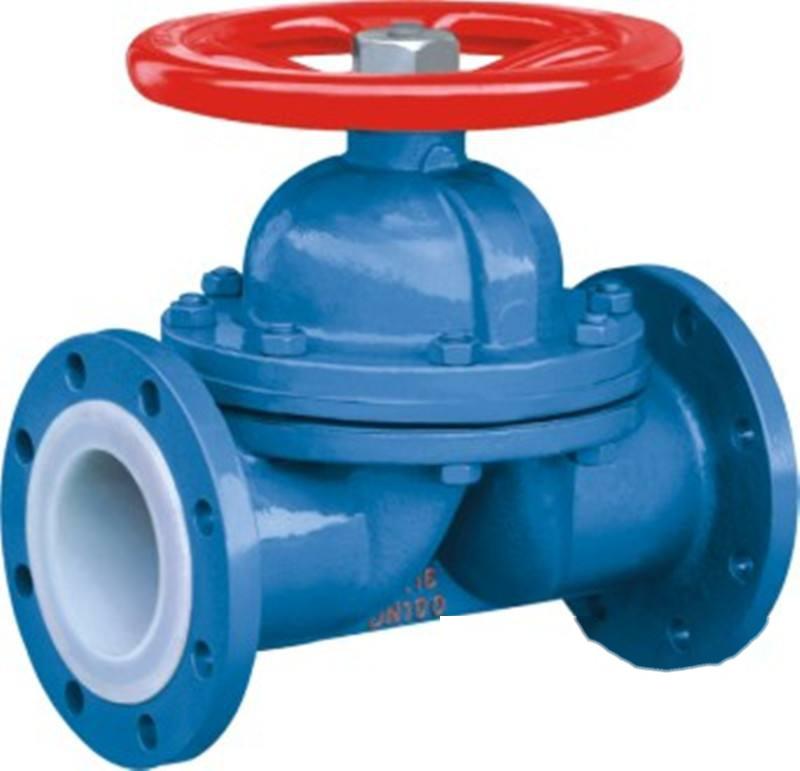

Product Name: Fluorine-lined Diaphragm Valve
Product Model: G41F46
Product Caliber: DN15~500
Product Pressure: 0.6~6.4Mpa
Fluorine-lined Diaphragm Valve Reference Standard:
Follow GB/T12239, BS 5156 standards
Structural Features of Fluorine-lined Diaphragm Valve:
1. The composite diaphragm separates the lower cavity of the valve body from the inner cavity of the valve cover, forming a straight flow channel, isolating the internal parts such as the valve stem and valve disc on the upper part of the diaphragm from the medium completely, eliminating the need for stuffing seal structure, and avoiding internal and external leakage of the medium at the same time.
2. The diaphragm, as the actuating element, is prone to fatigue fracture due to frequent opening and closing, and should be replaced regularly according to working conditions and medium characteristics.
3. The anti-corrosion performance of plastics and recommended operating temperatures can be found in the "Performance Table of Plastics Linings for Valves and Pipeline Accessories".
0tm'bt:0.0000pt;text-indent:0.0000pt;padding:0pt 0pt 0pt 0pt ;mso-pagination:widow-orphan;text-align:left;' >8. The valve can be designed for flange connection and clamp connection.9. The driving mode can be manual, electric, or pneumatic.
Flange Lined Fluorine Butterfly Valve Suitable for Temperature: ≤120℃ or ≤150℃,
Nominal Pressure: ≤1.6MPa for water supply and drainage, sewage, food, heating, gas, ships, hydropower, metallurgy, energy systems, light textiles and other industries, especially suitable for bidirectional sealing and valve body prone to rust occasions, for regulating flow and shutting off media.
