Power Cable

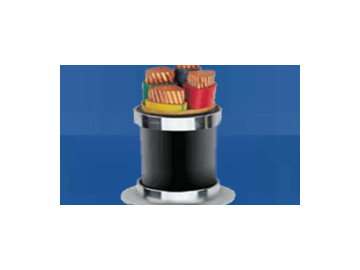

1. PVC Insulated Sheathed Power Cable
1. Purpose
This product is suitable for use in AC 50Hz power supply and distribution lines with a rated voltage of 0.6/1KV.
2. Usage Characteristics
2.1 The rated temperature of the cable conductor is 70℃.
2.2 In case of short circuit (not exceeding 5 seconds), the temperature of the cable conductor shall not exceed 160℃.
2.3 The ambient temperature during cable installation shall not be less than 0℃, and the minimum bending radius shall not be less than 10 times the outer diameter of the cable.
3. Model, Name, and Application Scope
Model Name Main Application
VV PVC Insulated PVC Sheathed Power Cable is suitable for installation indoors, in tunnels, and in conduits; the cable cannot withstand pressure or mechanical forces.
YJV Cross-linked Polyethylene Insulated PVC Sheathed Power Cable
