Product Summary:

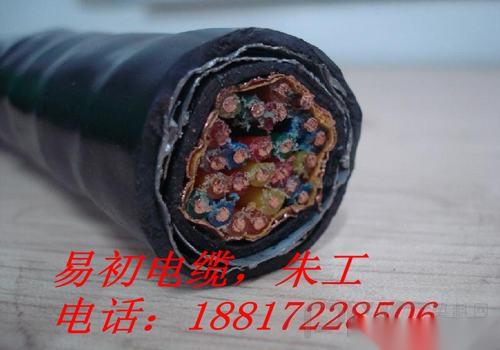

Control Cable - Yichu Wire and Cable
Product Description
Conductor: Conductors comply with GB/T3956 Type 1 and Type 2 stranded conductors
Insulation: Hard structure cable PVC/A type PVC insulation for fixed installation. Color code: Insulated cores (more than five cores) are numbered with black digits and white numbers, starting from the inner layer to the outer layer in clockwise natural number sequence. Yellow-green combined insulated core is placed in the outer layer
Core Structure: Allows filling the gaps between core wires; the cable is permitted to be wrapped with an isolation layer (PP tape or non-woven fabric). However, it will not stick to the insulated cores
Shielding: Uses overlapping wrapping with soft copper tape of 0.05~0.10mm thickness
Armoring: Armor with 0.2mm thick painted steel tape or galvanized steel tape, complying with GB/T2952.1 requirements; an inner lining layer is allowed before armoring
Sheath Color: ST1 PVC sheath in black (RAL9005) or gray (RAL7002)
Application Standard: GB9330.3
Rated Voltage: U0/U 450/750V Test Voltage: For insulation thickness ≤0.6mm: 2000V, for insulation thickness ≥0.6mm: 2500V; outer sheath test: 3000V Minimum Bending Radius
Fixed Installation: 12×D (cable outer diameter)
Operating Temperature
Fixed Installation: -10℃ to +70℃ Mobile Installation: -5℃ to +70℃
Radiation Resistance: 8×107cJ/kg
Flame Retardancy: Passes GB/T18380 flame retardant test
Chemical Resistance: Refer to the chemical resistance appendix
Application Range: Suitable for indoor installation, cable trenches, conduits, direct burial, and other fixed shielding requirements. Used for control, monitoring circuits and protection lines, signal transmission, control, and measurement of electrical instruments and distribution devices. (Such as control systems for transmission signals like metering tests, signal display, self-testing telemetry, computer networking, alarms, etc.)
