Product Summary:
Computer special cable DJYVP/DJYPVP/DJYPVP22/DJYVPR/DJYPVPR/DJYPVPR22 - Shanghai Yichu Cable
Product Description
Technical Parameters:
Rated voltage (U0/U) of the product: 300/500V
Long-term working temperature: 70℃
Ambient temperature during laying should not be lower than: Fixed laying -40℃,
Non-fixed laying -15℃
Minimum bending radius: Without armor should be less than 6 times the outer diameter of the cable
Cables with armor should not be less than 12 times the outer diameter of the cable
After stable charging for 1 minute with DC 500V at 20℃, the insulation resistance should not be less than 2500MΩ·Km
There should be no disconnection between each pair of twisted shields and between twisted shields and overall shields
The core-to-core and shield-to-shield of the cable should withstand a 50HZ, AC 2000V withstand voltage test for 5 minutes without breakdown
Application:
Suitable for electronic computers and automation connections with high anti-interference requirements and rated voltage of 500V and below. The insulation of the cable ground core is made of K-type B-class low-density polyethylene with antioxidant properties. Polyethylene has high insulation resistance, good voltage resistance, small dielectric constant, and little influence of temperature and frequency on dielectric loss. It can not only meet the requirements of transmission performance, but also ensure the service life of the cable
Shanghai Yichu Cable produces computer special cables
The models are as follows:

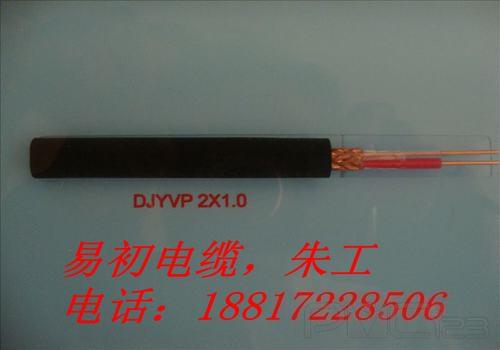

1. Double twisted pair shielded hard cable - computer cable DJYVP
2. Double twisted pair shielded hard cable - computer cable DJYPVP
3. Double twisted pair shielded + armored hard cable - computer cable DJYPVP22
4. Double twisted pair shielded soft cable - computer cable DJYVPR
5. Double twisted pair shielded soft cable - computer cable DJYPVPR
6. Double twisted pair shielded + armored soft cable - computer cable DJYPVPR22
Shanghai Yichu Cable all products are guaranteed by national standards and insured by China Ping An Company
Main products: drag chain cable, elevator accompanying cable, crane cable, servo cable, crane cable, computer cable, photovoltaic cable, shielded cable, CE cable, UL cable, national standard CCC cable, communication coaxial cable, cable for drum equipment, electrical installation cable, and security cable, etc.
Shanghai Yichu Cable is a professional manufacturer of wires and cables. After more than ten years of development, the wires and cables have reached international standards and have been unanimously praised by customers at home and abroad. Sales engineer Mr. Zhu is committed to providing customers with high-quality and affordable cables. Technical support: 18817228506 QQ 350701807 Tel: 021-68182666-640 Fax: 021-68182790
