Combustibility Test Furnace for Building Materials Manufacturer JCK-2 Type Combustibility Test Furnace for Building Materials

Construction Materials-Other Building Materials
Expand

Product Content

Category
Construction Materials-Other Building Materials

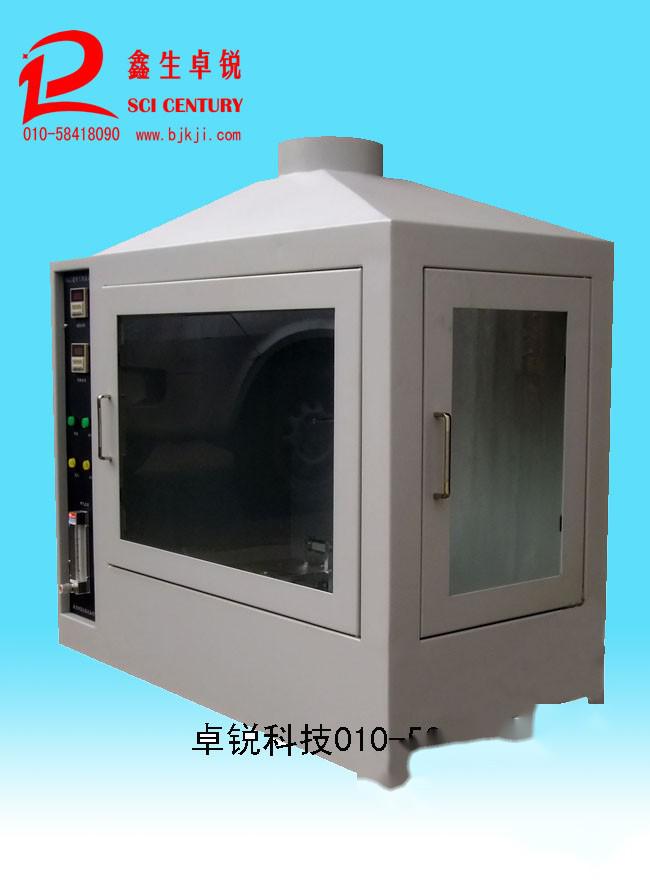

JCK-2 Type Building Material Combustibility Test Furnace (All Stainless Steel Version)
Introduction to the All Stainless Steel Version of JCK-2 Type Building Material Combustibility Test Furnace:

The all stainless steel version of the building material combustibility test furnace was newly launched by Beijing Xingsheng Zhuorui Technology in July 2013 at the request of users. The first unit is currently in use at the Quality and Safety Supervision Station of Construction Projects in Panzhihua City, Sichuan Province.
Principle and Application of the All Stainless Steel Version of JCK-2 Type Building Material Combustibility Test Furnace

The all stainless steel version of the building material combustibility test furnace utilizes the German Kleinbrenner principle to determine the combustion performance of B-class building materials under a small flame impact in a vertical direction. This instrument is used to determine whether building materials have combustibility under specified conditions by directly impacting vertically placed samples with a small flame in a normal combustion environment.

Features of the All Stainless Steel Version of JCK-2 Type Building Material Combustibility Test Furnace:

- Excellent ergonomic operation design;

- Knob handle, automatically retracts and locks;

- Full mirror stainless steel housing, resistant to heat, high temperatures, and low temperatures, making it suitable for relatively harsh testing environments;

- Two tempered glass doors for dual-angle observation during testing;

- Two different specifications of nickel-plated sample clamps;

- Self-modified handheld igniter for durable combustion;

- Flame height adjustable through a rotor flowmeter;

- Flame measurement scale;

- High degree of automation, precise experimental data, and easy operation;


Basic Parameters of the All Stainless Steel Version of JCK-2 Type Building Material Combustibility Test Furnace:

- Box dimensions: Width 710 × Depth 400 × Height 600 mm; Material: 1.5 mm full mirror stainless steel

- The bottom of the box features a flat natural ventilation opening composed of 5 cm × 5 cm square ventilation openings to maintain smooth airflow.

Working Environment and Main Technical Indicators of the All Stainless Steel Version of JCK-2 Type Building Material Combustibility Test Furnace:

1. Ambient temperature: 15℃ ~ 25℃;

2. Relative humidity: ≤85%;

3. Power supply voltage and power: 220V 50HZ 100W;

4. Gas source: Liquefied petroleum gas;

5. Bunsen burner flame application time for samples: 15s;

6. Microcontroller control, digital display.

7. Burner aperture is Φ0.17mm, Bunsen burner flame length 20mm ± 2mm, the burner can tilt 45 degrees.

8. Flame application time for samples (1s-99s) ± 0.5s, adjustable, accuracy ± 0.2s.

9. Combustible gas source: Propane with purity over 95%.

10. High-pressure electronic ignition system with servo motor control, automatic ignition, and reset;

Accessories of the All Stainless Steel Version of JCK-2 Type Building Material Combustibility Test Furnace:

- 2 stainless steel combustion positioning devices;

- 1 set of melting drop product sample clamps (Length 250-10 mm, Width 180-10 mm);

- 1 set of standard sample clamps (Length 250-10 mm × Width 90-10 mm);

- 1 sample clamp;

- 1 power cable;

- 1 piece of 0.5A fuse;

- 2 rubber hoses;

- JCK-2 Type Building Material Combustibility Test Furnace sample preparation electric heating wire cutting machine.

The All Stainless Steel Version of JCK-2 Type Building Material Combustibility Test Furnace complies with the following standards:

- GB/T8626 "Test Methods for Combustibility of Building Materials";

- ISO11925-2:2002 E "Test Methods for Combustibility of Building Materials";

- GBT 8626-2007 "Test Methods for Combustibility of Building Materials". Download GBT 8626-2007, please click here.
