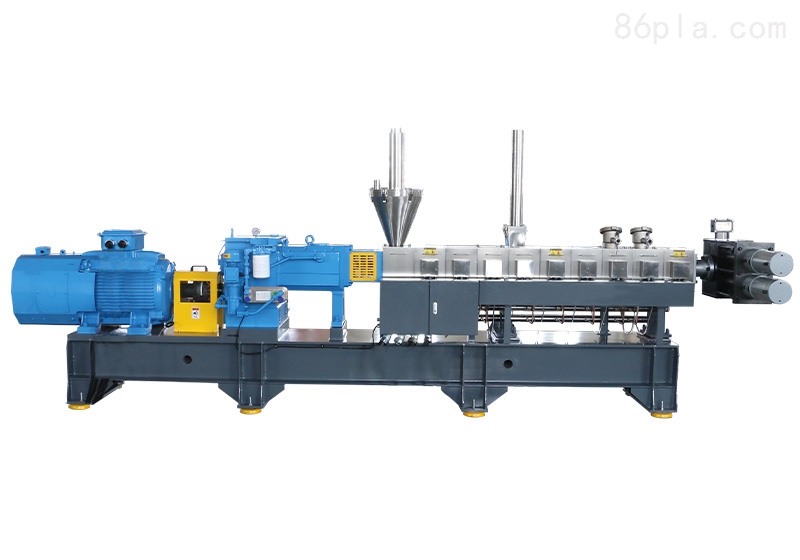

Brief Description:The color masterbatch wood-plastic granulator integrates mixing, conveying, feeding, and extrusion into one production line, achieving automated continuous operation with high production efficiency.
Color Masterbatch Wood-Plastic Pelletizing Machine Precautions:
1. Before starting, heat for about 40 to 50 minutes to raise the temperature to a state where it is easier to pull the motor's V-belt by hand. Pull in the normal working direction 8 to 10 times, then continue heating for about 10 more minutes; heating should be continued at this time because additional heat is needed for normal production. Adjust the temperature according to the different properties of the plastic.
2. Before the equipment is put into normal operation, the mechanical temperature should be kept stable and should not be maintained at either a high or low level.
3. If the feeding is uniform, the machine's feeding speed should match the delivery speed; otherwise, it will directly affect the quality and output of the plastic pellets.
4. Before stopping, all the plastic inside the granulator screw must be emptied and cleaned.
5. When the main unit is shut down, the power supply should be disconnected, and before the next use, the nozzle and line plug must be disassembled and preheated separately.
Color masterbatch wood-plastic granulator maintenance and care:
1. First, the equipment should be placed in a well-ventilated area to ensure that the heat generated by the motor can dissipate, thereby extending its lifespan.
2. Lubricating oil should be regularly added to the bearings to ensure lubrication between them.
3. Regularly check the tool screws; after 1 hour of use, tighten the screws of the moving and fixed blades with a tool to enhance the fixation between the blades and the blade holder.
4. To ensure the sharpness of the cutting edge, the tool should be checked regularly to maintain its sharpness and reduce unnecessary damage to other components caused by a dull or chipped blade.
5. When replacing the blades, the gap between the moving blade and the fixed blade: for machines over 20HP, the thinner the recycled material, the larger the gap can be appropriately adjusted.
6. Before the second start, the remaining debris in the machine room should be cleared to reduce the starting resistance.
7. The inertia cover and pulley cover should be opened regularly to clean the dust outlet below the flange, as powder from the pelletizing chamber can enter the shaft bearings.
8. The recycled stock resin pelletizing machine should be well grounded.
