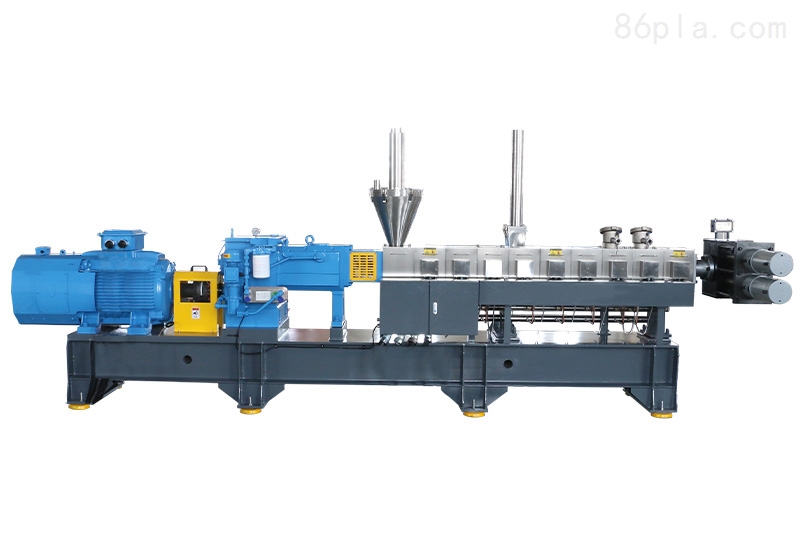

Brief description:Color masterbatch granulator is mainly used for coloring polymer materials, primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid color masterbatch.
Color masterbatch pelletizing machinePrecautions
1. Always pay attention to the changes in the machine body temperature. When the strands do not stick to a clean hand, the temperature should be increased immediately until the strands stick to the hand, which is considered normal.
2. If the bearing part of the gearbox is overheating or accompanied by noise, the machine should be stopped for timely maintenance, and lubricating oil should be replenished.
3. If the bearing areas at both ends of the main unit's bearing housing become hot to the touch or produce unusual noises, stop the machine for inspection and apply grease. During normal operation, the bearing housing should be greased every 5-6 days.Grease once.
4. Pay attention to understanding the operating patterns of the machine; for example, the temperature and rotation speed. Adjustments should be made promptly based on the circumstances.
5. When the machine body operates unstably, attention should be paid to checking whether the coupling fit clearance is too tight, and it should be adjusted to be looser in time.
Color masterbatch pelletizerMaintenance:
1. The plastic pelletizing machine should first be placed in a well-ventilated location to ensure that the heat generated by the motor can dissipate, thereby extending its lifespan.
2. Observe the gear oil in the gearbox daily, and the oil level should be maintained at the midpoint of the oil window. Lubricating oil should be regularly added to the bearings to ensure lubrication between them; check the cooling water of the gearbox daily, and during operation, the cooling water should be in a slow-flowing state (the flow rate must not be too fast or the water pressure too high, to avoid detaching the copper weld of the cooling pipe inside the box).
3. Regularly check the screws; after using a new plastic pelletizing machine for 1 hour, use tools to tighten the screws of the moving and fixed blades, enhancing the fixation between the blades and the blade holder.
4. To ensure the sharpness of the cutting edge, the knife should be checked regularly to maintain its sharpness, thereby reducing unnecessary damage to other components caused by a dull or defective blade.
5. When replacing the blades, the gap between the moving blade and the fixed blade: for 20HP and above, the thinner the recycled material, the larger the gap can be appropriately adjusted.
6. Before the second start, the remaining debris in the machine room should be cleared to reduce the starting resistance;
7. The inertia cover and pulley cover should be opened regularly to clean the dust outlet below the flange, as powder from the plastic pelletizing machine room can enter the shaft bearings.
8. The plastic pelletizing machine should be kept well grounded.
