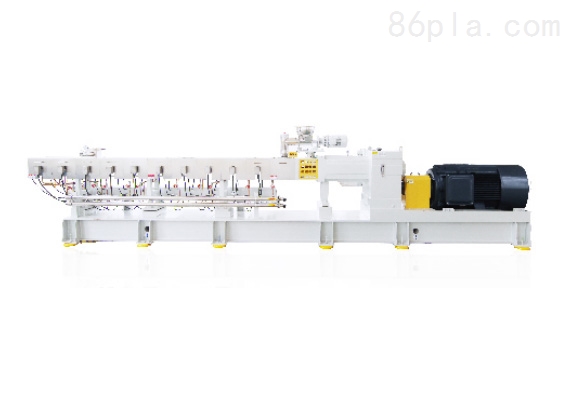

Brief Description:The co-rotating twin-screw extruder consists of several parts including the drive unit, feeding device, barrel, and screws. The functions of each component are similar to those in a single-screw extruder, as shown in Figure 1. The difference from a single-screw extruder is that the twin-screw extruder has two parallel screws placed within a barrel with an "∞"-shaped cross-section.
Co-rotating Screw ExtruderMaintenance:
1. The extruder equipment should be placed in a well-ventilated area to ensure the dissipation of motor heat and prolong its lifespan; the machine should be properly grounded.
2. Regularly check the screws of the cutting tools. After using a new machine for 1 hour, use tools to tighten the screws of the moving and fixed blades, as well as those securing the blade holder. Lubricating oil should be regularly added to the bearings to ensure proper lubrication. To maintain the sharpness of the cutting edges, frequently inspect the cutting tools to ensure their sharpness, reducing unnecessary damage to other components caused by dull or damaged blades. Regularly check if the belt is loose and adjust it in time.
3. Restart - Before the second start of the reinforced blades, the remaining scraps in the machine chamber should be cleared to reduce the starting resistance. Regularly open the inertia cover and pulley cover to clean the dust outlet below the flange, as the powder material discharged from the crusher chamber may enter the rotating shaft bearings.
4. Replacement of parts - When replacing the cutting tools, the gap between the moving knife and the stationary knife: 0.8MM is optimal for shredders above 20HP, and 0.5MM is optimal for shredders below 20HP. The thinner the recycled material, the larger the gap can be appropriately adjusted.
Co-rotating Screw ExtruderMain motor cannot start
1. Cause of occurrence:
Start-up procedure error.
(2) The main motor thread has issues, communication fault
(3) The interlock device associated with the main motor is activated.
2. Treatment Methods:
(1) Check the procedure and restart the machine in the correct sequence.
(2) Check the main motor circuit.
(3) Check if the lubricating oil pump has started, and inspect the status of the interlock devices related to the main motor; if the oil pump is not on, the motor cannot be started.
