Brief Description:Twin-screw granulation equipment is mainly used for coloring polymer materials, primarily divided into black masterbatch, white masterbatch, color masterbatch, and liquid color masterbatch.

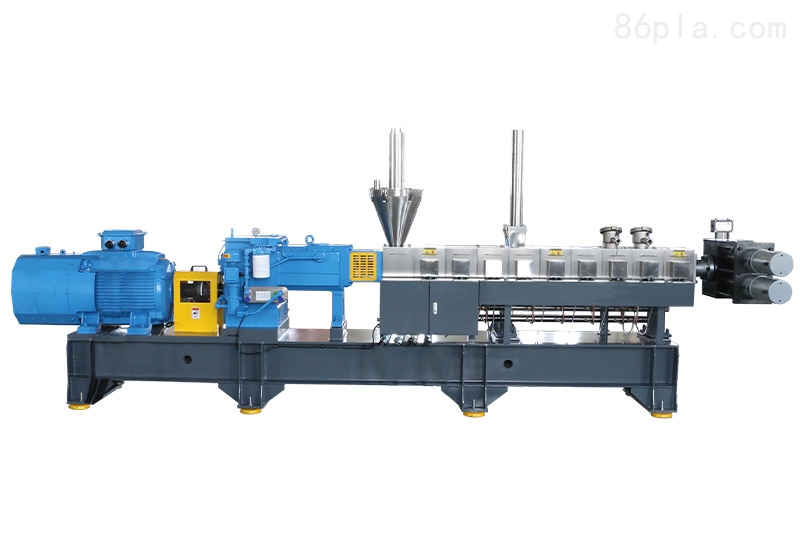

Twin-screw granulation equipmentIntroduction:
This machine is mainly used for coloring polymer materials, primarily including black masterbatch, white masterbatch, color masterbatch, and liquid color masterbatch.
Features:
This production line integrates mixing, conveying, feeding, and extrusion, achieving automated continuous operation with high production efficiency.
2. Compact structure, small footprint and space, can be installed flat.
3. The production process is divided into segments with closed-loop temperature control, where the internal mixer, feeder, and extruder each have their own heating and cooling systems, controlling their respective temperatures according to the process requirements.
4. The feeding mechanism adopts a dual-propeller design, with strong material intake capability. It is particularly suitable for extrusion and pelletizing of lump materials directly mixed by an internal mixer.
5. The barrel and screw are both made of high-quality 38CrMoAIA alloy steel, which has been nitrided for high hardness, wear resistance, and corrosion resistance.
6. The die head adopts a manual screen changing or quick non-stop screen changing mechanism to improve production efficiency.
7. The electrical control system adopts advanced PLC control technology, combined with multiple inverters, enabling high-precision, wide-range speed adjustment for feeding, extrusion, cutting, and other multi-machine operations according to process requirements. It also features full-process interlocking, audio-visual fault alarms, and other control functions, ensuring a complete and reliable system.
Precautions for Twin-screw Pelletizing Equipment:
1. Always pay attention to the changes in the body temperature. When the strands no longer stick to a clean hand, the temperature should be immediately increased until the strands stick to the hand, which is considered normal.
2. If the bearing part of the gearbox feels hot or is accompanied by noise, it should be inspected and lubricated promptly.
3. If the bearing areas at both ends of the main unit's bearing housing become hot to the touch or produce unusual noises, stop the machine for inspection and apply grease. During normal operation, add grease to the bearing housing every 5-6 days.
4. Pay attention to understanding the operating patterns of the machine; for example: the temperature and rotation speed. Adjustments can be made promptly according to the situation.
5. When the machine body operates unstably, attention should be paid to checking whether the coupling fit clearance is too tight, and it should be adjusted looser in time.
