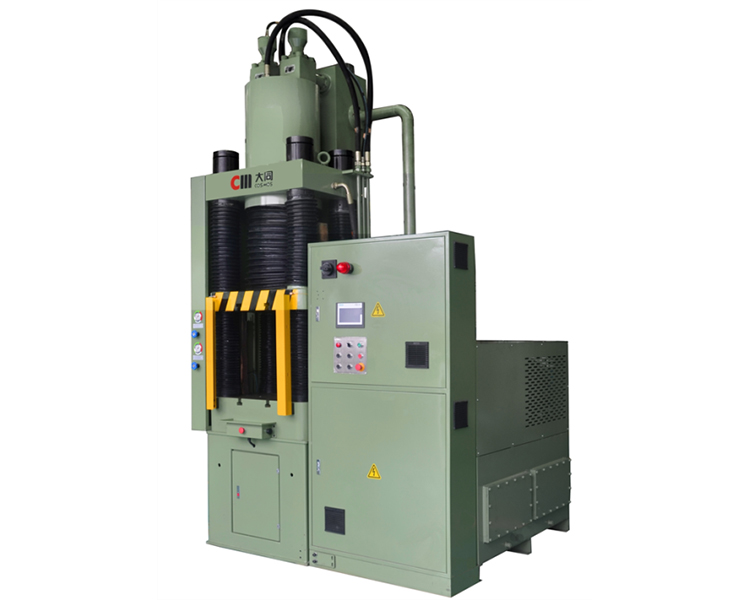

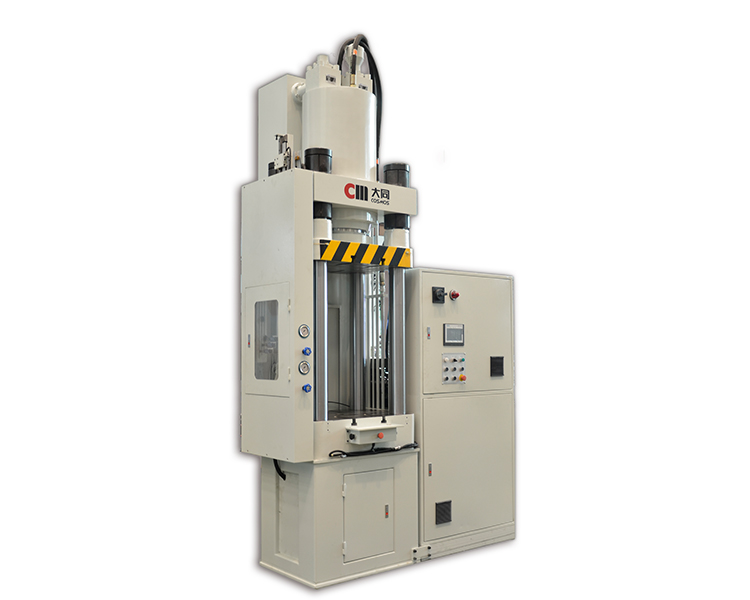

CMLJ Series - Cold Extrusion Four-Column Servo Hydraulic Press

Plastic Auxiliary Machinery-Other Plastic Auxiliary Machinery-Hydraulic Press

Expand

Product Content

Category

Plastic Auxiliary Machinery-Other Plastic Auxiliary Machinery-Hydraulic Press

Series

大同油压

Accuracy Monitoring: Utilizing grating scales and pressure sensors for position and pressure monitoring to enhance pressing accuracy.
Position Accuracy: The main cylinder position repeatability accuracy reaches ±0.01mm, effectively controlling the scrap generated due to machine tool precision issues.
Pressure Accuracy: The repeatability accuracy of the main cylinder pressure reaches ±2%, effectively controlling the scrap generated due to machine tool precision issues.
Energy-saving effect: High-power motors are used to meet the requirements of high-speed and high-pressure processes. Adopting servo motor drives can achieve the best energy-saving effect, with energy savings reaching 30-50%.
Silent operation: The servo motor drive system can meet the varying requirements for speed and pressure in different processes, and operates more smoothly and quietly.
